AP6/AP8 SERIES TRASH PUMPS • OPERATION AND PARTS MANUAL — REV. #0 (06/11/14) — PAGE 61
The leaf suspension springs and associated components
(Figure 58) should be visually inspected every 6,000
miles for signs of excessive wear, elongation of bolt holes,
and loosening of fasteners. Replace all damaged parts
(suspension) immediately.

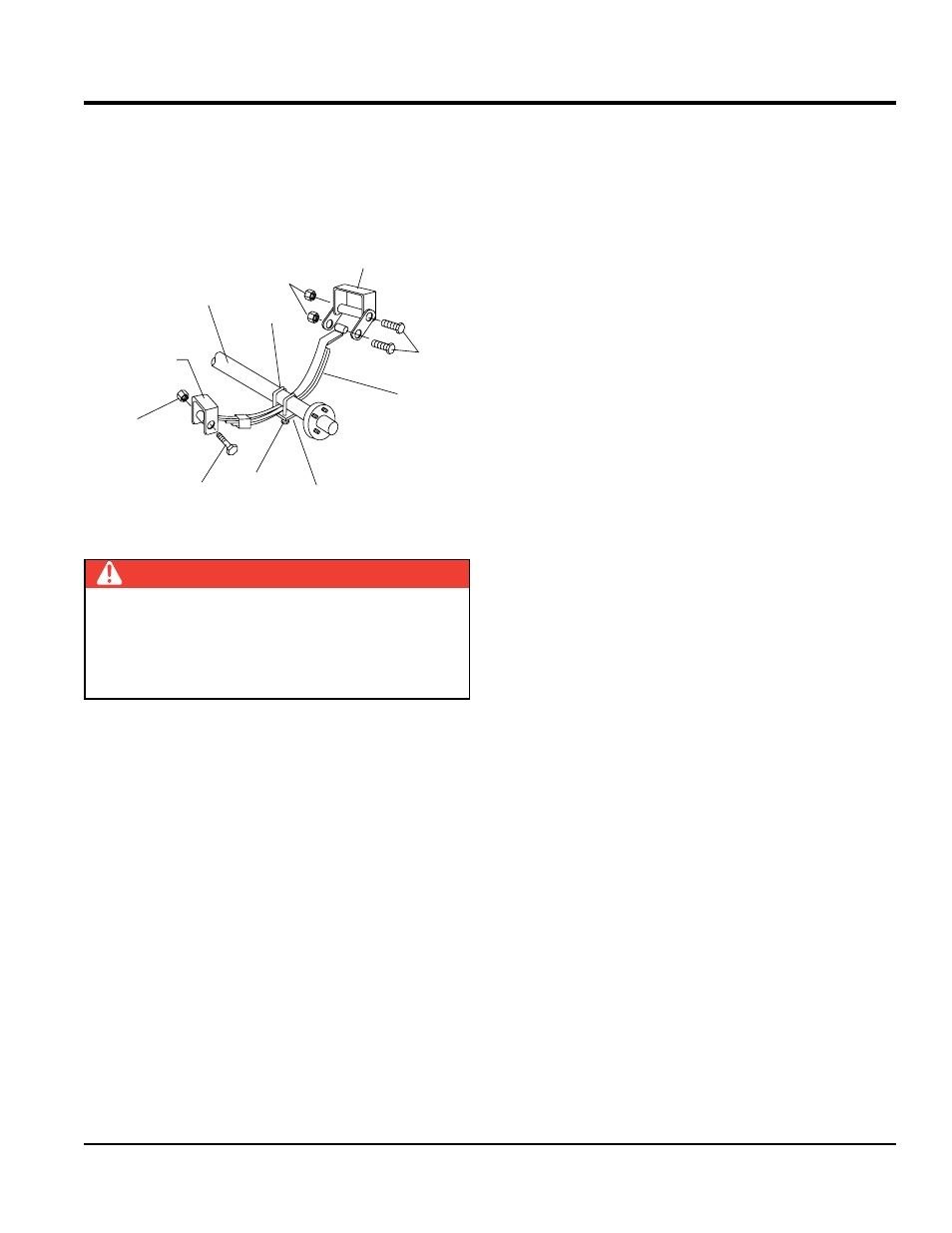

Figure 58. Leaf Suspension Components
U-BOLT
LEAF
SUSPENSION
TIE PLATE
AXLE
U-BOLT
LOCKING
NUT
SHACKLE
BOLTS
FRONT
HANGER BOLT
FRONT
HANGER NUT
SHACKLE
NUTS
SHACKLE SUPPORT
BRACKET IS WELDED
TO FRAME
HANGER SUPPORT
BRACKET IS WELDED
TO FRAME
DANGER
Worn or broken suspension parts can cause loss of
control, damage to equipment and severe bodily injury,
even death!
Check suspension regularly.
MAINTENANCE (TRAILER)
