INSPECTION/SETUP
MALE FLANGE
FEMALE FLANGE
(THREADED)
GALVANIZED MALE
(THREADED)
INTAKE HOSE
FEMALE FLANGE
FITTING
FITTING
DISCHARGE HOSE
DISCHARGE SIDE
SUCTION SIDE
STRAINER
CHOCK BLOCK
4. Shorter suction lift and suction hose length will produce
better performance.
5. Remember suction hoses must be rigid enough not to
collapse when the pump is in operation.
6. Make sure the suction strainer is clean and securely
attached to the water end of the suction hose. The
strainer is designed to protect the pump by preventing
large objects from being pulled into the pump. Failure
to use a strainer could cause damage to the pump,
impeller, pump shaft, pump bearings, or wear plate.
7. If a strainer becomes clogged with debris, clean the
strainer.
CAUTION - Strainer Placement
The strainer should be positioned so it will remain
completely under water. Running the pump with the
strainer above water for long periods can damage the
pump.
NOTICE
Suction and discharge hoses are available from
Multiquip. Contact your nearest dealer for more
information.
DANGER - Flammable Fluids
DO NOT pump flammable fluids, corrosive chemicals or
fluids containing toxic substances. These fluids can create
potentially dangerous health and environmental hazards.
Contact local authorities for assistance.

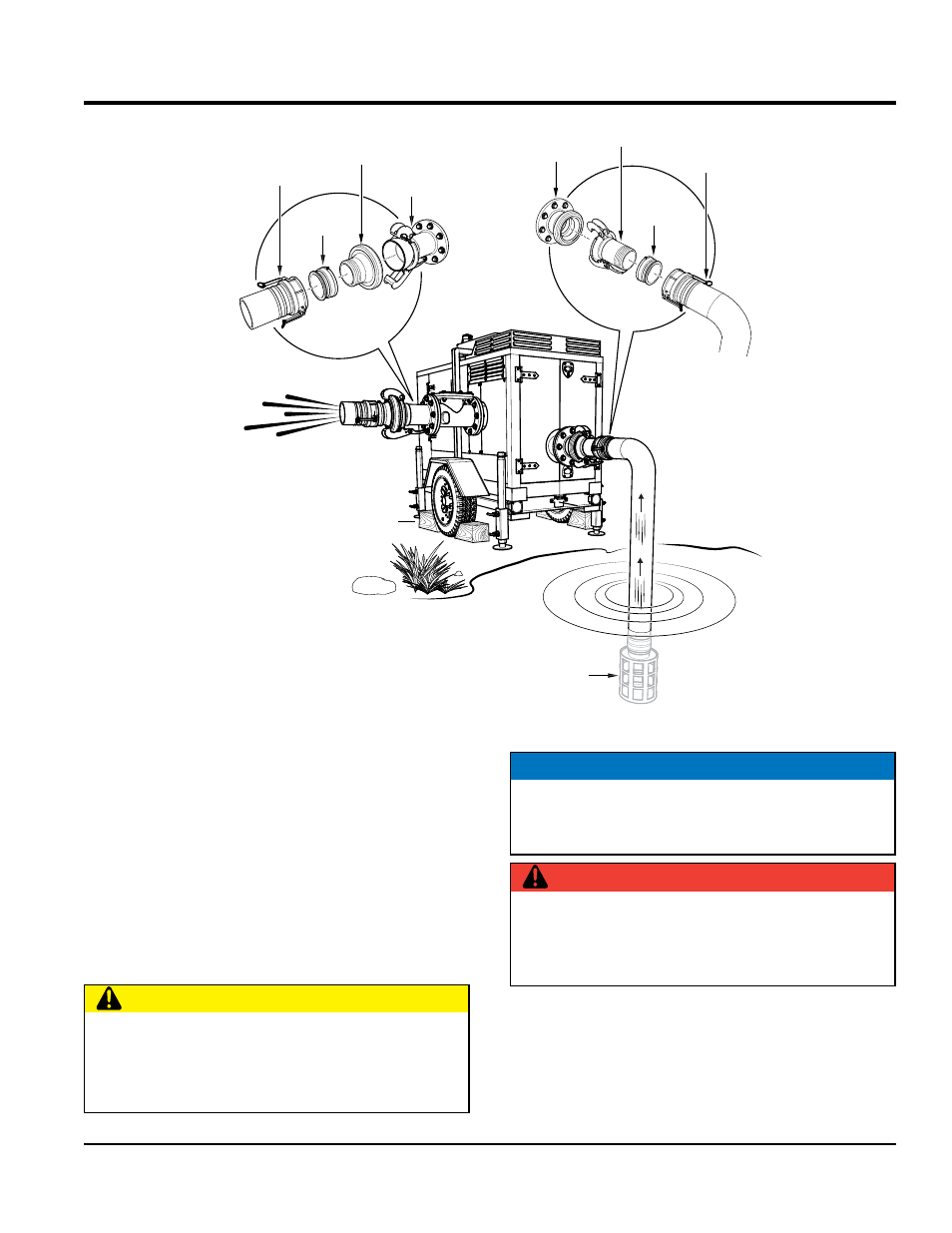

Figure 21. Hose Connections
