PUMP COMPONENTS (AP6/AP8)
15. Air Separator Vacuum Gauge – 0 to 30 in. Hg
(0~762 mm Hg) vacuum gauge that indicates vacuum
pressure. Under normal operating conditions this gauge
should read between 24~25 in. Hg (610~635 mm Hg).
16. Control Box – Displays vital engine parameters via
gauges and LEDs. Included gauges are tachometer,
temperature, battery voltage, hour meter, oil pressure.
Engine fault LEDs include battery discharge, low oil
pressure, high temperature, alternator failure and
V-belt failure.
17. Document Box – Contains all documentation relating
to the pump or engine.
18. Couplers – Trailer is available with either a 2-5/16 inch
ball coupler or a 3-inch pintel coupler.
19. Compressor – Single cylinder, water cooled, gear
driven 8.5 CFM compressor that is an integral
component of the automatic priming system.
20. DOT Approved Trailer – Industrial DOT/NHTSA
certified trailer. Includes break-away electric brakes,
lashing rings, stabilizer stands and includes fuel cell.
21. Safety Chains – Heavy duty safety tow chains with
locking coupler. Always cross chains when connecting
to the ow vehicle.
22. Top-Wind Jack – Levels trailer tongue when
connecting to a tow vehicle.
23. Fuel Cap/Fuel Filler Port – Lockable, EPA approved
fuel cap with filtration screen and security chain. Use
only No. 2 diesel fuel when replenishing fuel.
24. Venturi Assembly – Facilitates the creation of
24~25 inches (610~635 mm) of vacuum and works
in conjunction with the air separator chamber for the
automatic priming process.
25. Fuel Tanks – The AP6 pump is available with a 50
gallon (190 liters) fuel tank, while the AP8 is equipped
with a 55 gallon fuel tank (208 liters). Both fuel tanks
are constructed of heavy gauge steel.
26. Tailights – ALWAYS make sure lights are working
correctly before towing.
27. Pump End – Pump casing is 3/4-inch thick class 30
cast iron with built in volute. Pressure rated up to 195
PSI. Casing includes ductile iron high efficiency closed
impeller and 416 stainless steel shaft sleeve.
28. License Plate Light – ALWAYS make sure light is
working correctly before towing at night.
29. Strainer – Always attach a strainer to bottom side of
the suction hose to prevent large objects and debris
from entering the pump. Strainer should be positioned
so that it will remain completely under water. Running
the pump with the strainer above water for long periods
can damage pump.
15
28
27
26
23
22
18
21
20
17
19
25 24
16
29

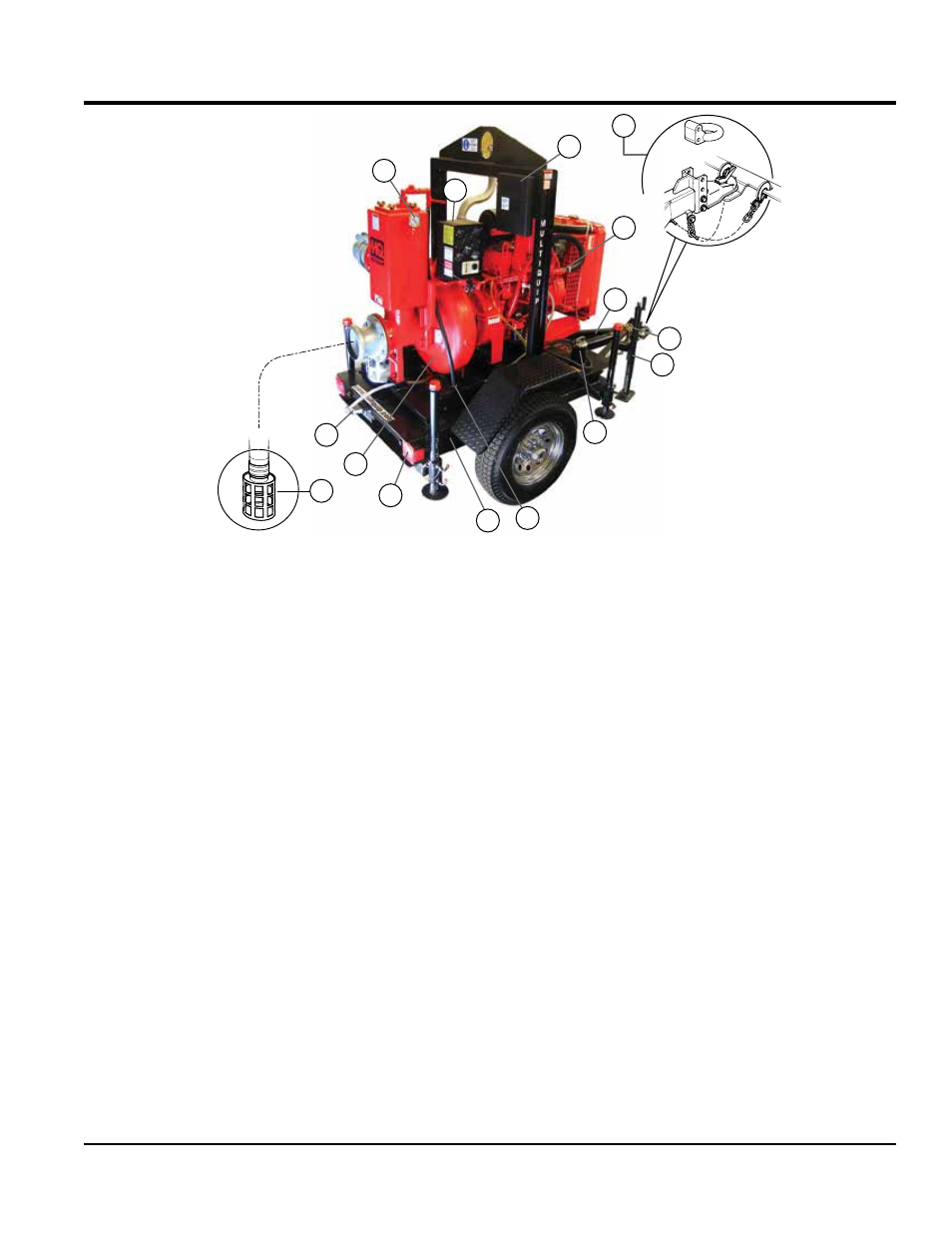

Figure 6. Pump Components
