PAGE 16 — AP6/AP8 SERIES TRASH PUMPS • OPERATION AND PARTS MANUAL — REV. #0 (06/11/14)
Table 5. Pump Dimensions (Canopy)
MODEL AP6 AP8
REFERENCE
LETTER
DESCRIPTION DIMENSIONS: IN. (MM) DIMENSIONS: IN. (MM)
A HEIGHT 83 (2,108) 90 (2,286)
B WIDTH 65 (1,651) 65 (1,651)
C
LENGTH
(TONGUE EXTENDED)
118 (2,997) 118 (2,997)
D SHIPPING LENGTH 71 (1,803) 71 (1,803)
E SUCTION HEIGHT 38 (965) 39 (991)
F DISCHARGE HEIGHT 48 (1,219) 48 (1,219)
G COUPLER HEIGHT 18 (457) 18 (457)
PUMP DIMENSIONS (CANOPY)

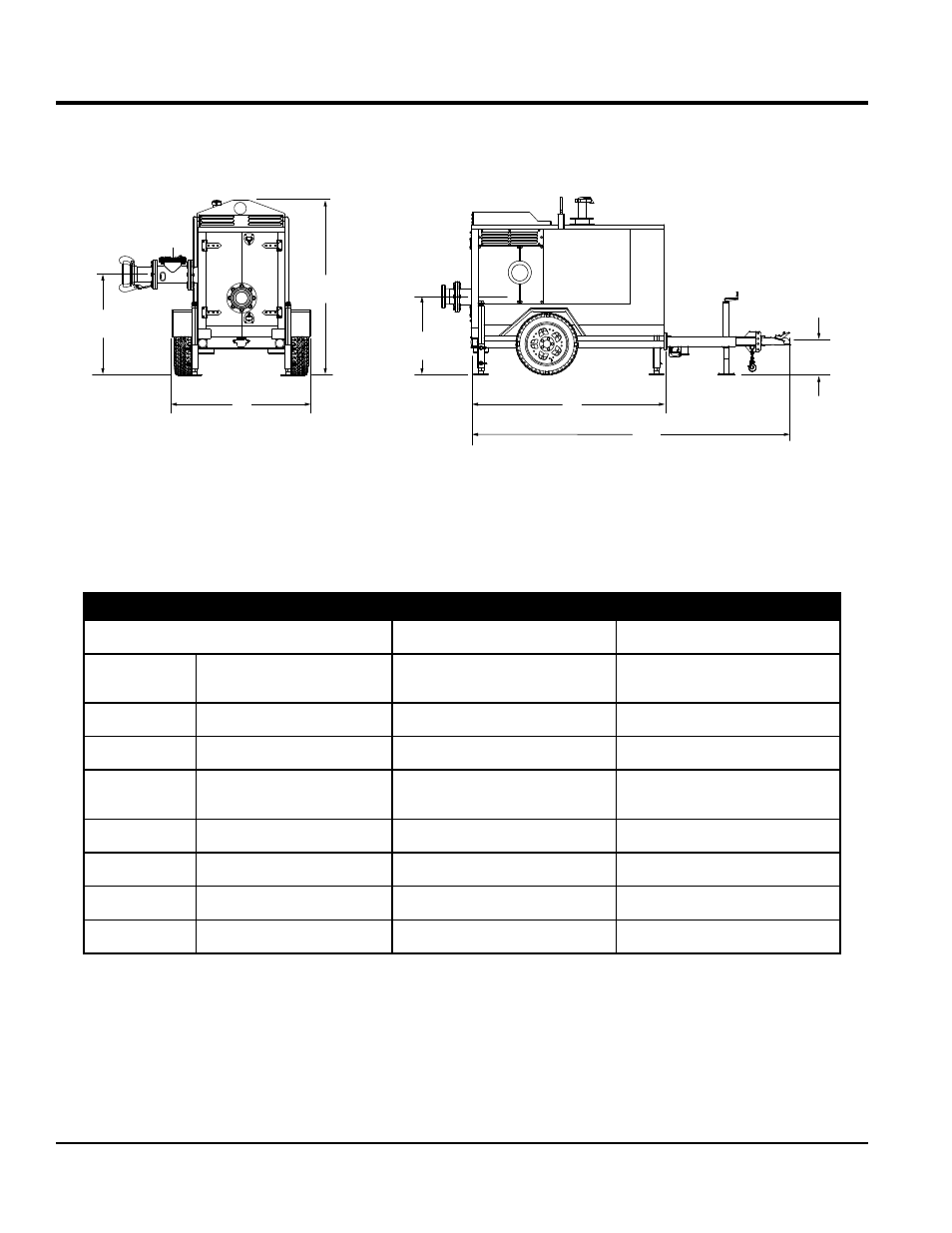

Figure 1. Pump Dimensions (Canopy)
F
E
A
B D
G
C
