Fertilizer
GAUGE WHEEL DEPTH ADJUSTMENT

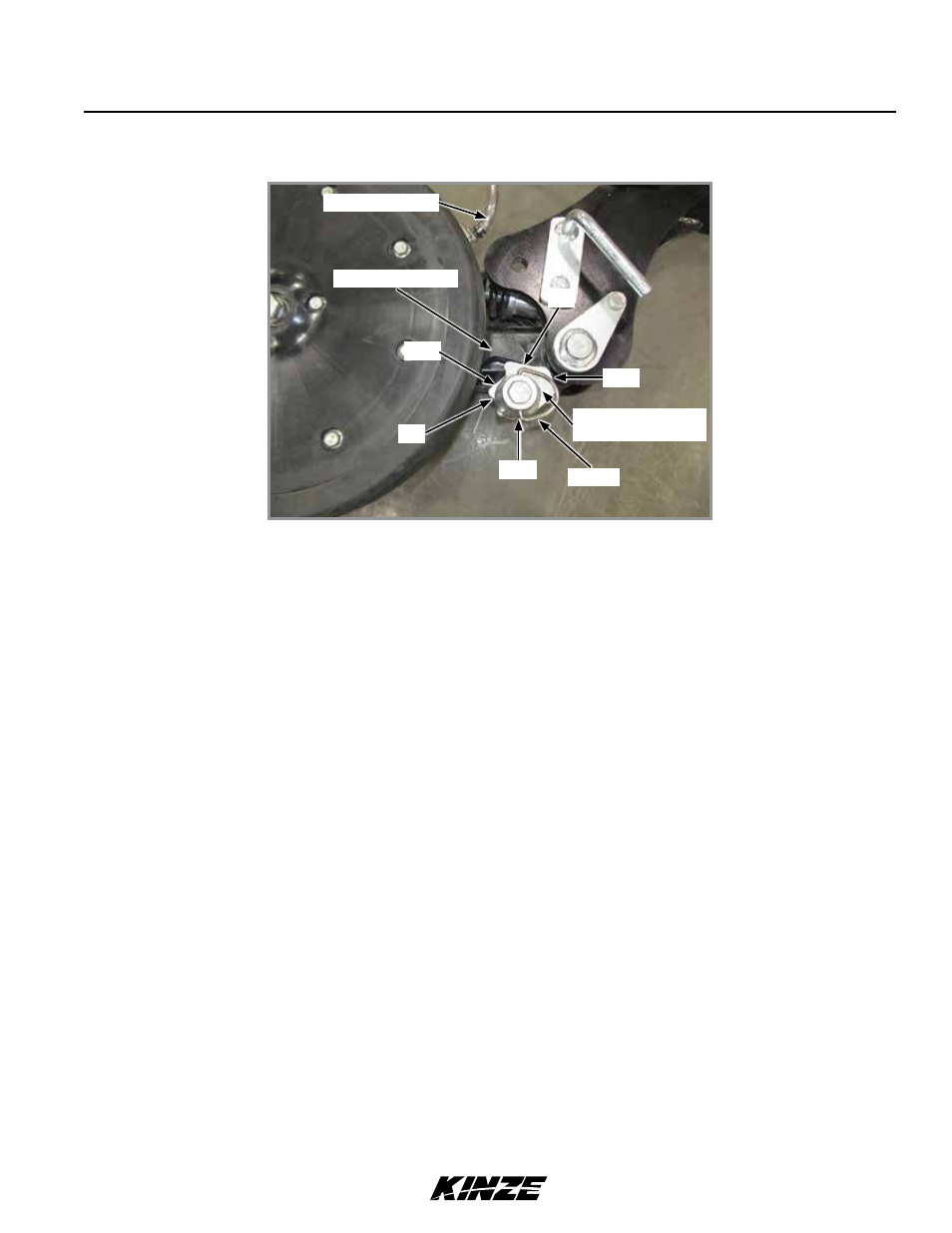

Rotate the depth adjustment cam to adjust depth of fertilizer placement into the soil.
Pull out the D-ring handle and rotate the depth adjustment cam in 60° increments to achieve desired depths as shown.
The gauge wheel arm will act as a stop on the depth adjustment cam.
There are five depths available, with 21/2" as the shallowest option and 41/2" as the deepest.
D-ring
Depth Adjustment
Cam
Gauge Wheel Arm
Liquid Drop Tube
41/2"
31/2"
4"
21/2"
3"
