M0247-01 Model 4900
2-26 Rev. 5/14
TM
Machine Operation
5. Operate the proper hydraulic tractor control and
press and hold the ROTATE AXLE button on your
ISOBUS monitor to raise transport axle to either
transport height, or if equipped with flip axle, to the
rest position as shown below.
6. Operate the proper hydraulic tractor control and press
and hold the WING WHEEL LIFT button on your
ISOBUS monitor to raise wing wheels into transport
position.

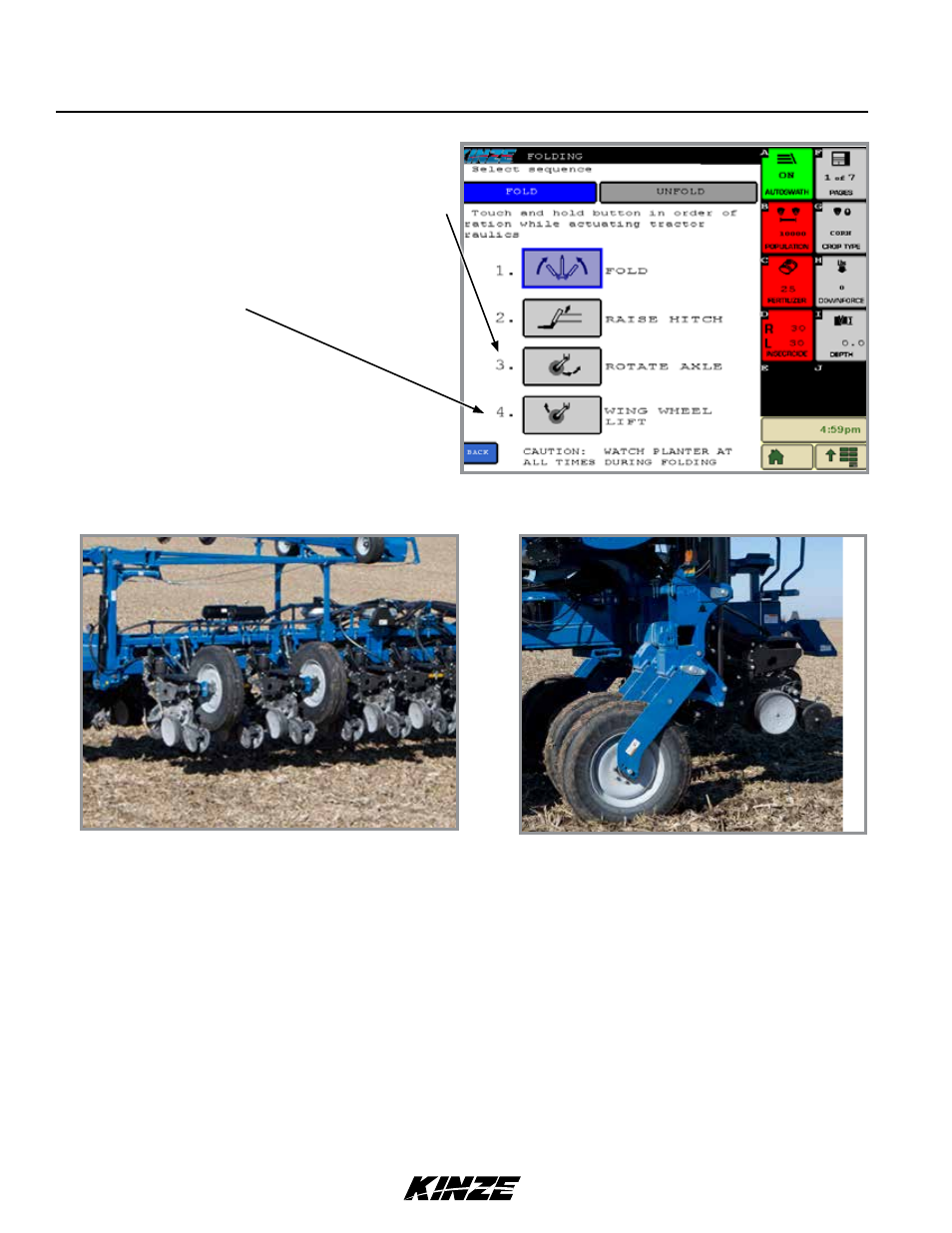

ISObUS Monitor Fold Screen
Flip Axle in Rest Position Wing Wheels in Transport Position
