Kinze 4900 Front Folding Planter Rev. 5/14 - Manual (Page 111)

TM
Model 4900 M0247-01
Rev. 5/14 6-29
Lubrication and Maintenance

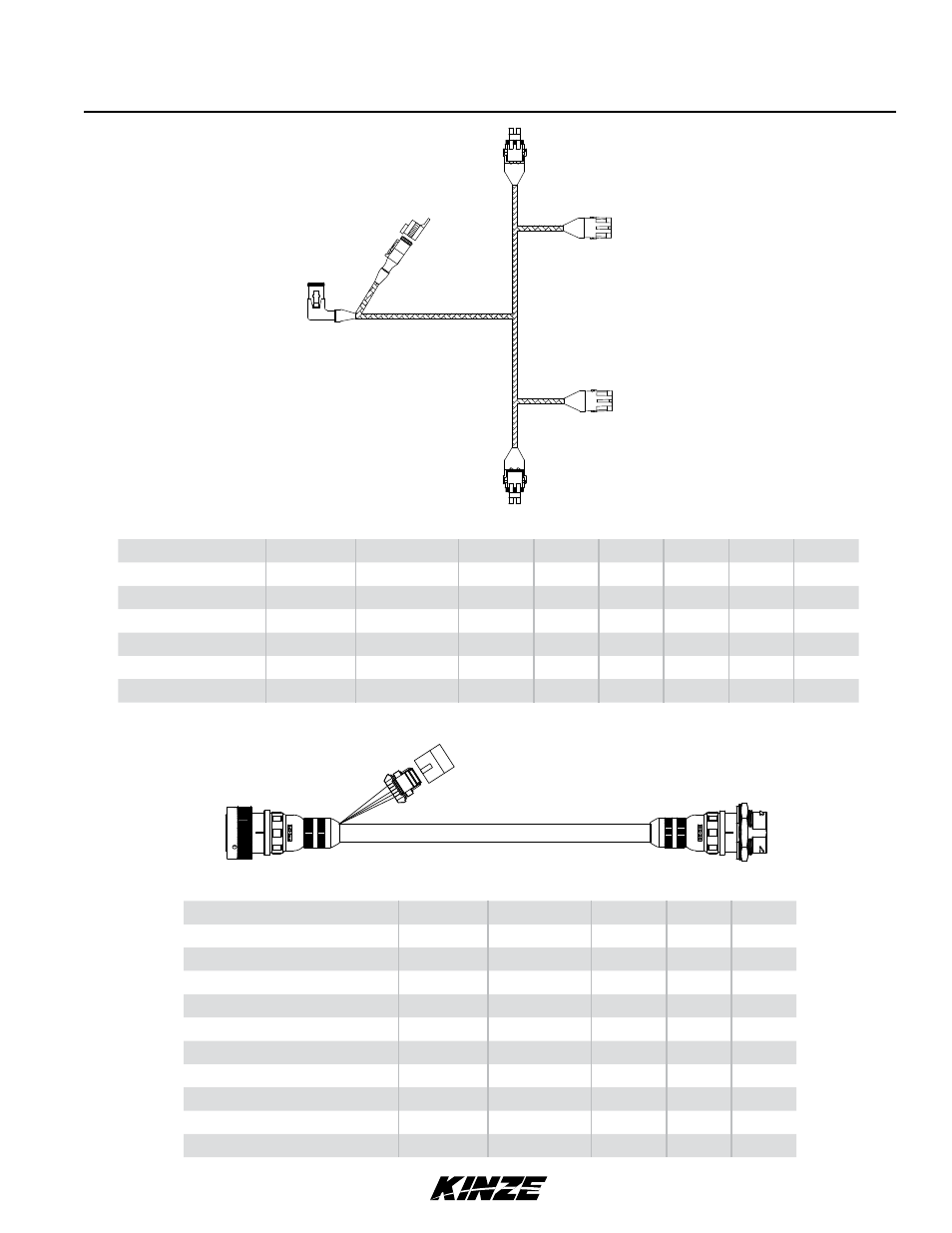

LIGHTS CAbLE
Auxiliary (AUX)
Left Flasher (LF)
Right Flasher (RF)
Work Lights (WL)
Left Tail Light (LT)
Right Tail Light (RT)
P/N A19397
Signal Wire Gauge Color AUX LF LT RF RT WL
Power WL(12V DC) 16 Red/White 1 - - - - 2
Power TL (12V DC) 16 Red/Black 2 B C B C -
Tail Light 16 Brown 8 - A - A -
Left Flasher 16 Yellow 6 A - - - -
Right Flasher 16 Green 7 - - A - -
Work Lights 16 Gray 4 - - - - 1
ISO PLANTER CAbLE
Master Module (MM) Tractor (TRC)
Terminating Bias Circuit (TBC)
P/N A19412
Signal Wire Gauge Color MM TBC TRC
ECU Power (12V DC) 14 Red/Orange B - B
Dirty Tractor Power (12V DC) 10 Red G - G
Solenoid Power (12V DC) 16 Red/Blue W - W
Dirty Tractor Ground 10 Black E - E
ECU Ground 14 Black/Orange D - D
ISOBUS Can High 18 TQ Yellow S E S
ISOBUS Can Low 18 TQ Green T F T
TBC Power 18 TQ Red - B J
TBC Ground 18 TQ Black - D K
Hitch 16 Blue/Red P - P
