Kinze 4900 Front Folding Planter Rev. 5/14 - Manual (Page 14)

M0247-01 Model 4900
2-2 Rev. 5/14
TM
Machine Operation

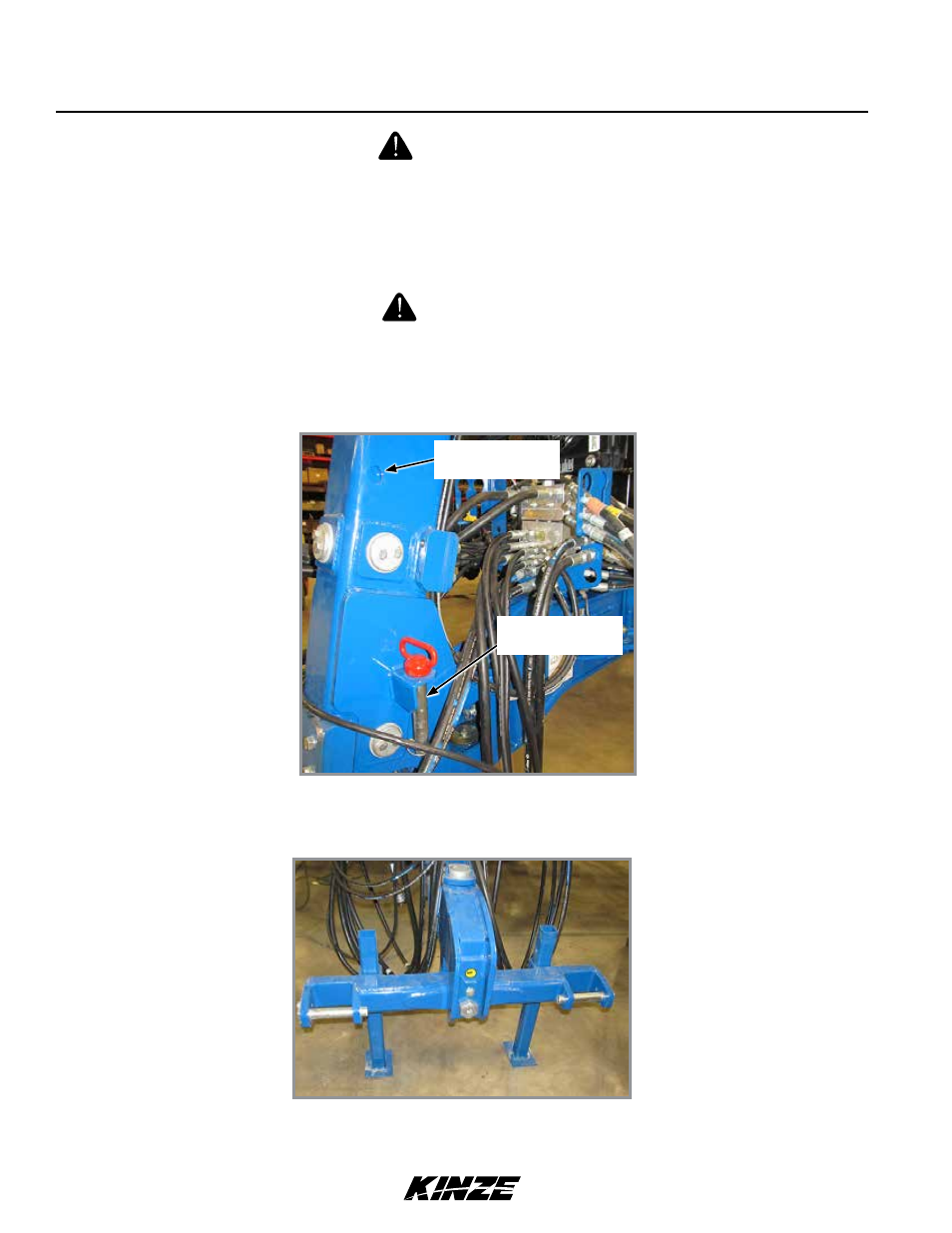

DRAWbAR HITCH LOCKUP (OPTION)
Place the drawbar hitch lockup pin in the hole shown above when machine is in operation.
WARNING
Uncontrolled movement of equipment can cause loss of control
and could result in death, serious injury, or damage to property and
equipment. Install all safety pins before transporting equipment.
WARNING
Planter hitch may raise uncontrollably during folding/unfolding and
can cause death, serious injury, or damage property and equipment.
DO NOT fold or unfold planter without planter attached to a tractor.
DO NOT unhitch planter from tractor unless fully folded for transport
or fully unfolded with planting units lowered to ground.
2-POINT HITCH OPTION
For transporting, store jacks on both sides of hitch. Secure in place with spring pin.
Place pin here
during transport
Jacks in Maintenance Position
Place pin here
during operation
