TM
Model 4900 M0247-01
Rev. 5/14 6-27
Lubrication and Maintenance

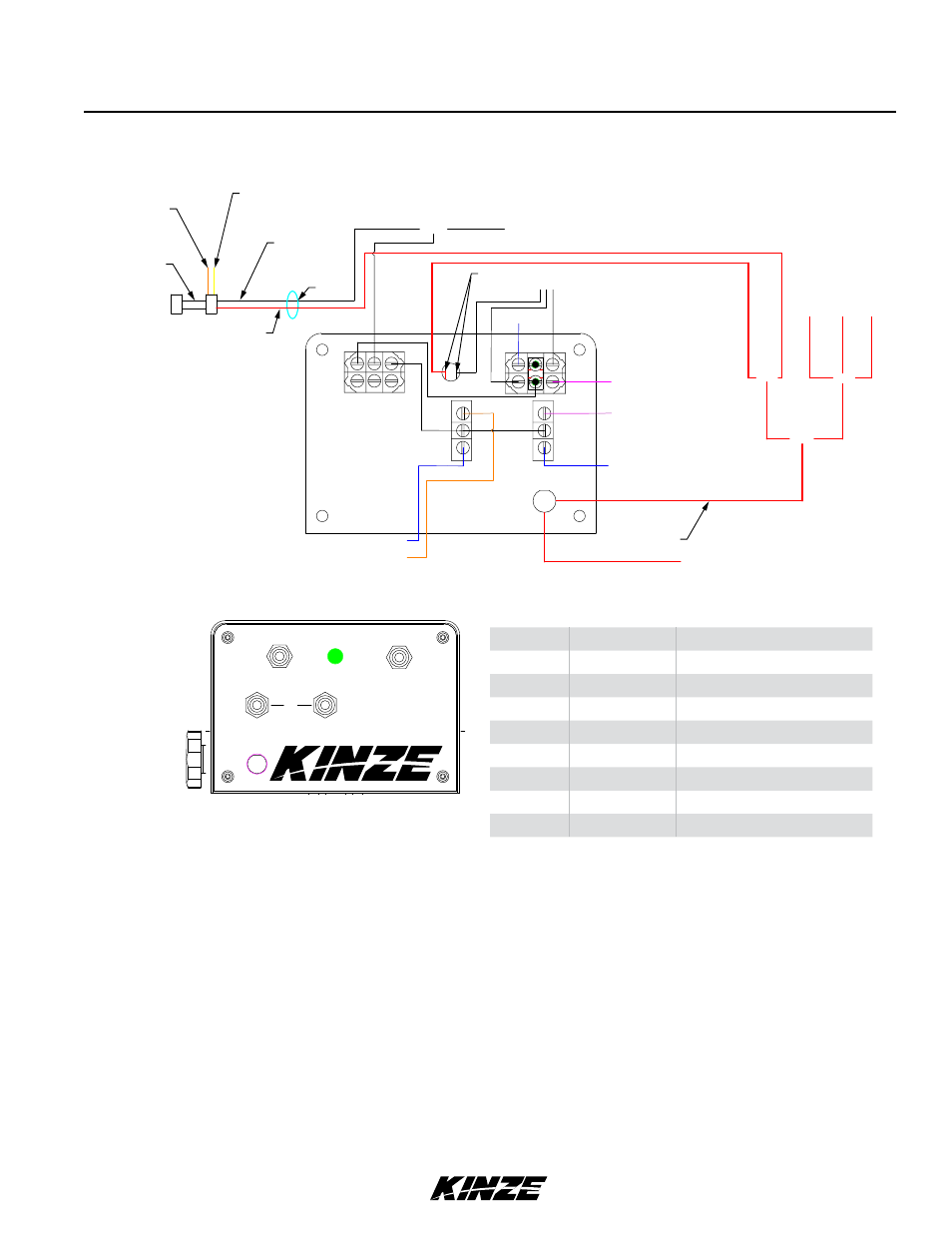

ELECTRICAL CONTROL CONSOLE SCHEMATIC
Splice
Markers
Plant/Fold
Axle/Wings Wheel Lift Fold/Hitch
15A
+12V from Battery
Black
(Transformer)
Red
(Transformer)
Yellow Backlit Panel
Orange
(Backlit Panel)
Push Button
Switch &
Transformer
Pin CB-J (Purple/Black)
Pin CB-K (Purple/Black)
Splice inside cable
Pin CB-L (Blue/Black)
Pin CB-M (Blue/Black)
Splice Inside Cable
Pin CB-A (Blue/Red)
Pin CB-H (Blue/Green)
Pin CB-X Blue
Pin CB-W (Purple)
Ground from Battery
(Black)
Splice
12 Ga. Jumper
Splice
Use Female Push-on Connectors
Pin
CB-E
Pin
CB-D
Pin
CB-B
Splice Splice
Splice
FOLD PLANT
MAIN
MARKERS
RIGHT LEFT
OFF
AXLE
WHEELS
FOLD
HITCH
OFF
15AMP
OFF
FUNCTION
TM
NOTE: Operating marker in either direction lights panel light.
Wire Hookup Chart
Gauge Color Function
10 Red Solenoid Power (12V)
10 Red Solenoid Power (12V)
10 Red Solenoid Power (12V)
16 Blue/Black Axle
16 Purple/Black Wing Wheels Right/Left
16 Purple Right Marker
16 Blue/Green Fold
16 Blue/Red Hitch
