Kinze 4900 Front Folding Planter Rev. 5/14 - Manual (Page 43)

TM
Model 4900 M0247-01
Rev. 5/14 2-31
Machine Operation
TM
MARKERS
LEFT
FUNCTION
RIGHT PLANT FOLD
FOLD
OFF
AXLE
OFF
OFF
HITCH
MAIN
WING
WHEELS
15 AMP

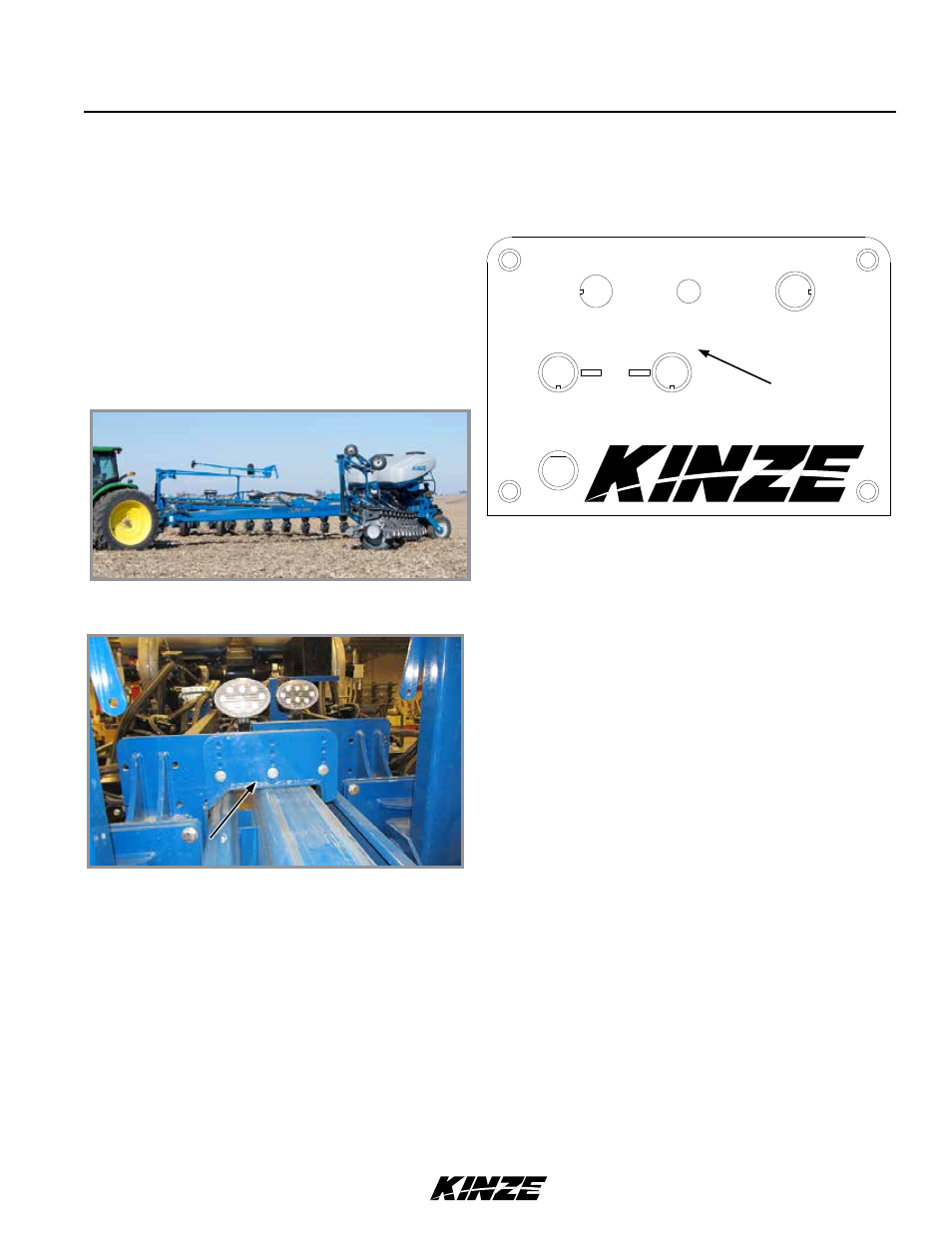

4. Operate the proper hydraulic tractor control and
press the FOLD switch up until 2 hooks are over the
top of the inner hitch.
5. Lift drawbar or 2-point hitch to lock wings into place
after folding.
Planter Folding
Wing Hook Locked
Control box
NOTICE
Folding planter without using tractor to assist may cause equipment damage especially in soft conditions
or when loaded with seed or fertilizer. Use tractor to reduce stress on frame, drive, and transport
components.
