Machine Operation
bULK FILL ENTRAINER ACCESS
1. Shut down bulk fill system.
2. Loosen wing nut and turn retainer holding shutoff door
in its storage location.
3. Remove rubber plug closest to area in entrainer needing
attention.
4. Insert shutoff door into open slot and push into entrainer
at a slight upward angle.
5. When work is complete, remove shutoff door, return door
to storage location, and plug open slot.

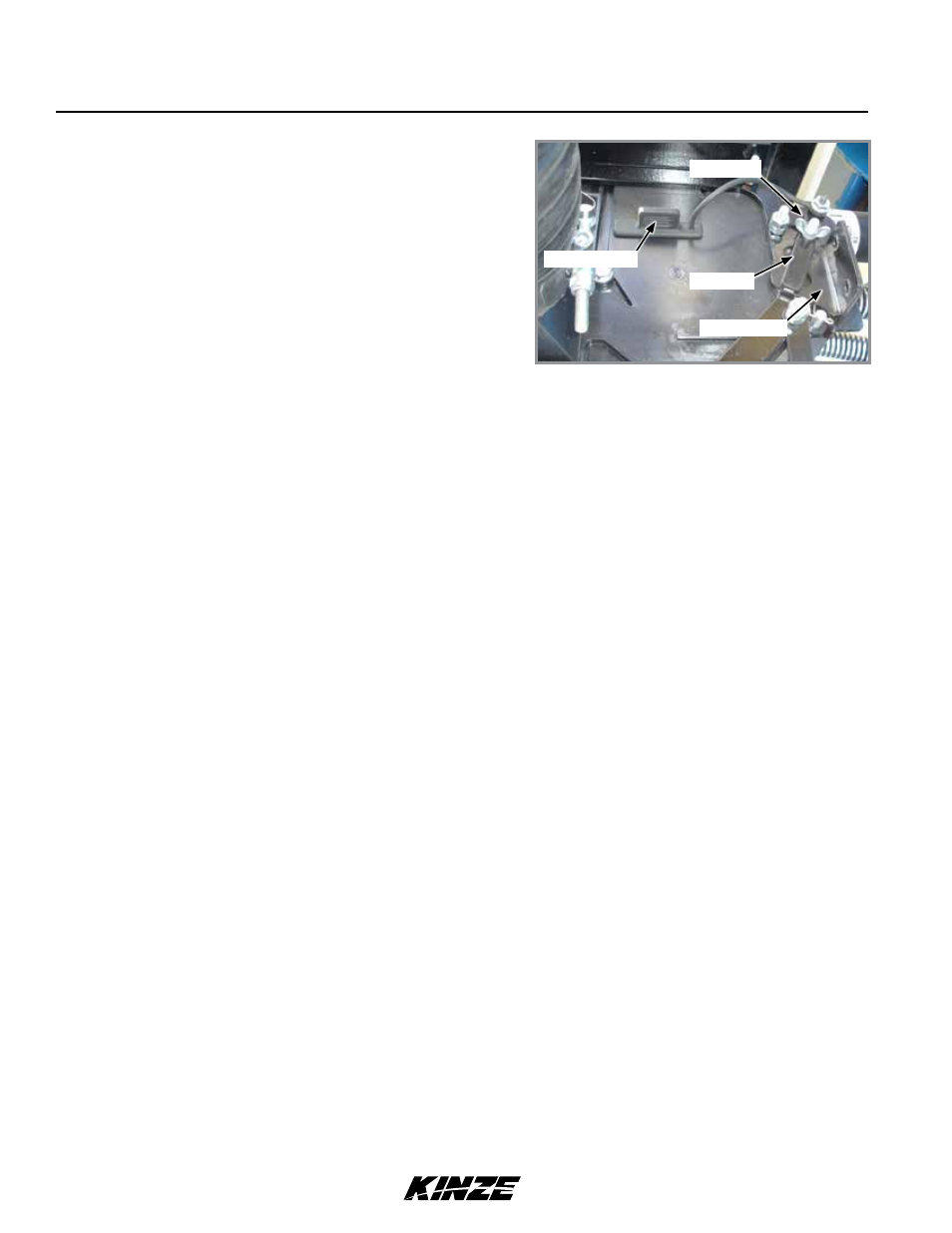

bulk Fill Entrainer (End View)
Rubber plug
Wing nut
Shutoff door
Retainer
