Model 4900 M0247-01
Rev. 5/14 2-39
Machine Operation
NOTICE
Foreign materials can plug system. Make sure seed is clean and
free of debris when filling bulk fill hoppers.
CAUTION
Seed flying out of disconnected delivery tube at high velocity can cause
injury. Do not disconnect delivery tubes when system is operating.
Recommended pressures:
• Corn – 12 inches of water
• Soybeans – 10 inches of water
• Actual pressure needed is affected by seed size, shape, and coating.

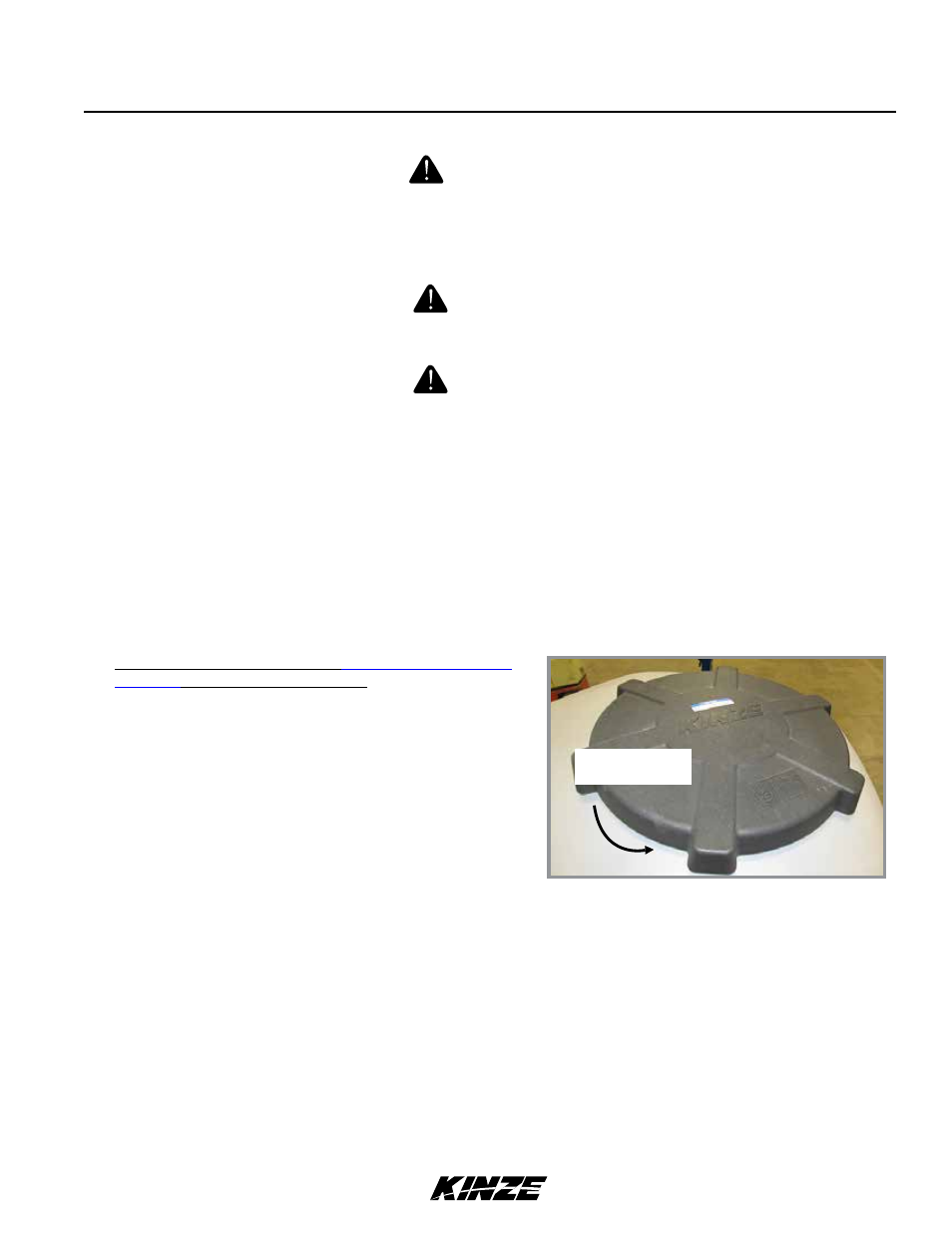

bulk Fill Lid
bULK FILL SYSTEM
NOTICE
Do not turn on system with tractor engine at full speed or system
damage may occur.
NOTICE
Do not operate bulk fill system above maximum system operating
pressure of 20 inches of water or seed bridging may occur.
1. before filling hoppers, refer to “Row Unit Operation” on
page 3-1 for additives information. Fill hoppers with
seed, then twist lid clockwise to close.
2. Start bulk fill delivery system with tractor engine at idle.
3. Increase engine speed to full and set initial system
pressure using flow control valve.
4. Allow system to warm up and adjust pressure if necessary.
DANGER
DO NOT ENTER. Hazardous conditions inside will result in death or
serious injury. Follow OSHA confined space procedures.
Counterclockwise
to open
WARNING
Do not remove lid during machine operation. Contents are pressurized
and could result in death, serious injuries or equipment damage.
Review operator manual for proper filling procedure.
