Insecticide communication cable, Motor cable, Insecticide communication cable -34 – Kinze 4900 Front Folding Planter Rev. 5/14 User Manual
Page 116: Motor cable -34
M0247-01
Model 4900
6-34
Rev. 5/14
TM
Lubrication and Maintenance

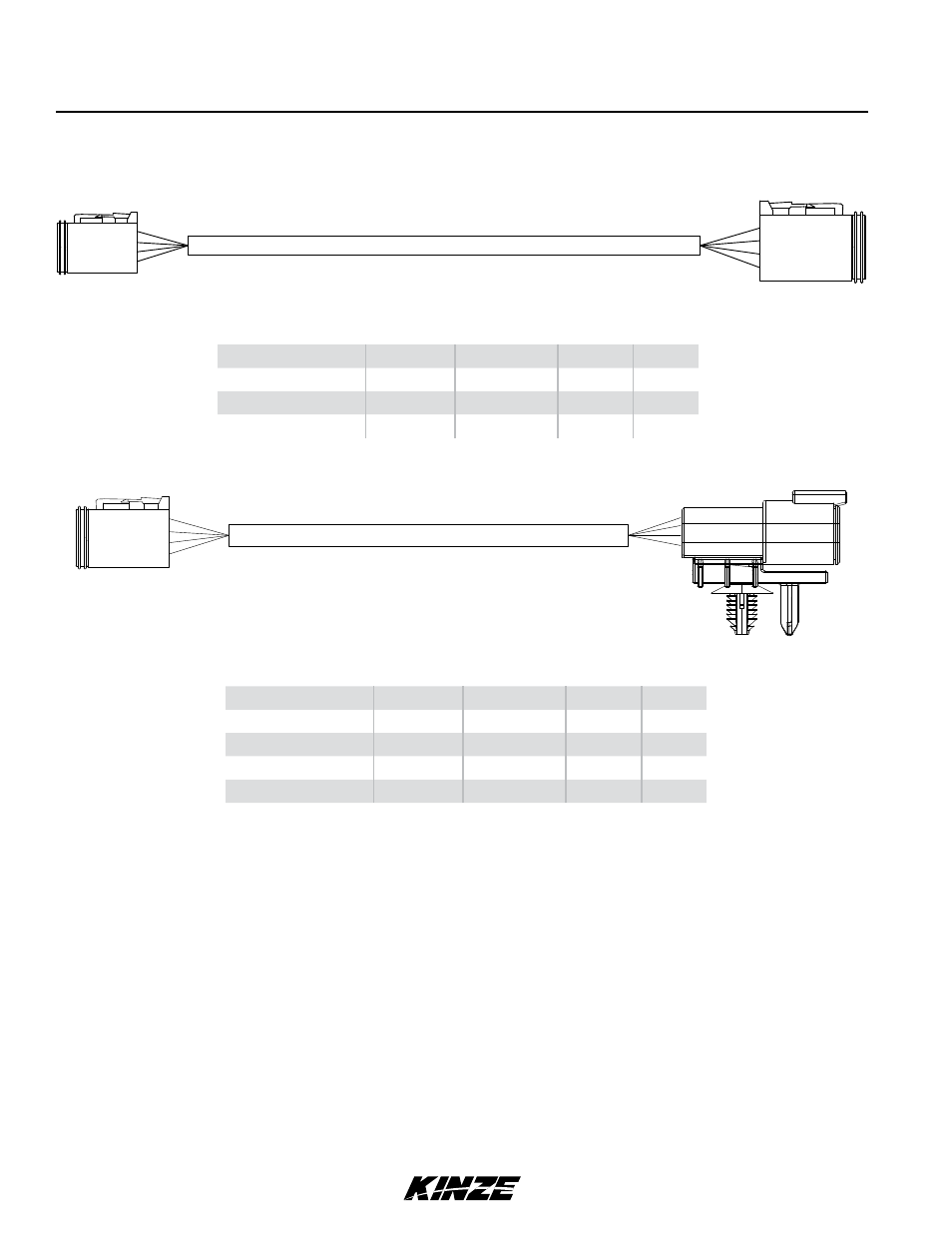

INSECTICIDE COMMUNICATION CAbLE
P/N A19403
Signal
Wire Gauge
Color
RM
MDM
Power 24VDC
16
Red
3
1,4
Ground
16
Black
2
2
LIN
16
Blue
1
3
Motor Driver Module (MDM)
Row Module (RM)
MOTOR CAbLE
P/N A19401
Signal
Wire Gauge
Color
MDM
SM
Coi 1A+
18
Red
1
1
Coil 1B-
18
White
2
2
Coil 2A+
18
Green
3
3
Coil 2B-
18
Black
4
4
Seed Meter (SM)
Motor Driver Module (MDM)
