Model 4900 M0247-01
Rev. 5/14 2-3
Machine Operation
INITIAL PLANTER PREPARATION
Following information is general in nature to aid in preparation of tractor and planter for use, and to provide general
operating procedures. Operator experience, familiarity with the machine, and the following information should combine
for efficient planter operation and good working habits.
WARNING
Improperly operating or working on this equipment could result in
death or serious injury. Read and follow all instructions in Operator
Manual before operating or working on this equipment.
WARNING
Wheel separation can cause loss of control resulting in death, seri-
ous injury, or damage to property and equipment. Check lug nuts
on transport wheels are tight before operating planter for first time
and periodically after.
1. Torque transport wheel ¾"- 16 lug nuts to 200 ft-lb (244 N-m).
2. Inflate tires to the following specifications:
• Wing - 12R and 16R: 7.5" x 20" - 40 psi (275.7 kPa), 24R: 41" x 11" - 60 psi (413.6 kPa)
• Transport - 12R: 255-70R, 22.5 - 100 psi (689.4 kPa) 16R and 24R: 41" x 11" - 75 psi (517.1 kPa)
• Contact drive - 4.80" x 8" - 50 psi (344.7 kPa)
• Row marker - 16" x 6.5" x 8" - 14 psi (96.5 kPa)
• Liquid fertilizer piston pump (Not shown) - 4.10" x 6" - 50 psi (344.7 kPa)
3. Lubricate planter and row units per lubrication information in this manual.
4. Check all drive chains for proper tension, alignment, and lubrication.

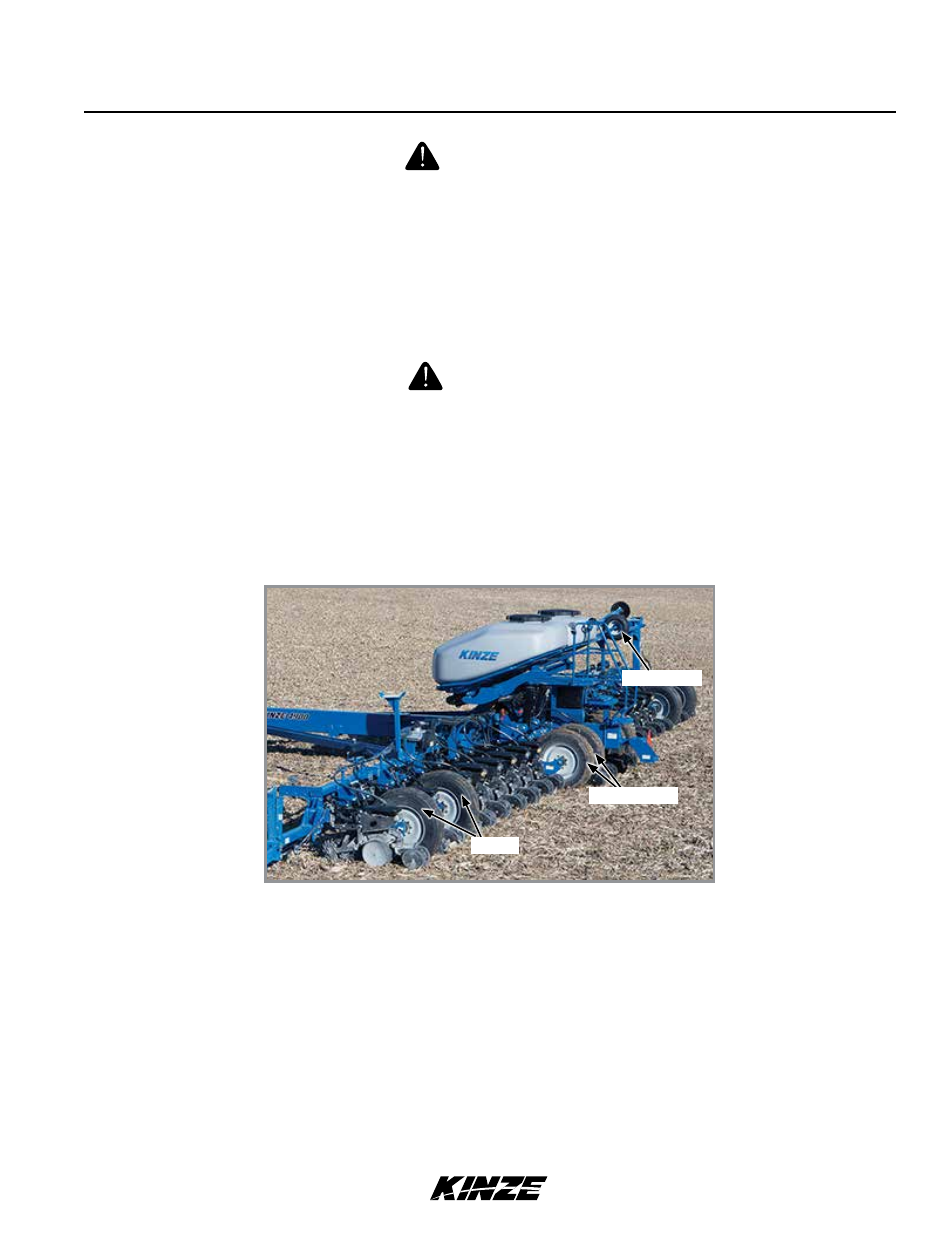

Tire locations (L.H. shown)
WARNING
Explosive separation of rim and tire can cause death or serious injury.
Overinflation, rim and tire servicing, improper use of rims and tires,
worn, or improperly maintained tires could result in a tire explosion.
Row marker
Wing
Transport
