Lubrication and Maintenance

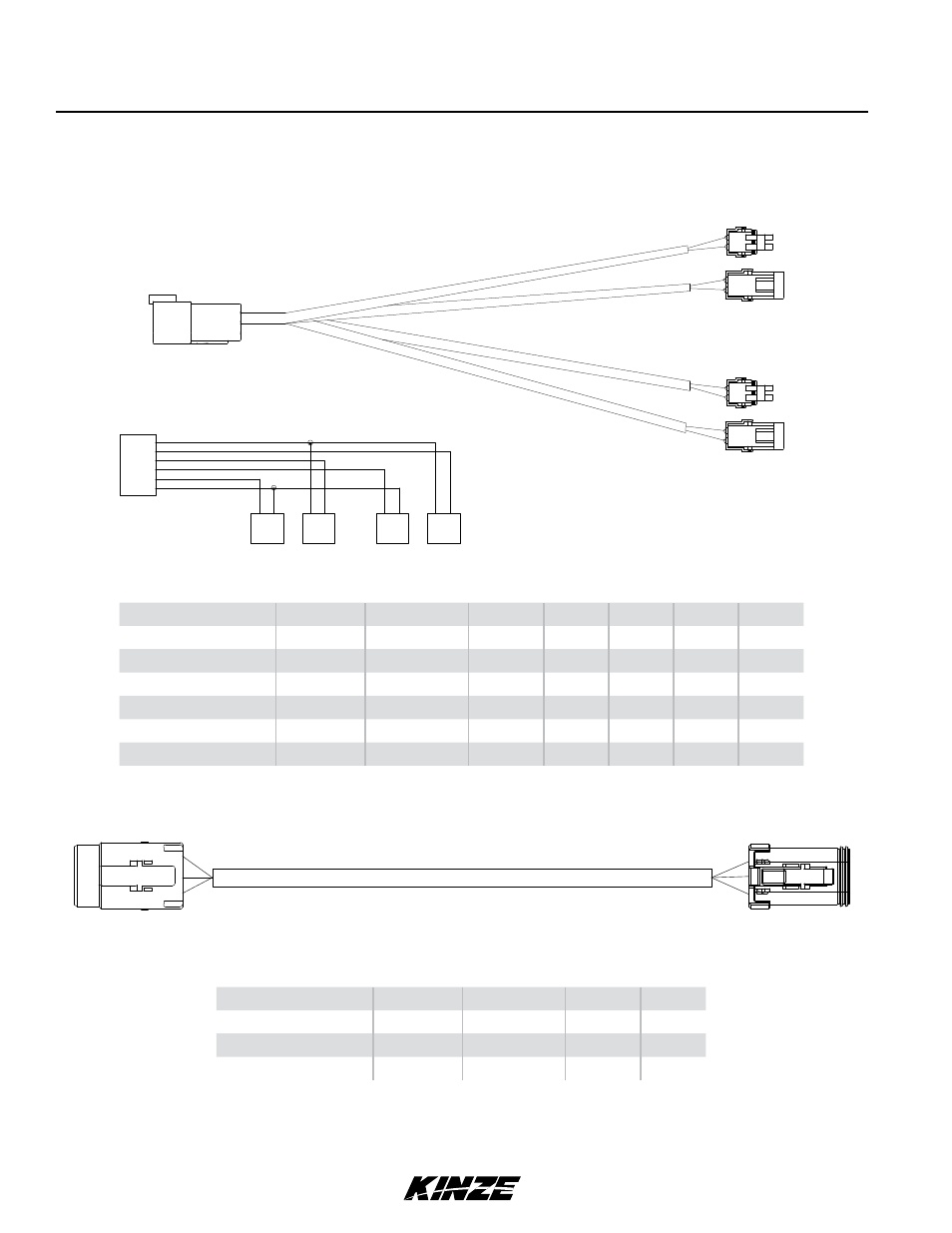

FERTILIzER OPTION CAbLE
B
A
B
A
B
A
B
A
1 2 3 4 5 6
B A A B B A A B
Row Module (MDM)
Left Valve (VL)
Left Switch (SL)
Right Valve (VR)
Right Switch (SR)
VL SL VR SL
P/N A19400
Signal Wire Gauge Color RM VL SL VR SR
Power 16 Red 1 A - A -
Left Fertilizer Switch 16 Green 4 - B - -
Right Fertilizer Switch 16 Blue 5 - - - B
Left Fertilizer Valve 16 Light Blue 2 B - - -
Right Fertilizer Valve 16 Violet 3 - - B -
Ground 16 Black 6 - A - A
P/N A19419
Signal Wire Gauge Color TEMP RM
12VDC Sen Supply 18 Brown 1 5
Ground 18 Blue 2 2
Signal 18 Yellow/Green 3 6
TEMPERATURE SENSOR CAbLE
Temperature (TEMP) Row Module (RM)
