Model 4900 M0247-01
Rev. 5/14 6-31
Lubrication and Maintenance

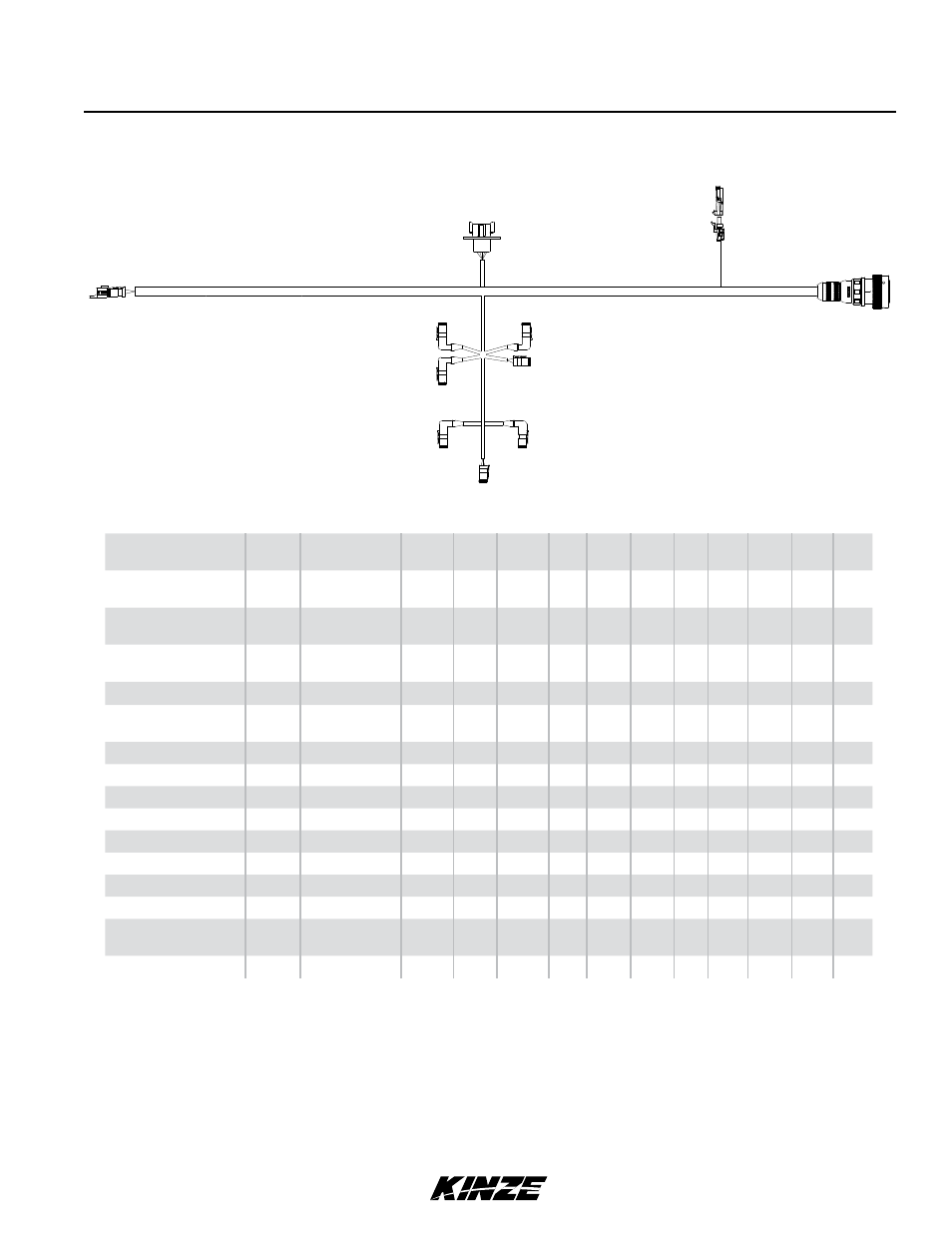

LEFT AUXILIARY CAbLE
P/N A19413
Signal Wire
Gauge
Color MML WLL AUXL LM RM W1 W2 AX1 FD1 FD2 FC
Solenoid Power
(12VDC)
10 Red/Blue G - 1 1 1 1 1 1 1 1
Worklight Power
(12VDC)
16 Red/White H 2 - - - - - - - - -
Field Coil Power
(12VDC)
14 Red/Yellow D - - - - - - - - - A
Sensor Supply +5VDC 16 White V - 3 - - - - - - - -
Sensor Supply
+12VDC
16 White/Red L - 6 - - - - - - - -
Ground 16 Black T - 7 - - - - - - - -
Right Marker 16 Purple J - - - 2 - - - - - -
Left Marker 16 Blue X - - 2 - - - - - - -
Axle 16 Blue/Black N - - - - - - 2 - - -
Wing Wheels Left 16 Purple/Green C - - - - 2 2 - - - -
Fold 16 Blue/Green M - - - - - - - 2 2 -
Left Vac PWM 16 Pink/Black U - 2 - - - - - - - -
Left Vac Signal 16 Tan/Black W - 8 - - - - - - - -
Left Toolbar
Position Signal
16 Green/Blue K - 4 - - - - - - - -
Work Light Wing 16 Gray A 1 - - - - - - - - -
Left Work Light
(WLL)
Master Module Left
(MML)
Field Coil
(FC)
Wing Wheels (W1)
Axle (AX1)
Left Auxiliary (AUXL)
Right Marker (RM)
Left Marker (LM)
Fold (FD1)
Wing Wheels (W2)
Fold (FD2)
