Machine Operation
5. Operate the proper hydraulic tractor control and press
and hold the UNFOLD button on your ISOBUS monitor
to move wings out, away from tractor. Planter is
completely unfolded when stub wings are latched into
the H-frame as shown in bottom photos.

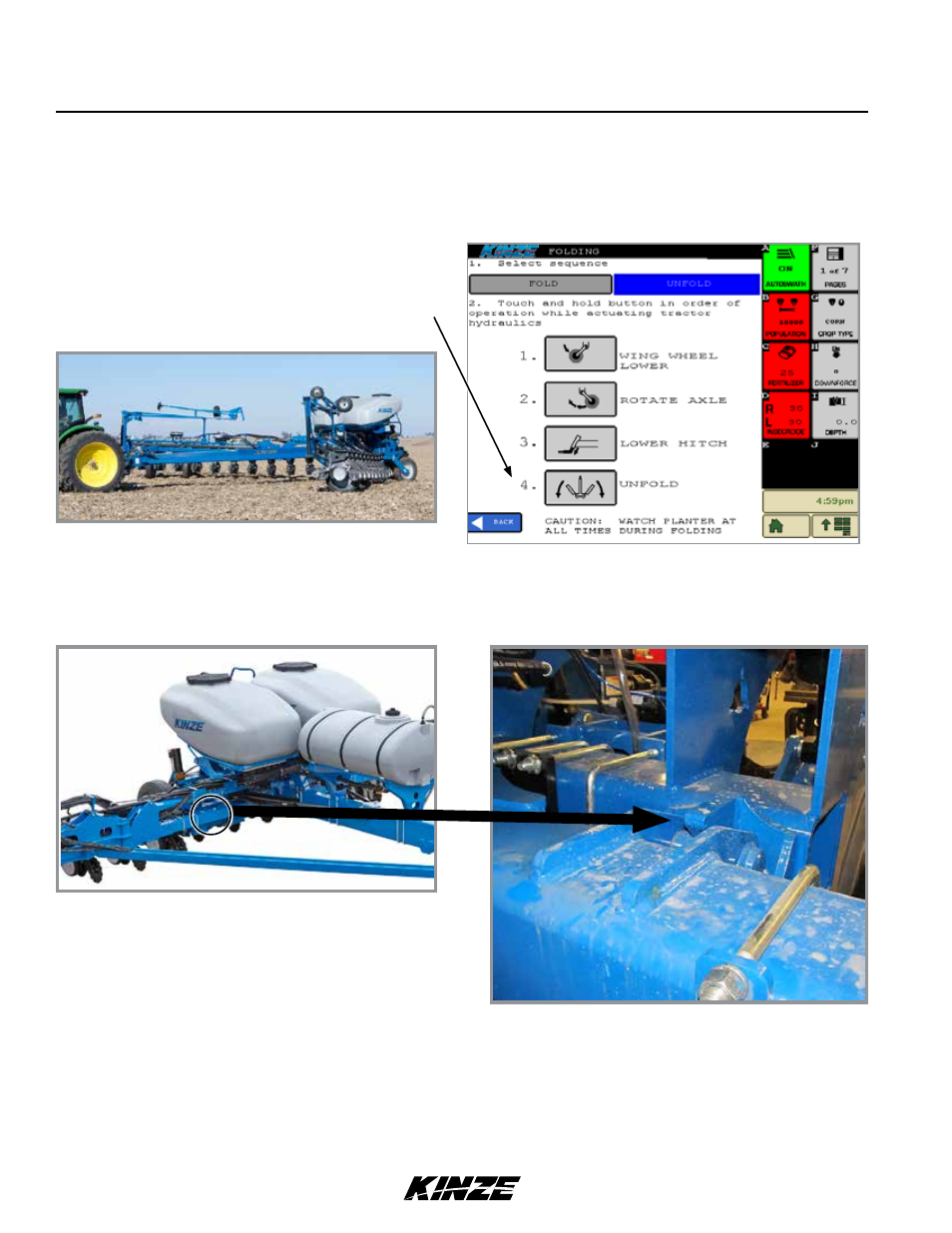

Planter Unfolding
ISObUS Monitor Unfold Screen
NOTICE
Unfolding planter without using tractor to assist may cause equipment
damage especially in soft conditions or when loaded with seed or
fertilizer. Use tractor to reduce stress on frame, drive, and transport
components.
Stub Wing Latched into Frame
