M0247-01 Model 4900
2-20 Rev. 5/14
TM
Machine Operation
TM
MARKERS
LEFT
FUNCTION
RIGHT PLANT FOLD
FOLD
OFF
AXLE
OFF
OFF
HITCH
MAIN
WING
WHEELS
15 AMP

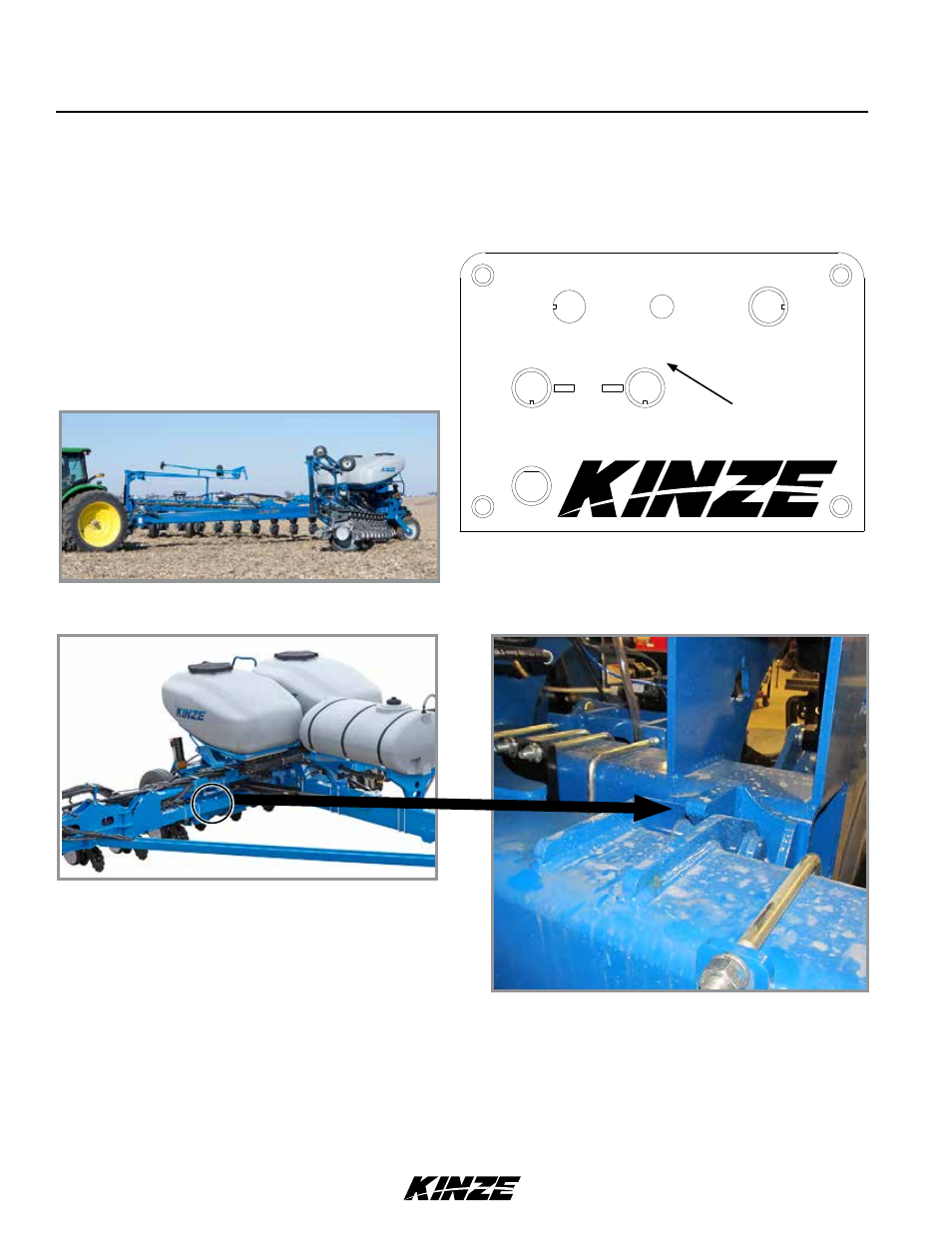

6. Operate the proper hydraulic tractor control and
press the FOLD switch up to move wings out, away
from tractor. Planter is completely unfolded when
stub wings are latched into the H-frame as shown in
bottom photos.
Planter Unfolding
Control box
NOTICE
Unfolding planter without using tractor to assist may cause equipment
damage especially in soft conditions or when loaded with seed or
fertilizer. Use tractor to reduce stress on frame, drive, and transport
components.
Stub Wing Latched into Frame
