Machine Operation
Two solenoid valves on valve block at rear L.H. side of center frame, and a three position selector switch on control
console permit operator to lower or raise desired row marker.
NOTE: See row marker adjustments on following pages.
1. Select which row marker to lower on ISOBUS screen.
2. Move control switch to other side to operate opposite row marker.
3. Raise row marker at end of field.
4. After turn, lower the pre-selected row marker.
5. Continue to follow this procedure.
NOTE: both row markers can be lowered by operating switch in each position and hydraulic control twice.
Row markers raise simultaneously with hydraulic control in raise position.
The Auto Function automatically switches the marker whenever the planter is lifted. You must turn Auto
Function ON from your ISObUS controller to deploy this function.
If electrical system does not operate properly:
• Check fuse.
• Check wiring connections.
• Check control switch.
• Check solenoid. SOLENOID HOUSING IS MAGNETIZED WHEN ENERGIZED.
ROW MARKER OPERATION
Row Marker Solenoid Valves
DANGER!
Contacting or coming close to power lines or other high energy
sources will cause death or serious injury. Keep away from power
lines or high energy sources at all times.

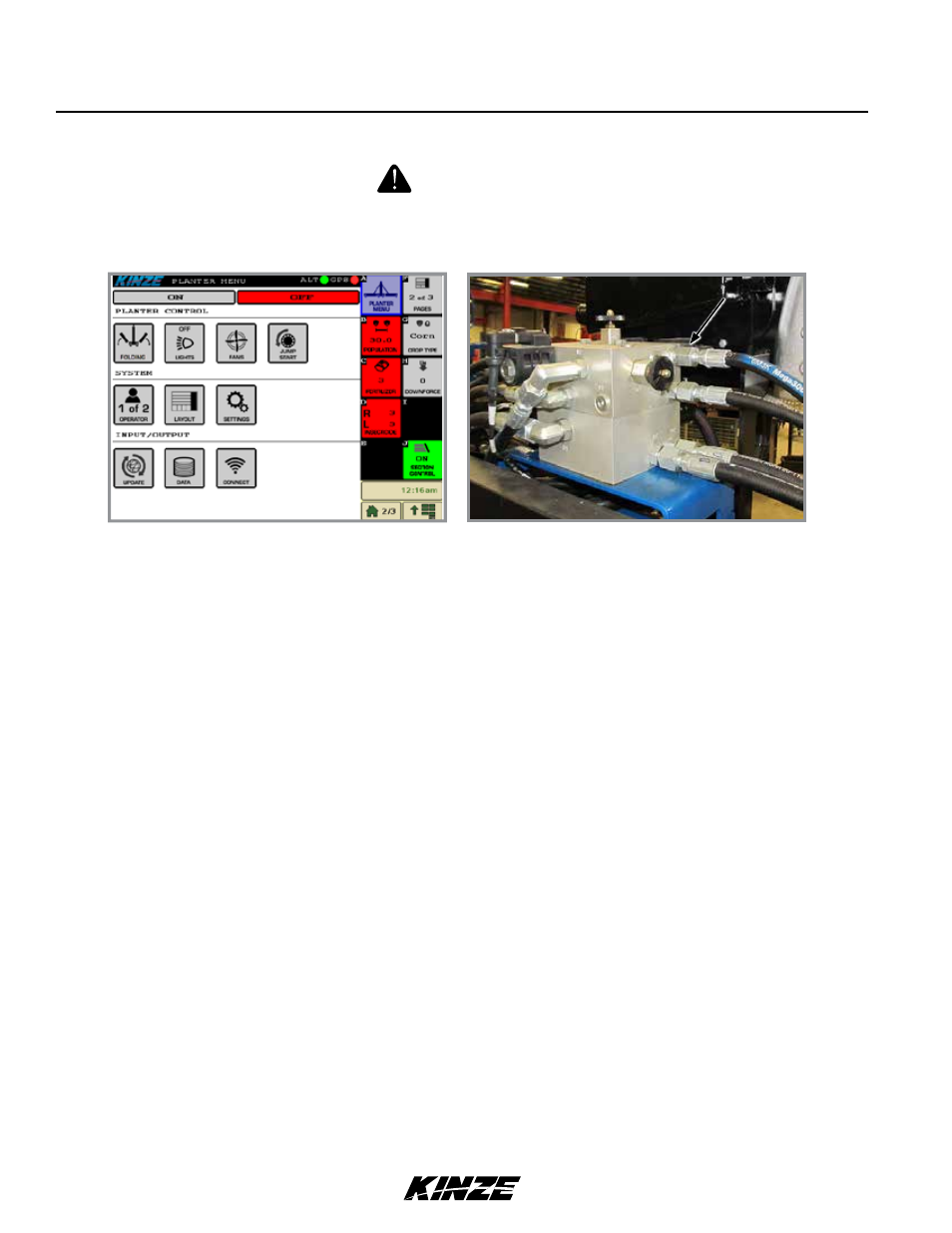

ISObUS Screen
