M0247-01 Model 4900
2-18 Rev. 5/14
TM
Machine Operation
TM
MARKERS
LEFT
FUNCTION
RIGHT PLANT FOLD
FOLD
OFF
AXLE
OFF
OFF
HITCH
MAIN
WING
WHEELS
15 AMP

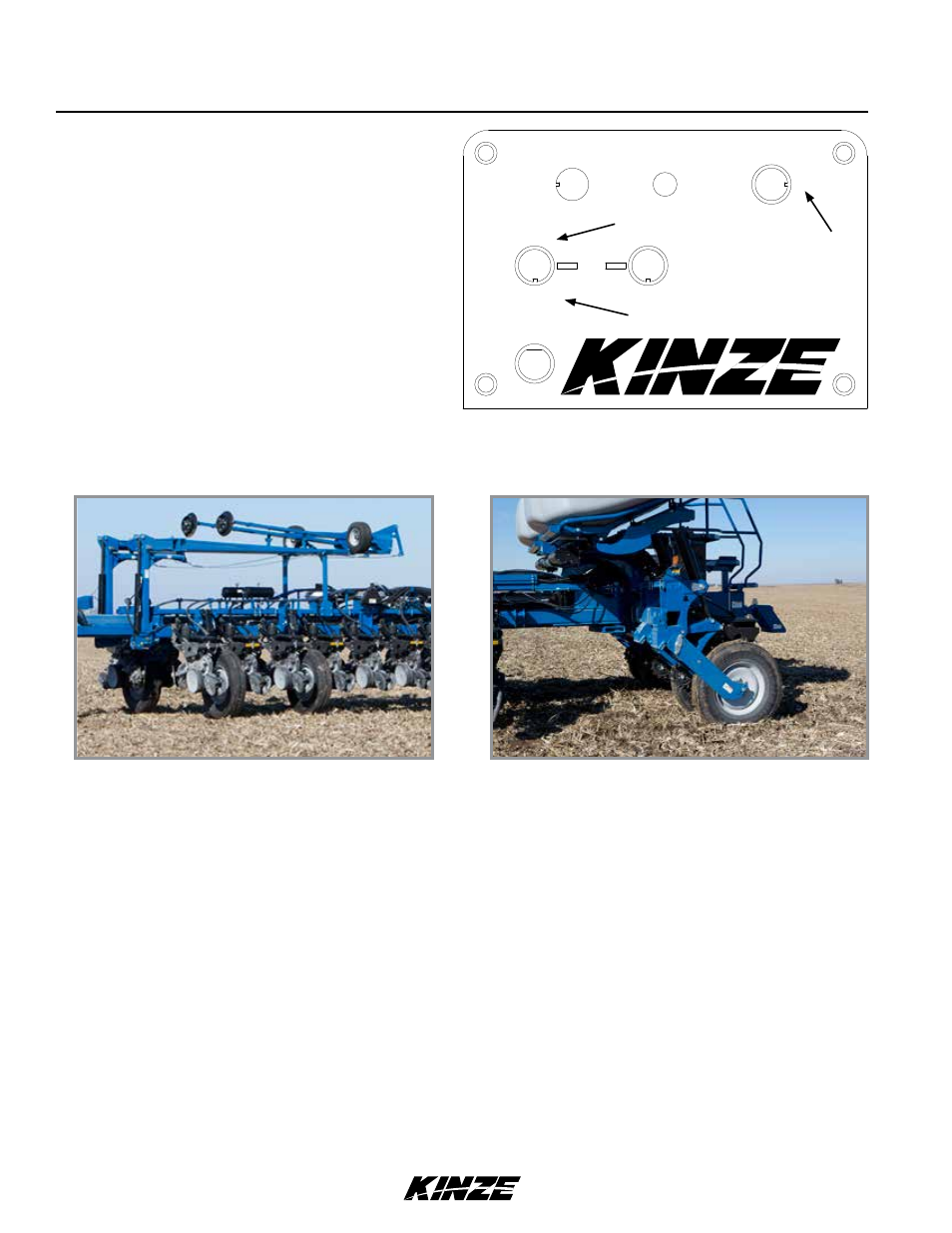

Control box
2. Place FUNCTION switch on control box in fold
position.
3. Operate the proper hydraulic tractor control and press
and hold the WING WHEEL switch down to lower wing
wheels into field turnaround position.
4. Operate the proper hydraulic tractor control and press
and hold the AXLE switch up to lower transport axle
to field turnaround position. If equipped with flip axle,
move tires to field turnaround position as shown below.
Wing Wheels in Field Turnaround Position Flip Axle in Field Turnaround Position
