II - 5
3. IMAGE FORMATION SYSTEM
3.1 Outline
The image formation system is the main part of the printer. The print information, after input from
the video controller circuit into the engine controller circuit as a TVDO signal, forms a toner image
on the photosensitive drum.
Then the toner image is transferred onto the paper by the transfer charging roller. The image
formation system is composed of the photosensitive drum the charging unit, the developing unit
and the cleaning unit.
3.2 Printing Process

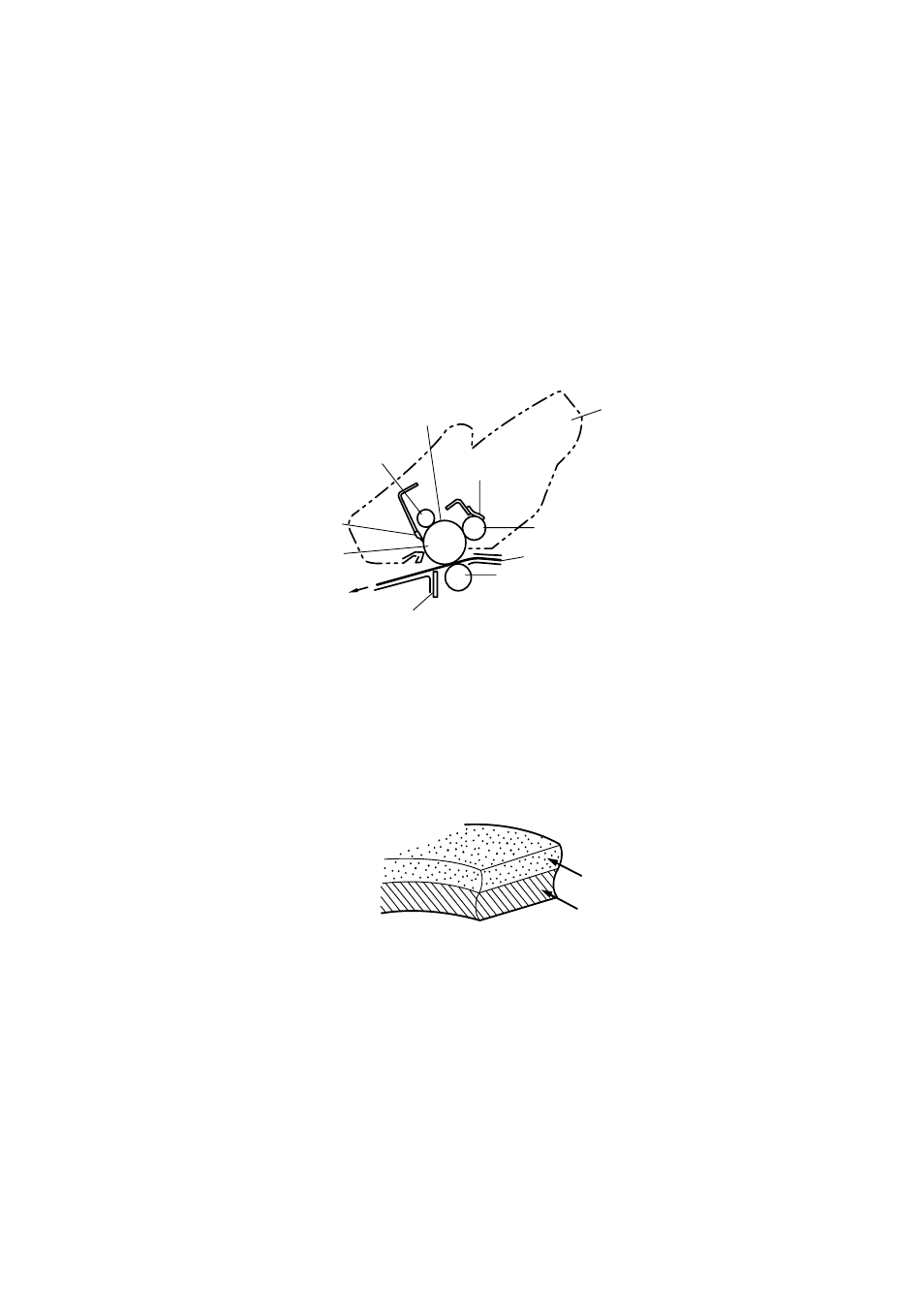

The major part of the image formation system is contained in the cartridge, as shown in Figure
2.5.
The cartridge used by the printer has a seamless photosensitive drum with the structure shown
in Figure 2.6. The outer layer of the drum consists of an organic photoconductor (OPC); the base
is aluminum.
The printing process can be divided into five major stages:
Figure 2.5
Base
Photoconductive layer
Laser beam
Developing cylinder
Primary charging roller
Cleaning blade
Photosensitive drum
Static charge eliminator
Cartridge
Transfer charging roller
Blade
Figure 2.6
1. Electrostatic latent image formation stage
Step 1 Primary charge (-)
Step 2 Scanning exposure
2. Developing stage
Step 3 Development
Paper
