II - 3
0.2 sec 0.2 sec
Main motor
Paper feed
motor
Registration
sensor
Paper empty
sensor
Pick-up roller
solenoid
Paper ejection
sensor
STBY PRINT STBY
PRNT or PRFD
1.12 sec
4.3 MP Tray Feed
The timing of the MP tray feed is identical to the timing of the cassette paper feed except for
the following points:
(1) The paper empty sensors are different.
Cassette feed : Tray1 paper empty sensor
MP tray feed : MP tray paper empty sensor
(2) The pick-up roller solenoids are different.
Cassette feed : Tray1 pick-up roller solenoid
MP tray feed : MP tray pick-up roller solenoid

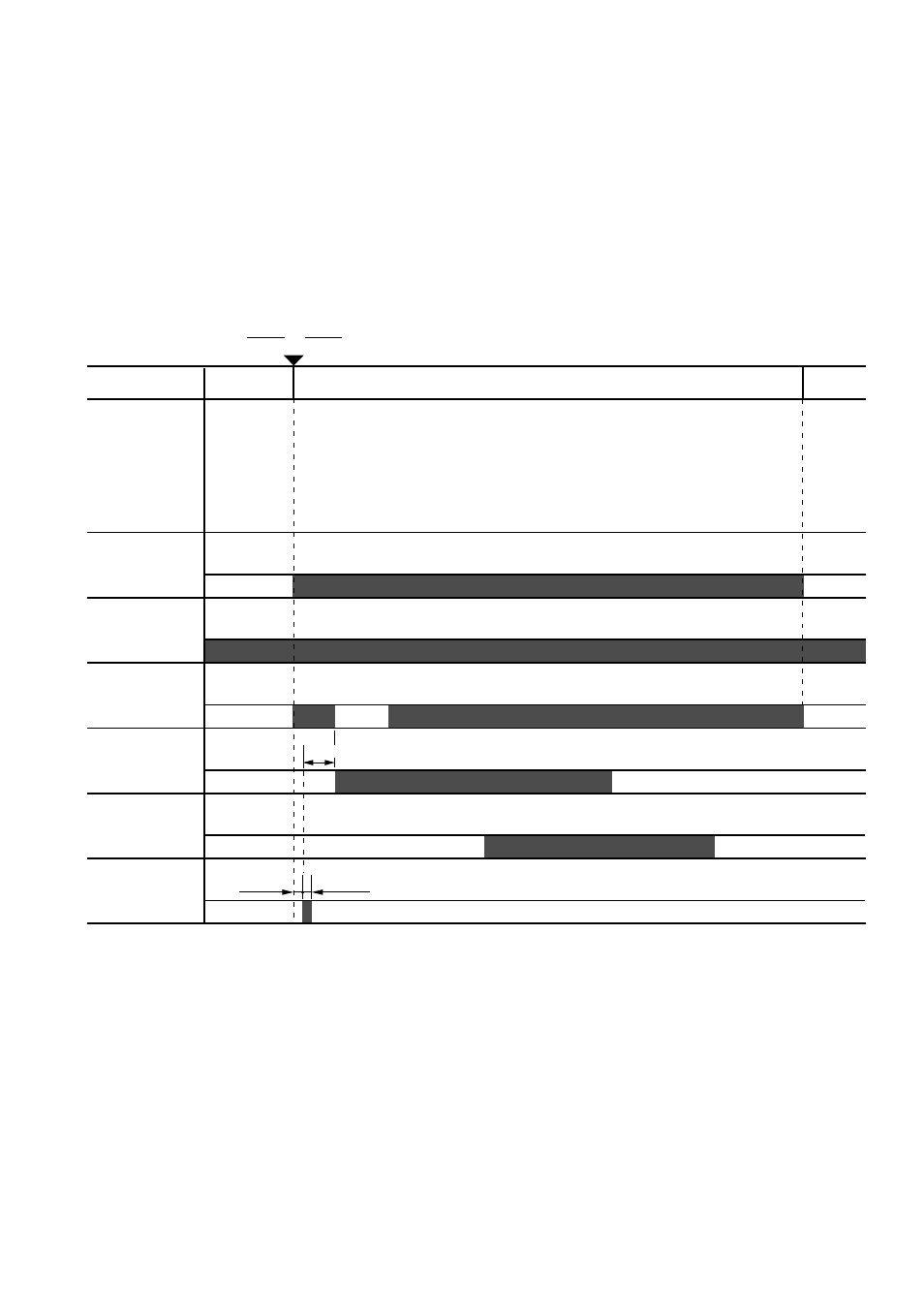

Figure 2.3
Note: The times in the table above show the HL-1260e. All of them become 1/1.3333 in case
of the HL-1660.
