84
E

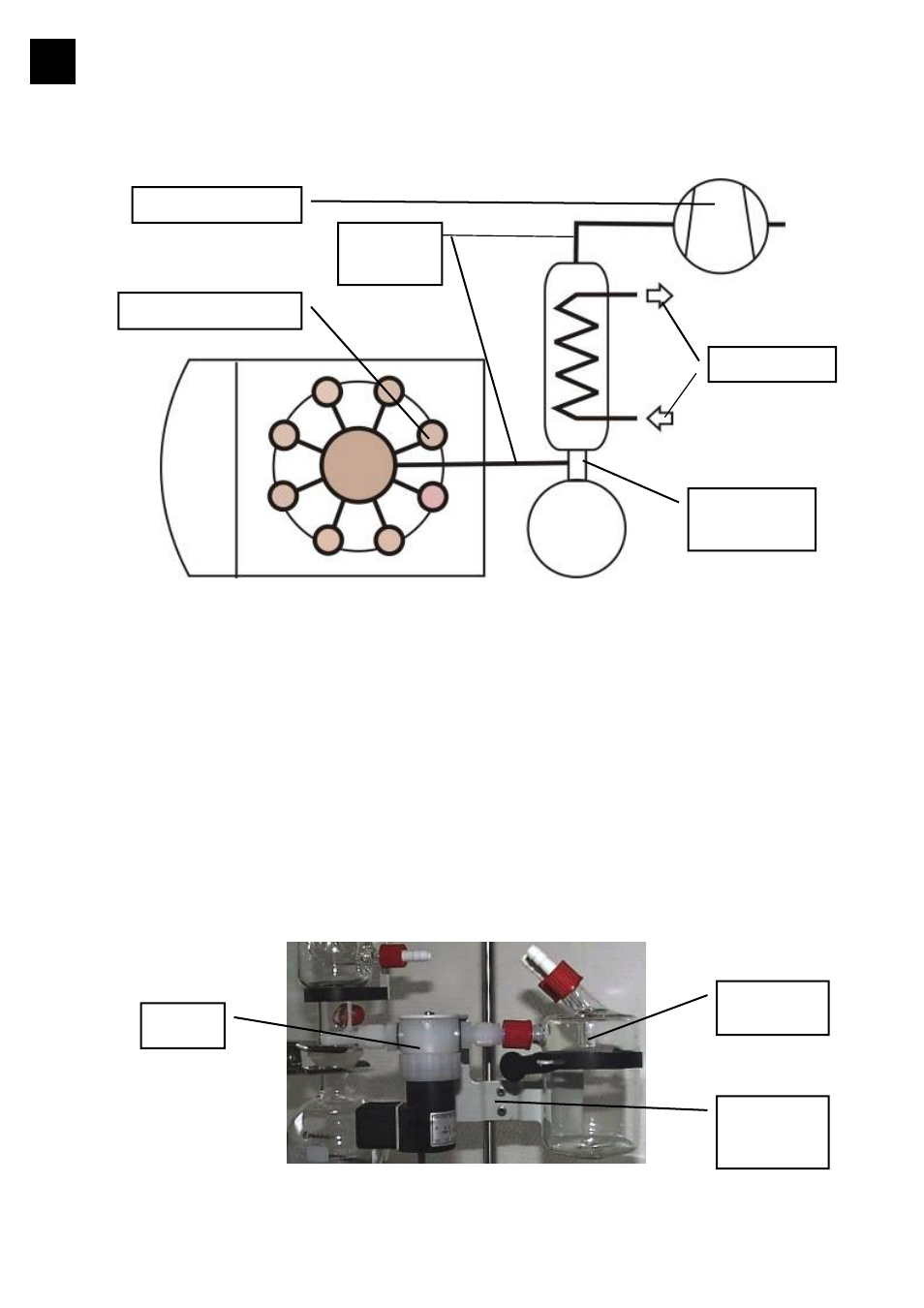

4.5 Schematic, Multiple-Evaporator without vacuum control
Set-up vacuum lines as shown; for more details refer to Chapter 1.3.1and 4.4.3.
4.6 Schematic, Multi-Evaporator with vacuum control
Set-up vacuum lines as shown; for more details refer to Chapter 1.3.1 and 4.4.3.
The following components are recommended for vacuum control:
VAC control automatic RS vacuum controller
Woulff bottle
vacuum valve
The VAC control automatic RS vacuum controller goes on the top end of the stand
used for Synthesis 1 glassware kit.
Vacuum valve and Woulff bottle are installed on the base of the Synthesis 1
glassware kit stand (refer to Chapter 4.4).
vacuum
valve
Woulff
bottle
attach
to
holder
coolant fitting
reaction block Liquid
glassware kit,
Synnthesis 1
vacuum pump
vacuum
lines
