Start-Up
77
Installation
76

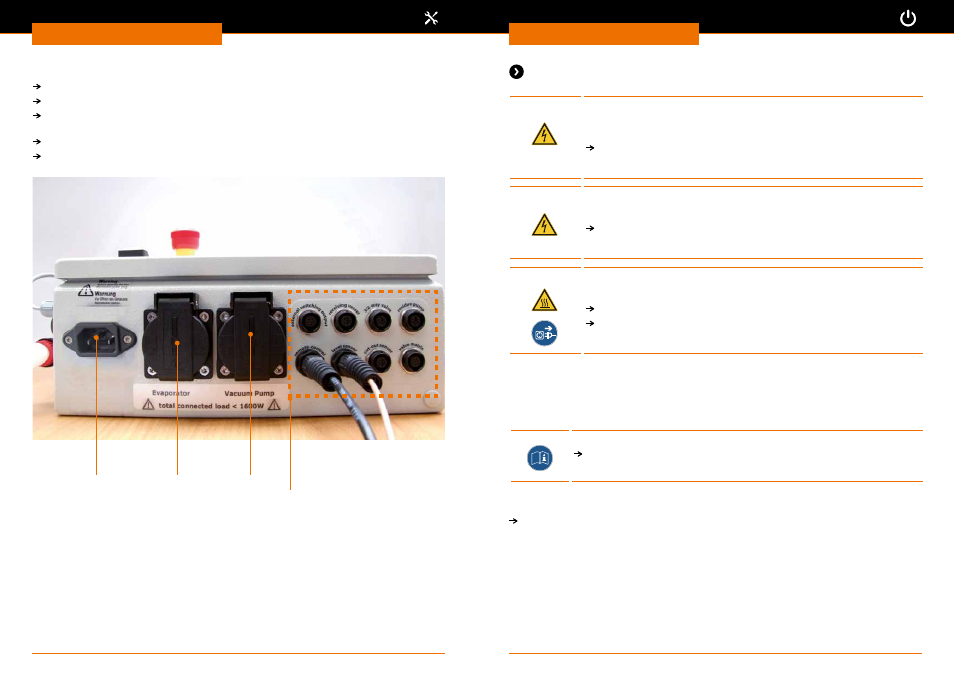

Control box:
Connect multiple socket to connection (42).
Connect the vacuum pump to connection (43).
Connect all the control cables according to their assignments to connections (44) (see
chapter „Explanation of the components” - „Distimatic in general”).
Connect control box power cord to connection (41).
Connect the control box to the mains socket.
Switch on the rotary evaporator, vacuum pump and chiller with the respective mains
switch.
If you prefer to use tap water instead of a chiller, start the water flow up during the
preparation process for automatic mode (see chapter entitled „Automatic mode” –
„Preparatory steps”).
41 42 43
44
CAUTION The mains voltage and specification of the mains voltage on the
name plate do not coincide!
Damage to property as a result of overvoltage.
Please ensure that the mains voltage coincides with the voltage
specified on the name plate.
DANGER Danger of electric shock or short-circuit!
Electric shock or short circuit due to damaged insulation.
Ensure that all power cords, tubes and connecting cables have been
laid correctly in the area where heat is generated.
CAUTION Unintentional switch-on of the device!
Injury and burns to the hands.
Switch off the device.
Unplug the mains plug after use.
Start-up
Preparatory steps
Rotary evaporator, vacuum pump, chiller
See operating instructions for Hei-VAP or Hei-VAP Industrial, vacuum
pump and chiller.
