Heidolph Automatic Module Distimatic - Manual (Page 13)

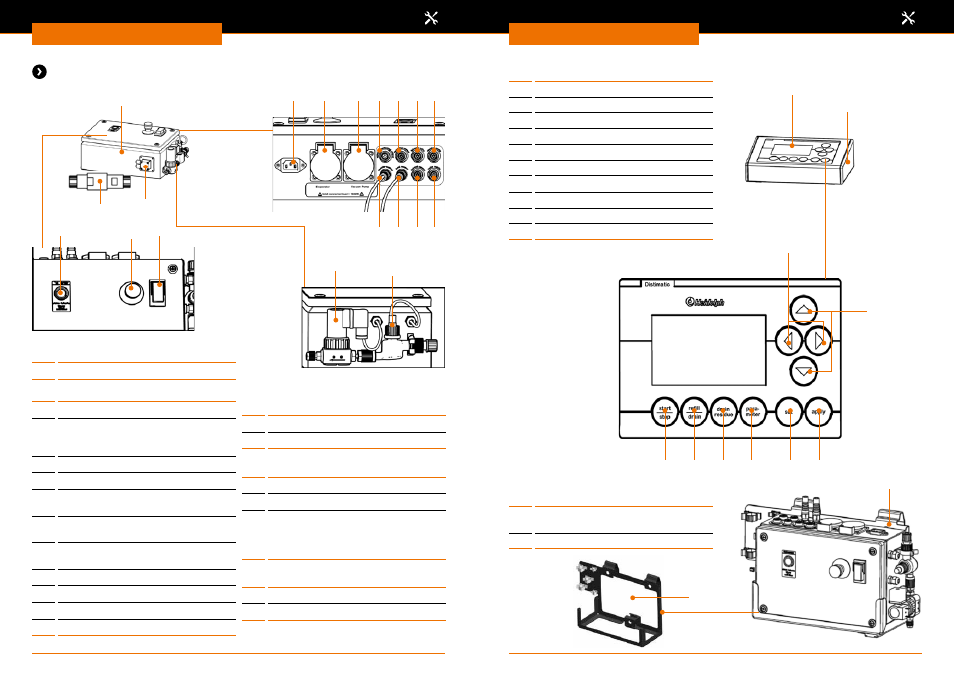

Installation Installation
24 25
Reverse side (connections)
2 Device mains plug
3
Mains socket for multiple switched socket
(Hei-VAP) or multiple socket (Hei-VAP
Industrial)
4 Mains socket for vacuum pump
5 Not assigned
6
Overflow sensor for condensate and/or
residue vessel
7
3/2-way valve (only for Distimatic
including automatic drainage of residue)
8
Residue pump (only for Distimatic
including automatic drainage of residue)
9 Valve matrix
10 Cut-out sensor
11 Flask sensor
12 Operating panel
Right side
13 Refill sensor
14 Refill valve
Overall view
1 Control box
Front
18 Condensate pump
19 Check valve for PTFE tube Ø 6 mm
Top
15 Mains switch
16 Cut-out switch
17
Flask sensor button, status indicator of
the flask sensor and calibration button
(green = ready for operation, red =
medium detected)
9
8
10
7 4
11
15
18
19
1
16
6 3
12
13
14
17
5 2
20 Operating panel
21 Display
22 Arrow keys right/left
23 Arrow keys up/down
24 apply key
25 set key
26 parameter key
27 drain residue key
28 refill/drain key
29 start/stop key
30
Wall bracket for installation of the control
box
31 Wall bracket with control box
29 28 25 27 24 26
31
20
22
23
30
Explanation of the components
21
