Control box – Heidolph Automatic Module Distimatic User Manual

Page 22

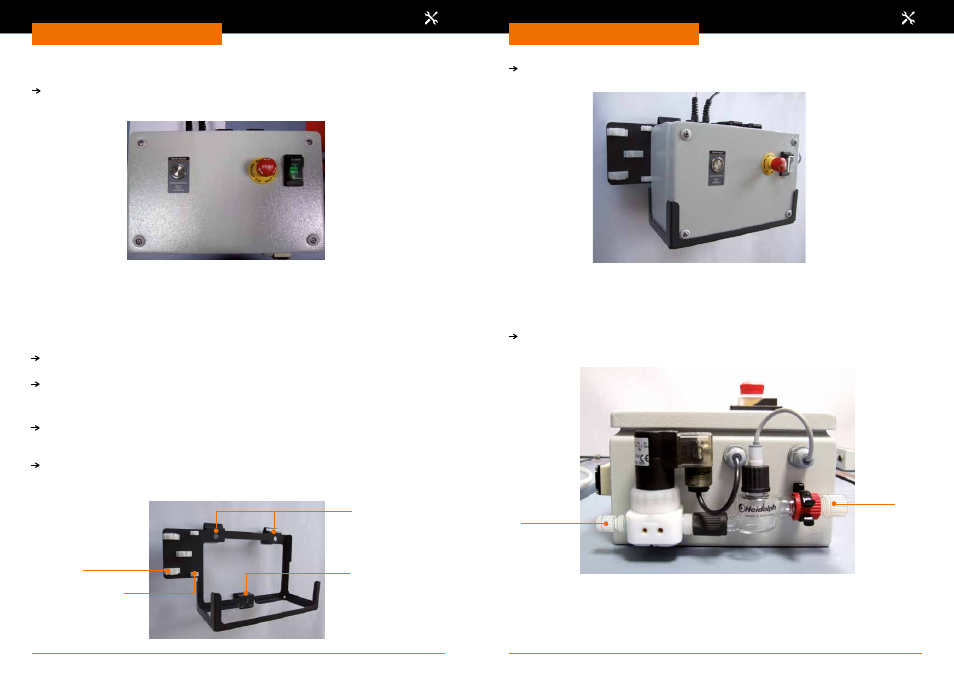

Installation

Place the control box on a flat, firm and dry surface with sufficient space. Also see the

following sub-section „Wall bracket (optional)”.

Position control box on the suspended wall bracket.

Unscrew screw caps (5) and (6).

Control box

You can clip the wall bracket to the wall or bolt it into the wall.
Clipped:

Clip the wall bracket to a stand bar secured horizontally to the wall by means of a

hanging device (1) and slide it onto a vertical stand bar by means of fixing device (2).

Route the PTFE tube coming from the product storage vessel through the brackets (3)

and the cables into brackets (4).

Bolted:

Insert the hexagonal bolts Ø 6 mm through the larger borehole on hanging device (1)

at the front into the back borehole and tighten until hand-tight using a socket wrench

SW 10 mm.

Route the PTFE tube coming from the product storage vessel through the brackets (3)

and the cables into brackets (4).

Wall bracket (optional)

Refill valve and refill sensor
