Installation Installation
52 53

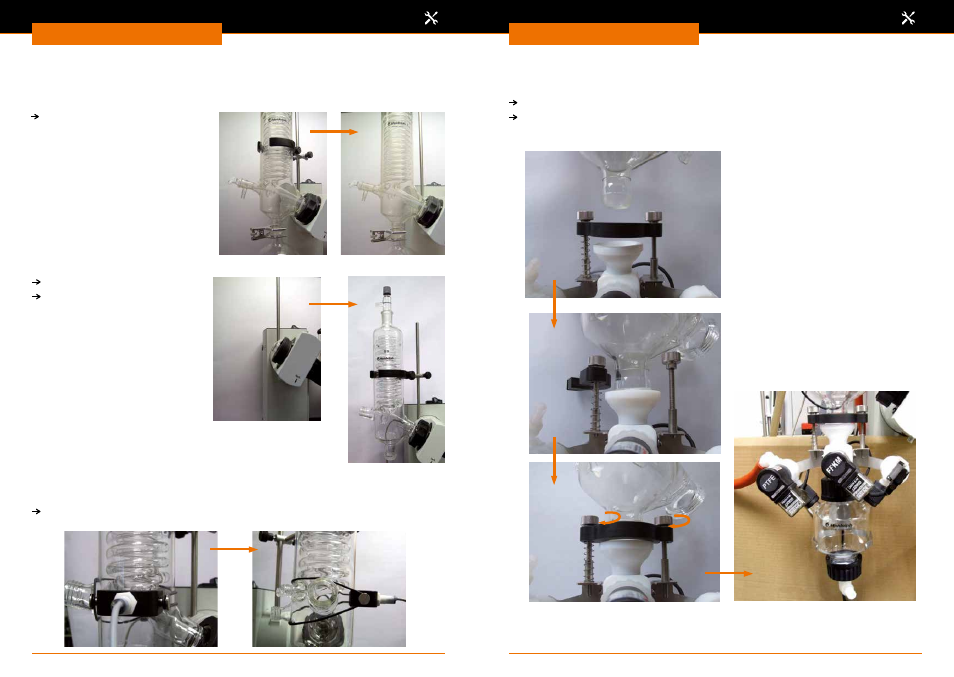

Remove the condenser.
Mount condenser G9 and secure
it in place with the condenser
attachment.
Cut-out sensor
Fix the cut-out sensor with rubber ring Ø 120 mm to the condenser.
Remove condenser attachment on
the condenser.
Condenser
(only on Distimatic including automatic drainage of residue)
Fix the valve matrix to the condenser with the joint clamp.
Ensure that the interconnection point is evenly bolted together and does not leak.
Valve matrix
