Heidolph Automatic Module Distimatic User Manual
Page 33

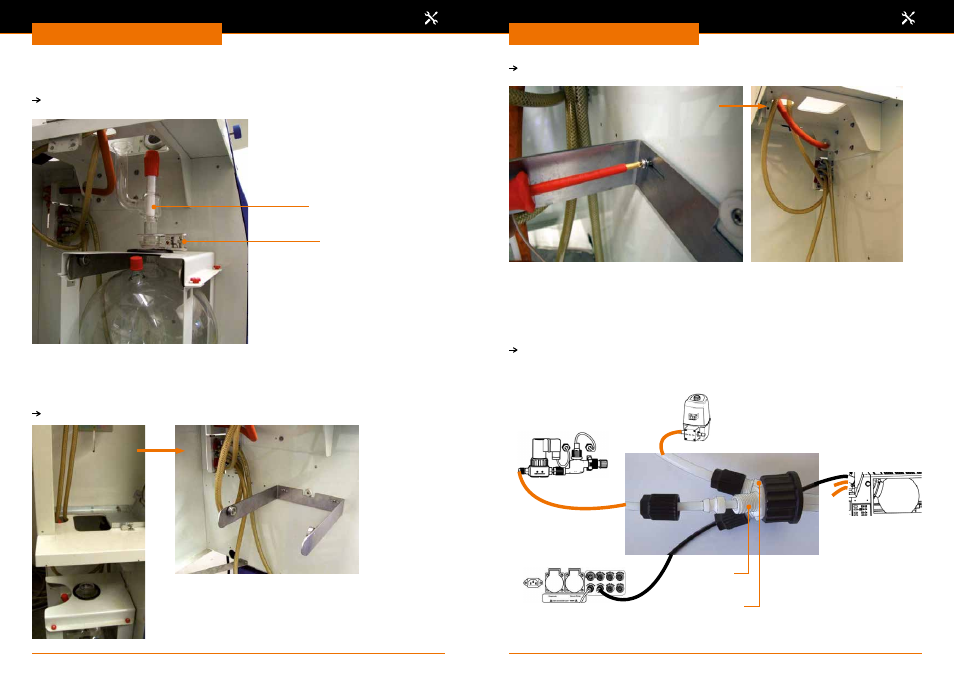

Installation
Installation
64
65
Valve body with valve
Multiple screw connection and distributor
Cassette
Remove the clamp (5) and the valve body (6) including the valve.
Route PTFE tube Ø 8 mm through connection (7) (only on Distimatic including
automatic drainage of residue) and PTFE tube Ø 6 mm through connection (8) and
secure in place so it is hand-tight.
Remove the supporting frame from the cassette.
Unscrew the supporting frame.
5
6
8
7
