Valve matrix, 3/2 way valve – Heidolph Automatic Module Distimatic User Manual
Page 36
Installation
Installation
70
71

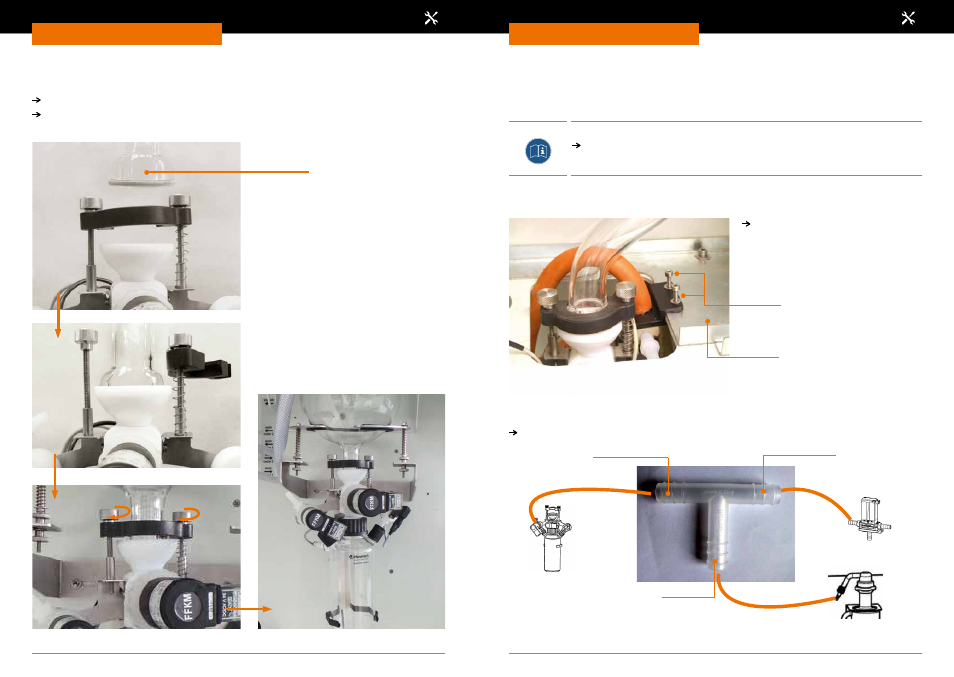

Valve matrix
Fix the valve matrix with the clamping unit to connection (20) on distributor.
Ensure that the interconnection point is evenly bolted together and does not leak.
20
Clamp 3/2 way valve onto metal
cladding (22) using the clamping
device and secure with adjusting
screws (21).
Connect vacuum tubes to connections (23), (24) and (25).
23
25
24
3/2 way valve,
hose connector T-type, and vacuum tube connections
Connection principle of the vacuum circuit
See chapter entitled „Function and connection principle” - Hei-VAP
Industrial Distimatic”- „Connection principle of the vacuum circuit”.
21
22
