Heidolph Automatic Module Distimatic User Manual
Page 34
Installation
Installation
66
67

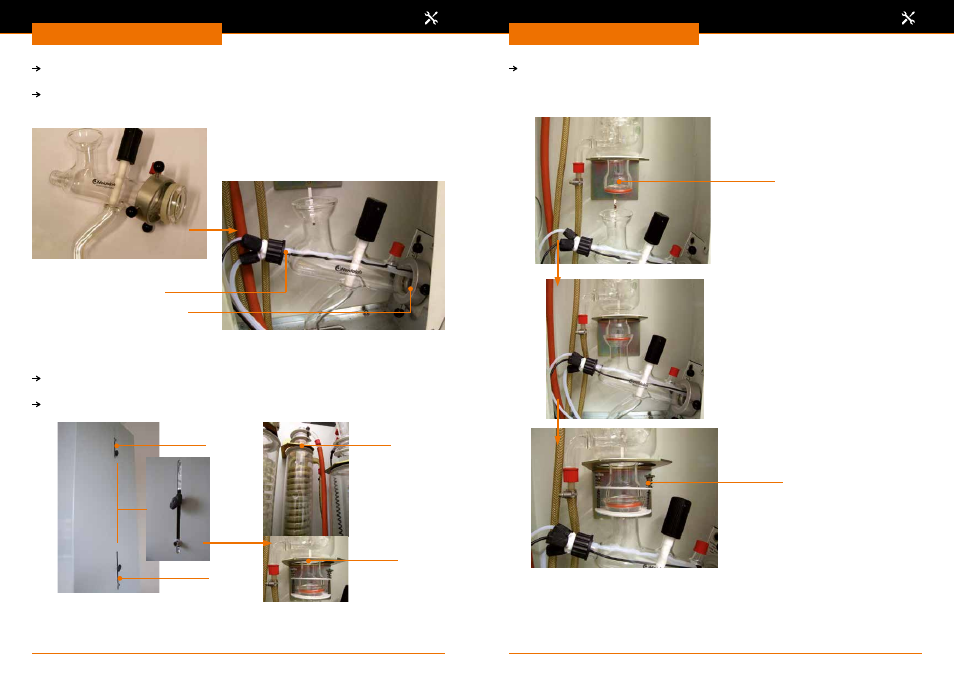

Connect the supplied distributor to connection (10) so it is hand-tight (only on
Distimatic including automatic drainage of residue)
Route PTFE tubes and flask sensor through distributor into the evaporating flask and
secure multiple screw connection at connection (9) until hand-tight.
Loosen thumb screw (11) on reverse side of protective cabinet and slide consoles
(12) downwards with the condenser.
Re-secure thumb screw (11) so it is hand-tight.
12
11
9
10
11
12
Fix the distributor to connection (13) with clamping unit (14).
13
14
