2

Unison

®

ERn Rack Mount Enclosure Installation Manual

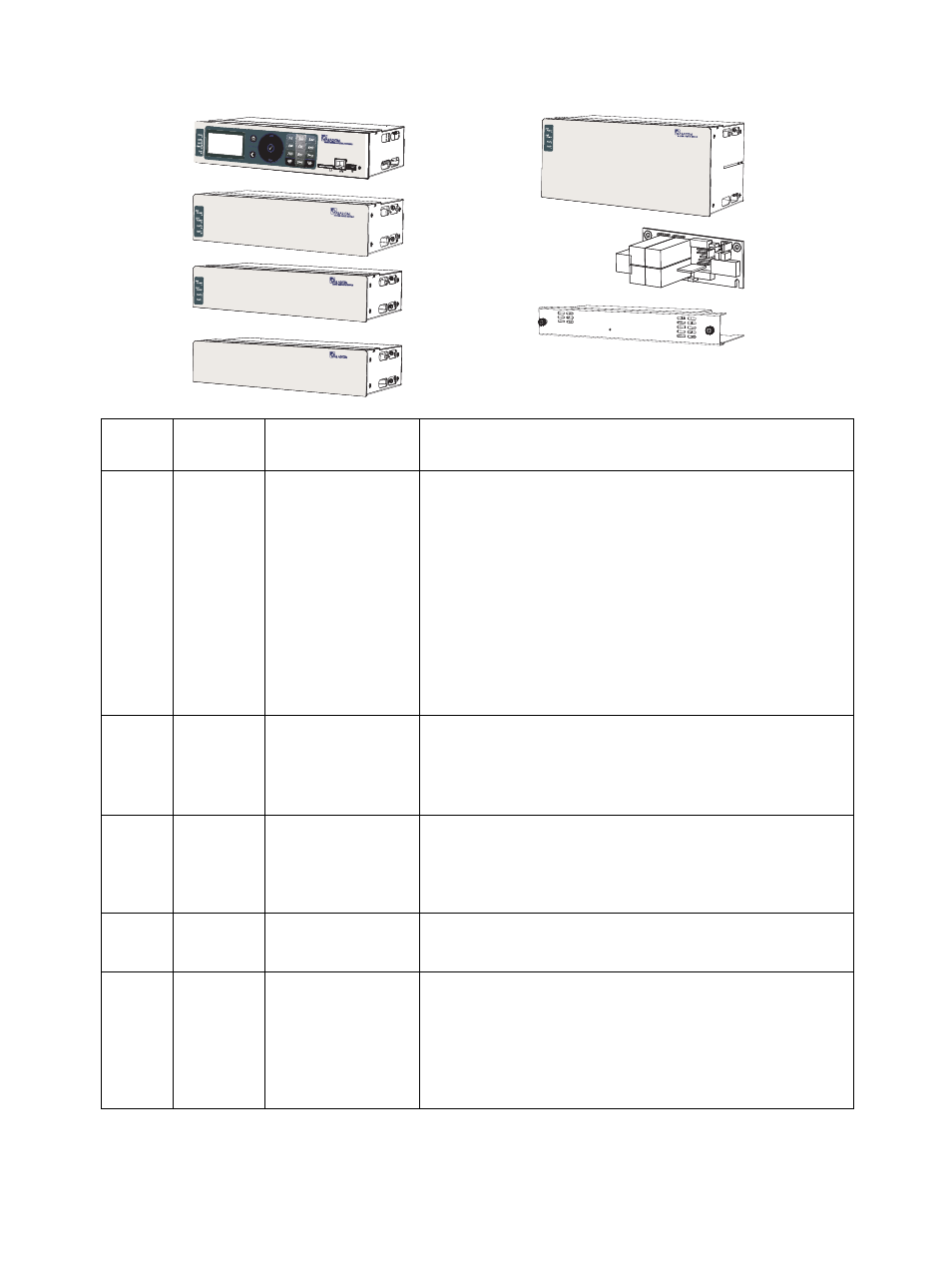

ERn Modules and Options

Model

Part
Number

Description

Notes

P ACP

7180A1001

Paradigm
Architectural Control
Processor

The Paradigm ACP provides powerful and flexible control for
architectural and theatrical applications with straightforward
integrated networking for both NetConnect and LinkConnect
networks.

• Tool-free installation into the ERn enclosure. Up to two

Paradigm ACPs may be installed in the ERn4 enclosure.

• Features an easy to navigate user interface which is usable

with the door attached.

• Supports up to 62 Unison control stations over the LonWorks

network with the use of Paradigm station power and repeater
modules.

• Provides two ports of one DMX universe each (512 addresses

each), individually switchable between input and output.

P-SPM

7182A1001

Paradigm Station
Power Module

The Paradigm SPM provides power for Unison control stations
over the LinkPower network and provides the station data bus
length up to 1,640 feet (500m).

• Tool-free installation into an ERn enclosure.

• Supplies LinkPower for up to 32 Unison control stations.

P-REP

7182A1003

Paradigm Station
Repeater Module

The Paradigm REP module extends the system station bus length
1,640 feet (500m) and increases the possible station count by an
additional 30 stations. For use only in an ERn4 enclosure.

• Tool-free installation into an ERn4 enclosure.
• For use in an ERn4 enclosure only.

ERn-BM

7180A1402

Airflow Option Module The ERn BM is used to fill empty module space in the ERn series

enclosure, maintaining the convection cooled design.

• Tool-free installation into an ERn enclosure.

P-DREP

7182A1004

Paradigm Dual Station
Repeater Module

The Paradigm DREP module extends the system station bus
length 3,280 feet (1,000m) through two separate topology-free
Echelon segments, each supporting 1,640 feet (500m).

• Tool-free installation into and ERn4 enclosure.
• The dual repeater module also adds support for up to 30

additional Unison architectural control stations.

• For use in an ERn4 enclosure only.

P-ACP

P-SPM

P-REP

P-DREP

ERn-RPS

URTO

ERn-BM
