20

Unison

®

ERn Rack Mount Enclosure Installation Manual

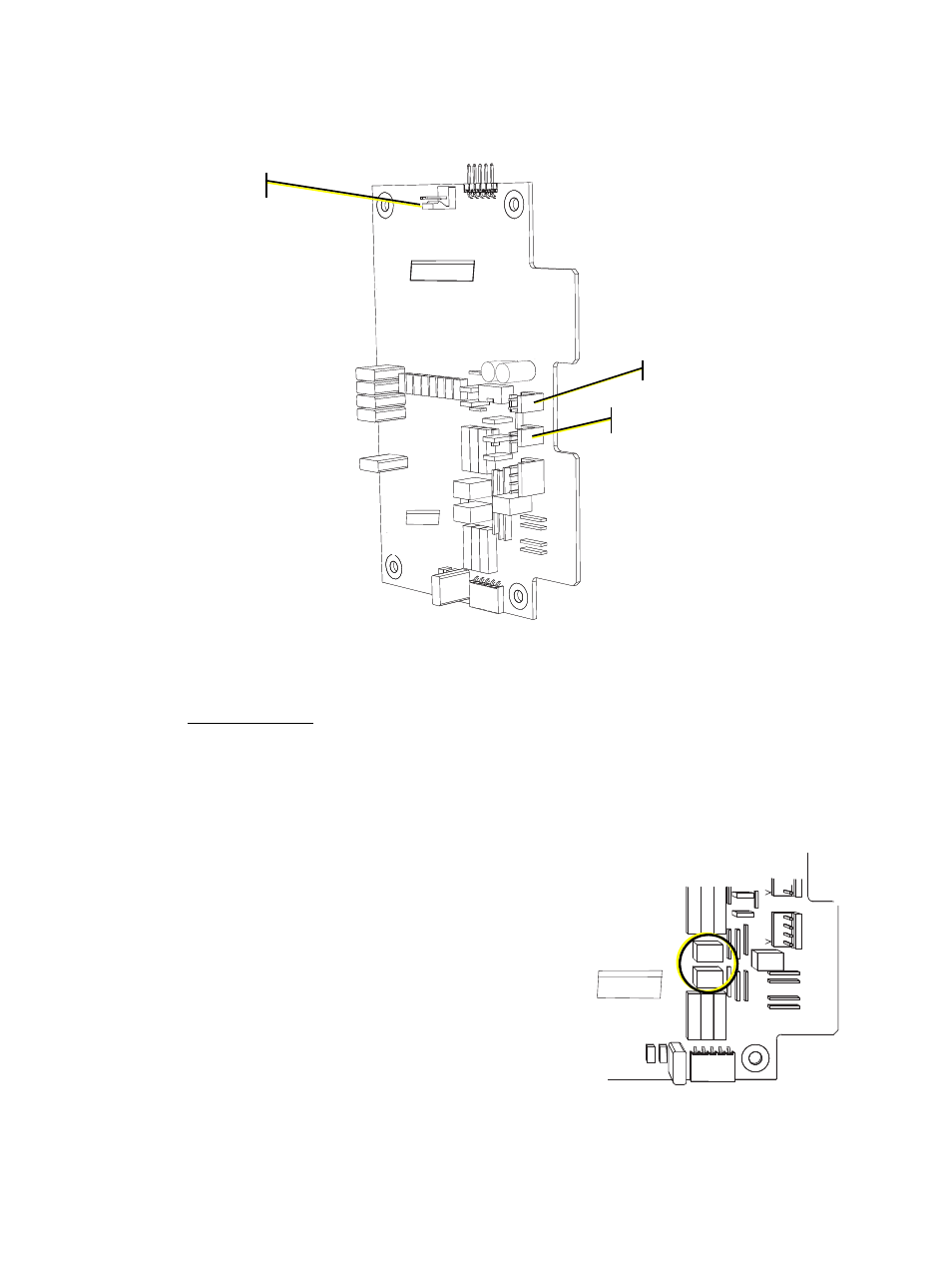

Right I/O Board Terminations

The right I/O board is located inside the ERn enclosure and serves are the connection point

for option kits, power supplies, and data terminations.

The “24 Vdc in” connection is the rack power supply (ERn-PS) connection and is connected

for you at the factory. The “ERn-RPS” and “Ride Thru / Batt” terminations are detailed in

“Rack Options”

on

page 22

.

Terminate DMX

DMX requires 120

termination at the last DMX device in the control run. Since an ERn

with a Paradigm module installed can utilize up to two DMX inputs (2 DMX runs) the right

I/O board provides convenient termination switches for use.

Notice the two termination switches labeled DMXA and DMXB on the right I/O board. Each

switch has three termination positions:

Source - reserved for RDM termination (future
development).

Off - no termination, DMX will pass through this
devices on to the next DMX device in the data
run.

End - termination is on. Used for the last DMX
device (ERn enclosure) that is physically
connected in the daisy chained DMX data run.

If DMXB is configured to output DMX, the

termination for DMXB should be switched to “OFF”.

24V In

RPS In

CDI

LON

DMX

B

DMX

A

Ride Thr

u/Batt

connection to rear panel I/O

connection to
rear panel I/O

ERn-RPS In

Ride Thru / Batt

24Vdc In

Ride Thru
/Batt

CDI port

LON

Full

Half

DMXA

DMXB

SRC Off End

connection to
rear panel I/O
