Introduction

1

Introduction

Welcome to the installation manual for the Unison

®

ERn rack mount external processing

enclosure. This manual contains the procedures for safe and efficient installation of ERn

series processing racks, including wire termination and option kit installation.

The ERn enclosure is available in two sizes, ERn2 and ERn4, which can be supplied for

surface mounting on a wall (reference the Unison ERn Wall Mount Enclosure Installation

Manual) or with rack mounting brackets for installation in a standard 19” equipment rack.

The ERn is available in three voltage options, 120, 230, and 240 VAC to meet your

installation requirements.

The ERn provides Unison architectural control to distributed Unison, Sensor3, or other

DMX512 dimming systems. Used stand alone or in multi-processor network systems, the

ERn series enclosure offers elegant low-profile rack mounting, integrated back-lit control

electronics, and the ultimate in architectural lighting control versatility.

The ERn2 enclosure provides two module slots, one slot for the Paradigm architectural

control processor (P-ACP) and one for use of the Paradigm station power module (P-SPM)

or a blank (air flow) module (ERn-BM). The accessory tray in the bottom of the enclosure

can be used for either an optional redundant rack power supply (ERn-RPS) or blank option

module.

The ERn4 enclosure provides four module slots, two slots which can be used for Paradigm

architectural control processor’s (P-ACP) and an additional two slots for use of option

modules such as the Paradigm station power module (P-SPM) or a Paradigm repeater

module (P-REP). Alternatively, the top two slots in the enclosure may be used for a dual

paradigm repeater module (P-DREP).The accessory tray in the bottom of the enclosure

can be used for either an optional redundant rack power supply (ERn-RPS) or the blank

option module.

Model

Voltage / Frequency

Notes

Rack

Mount

ERn2-RM-120

85-120 VAC, 47-63 Hz (single phase)

External processing rack configured for 19”
rack mounting utilizing 5 rack units (or 5U) of
rack space. Use with one Paradigm
architectural control processor (ACP) and one
option module.

ERn2-RM-230CE

180-265 VAC, 47-63Hz (single phase)

ERn2-RM-240

180-265 VAC, 47-63 Hz (single phase)

ERn4-RM-120

85-120 VAC, 47-63 Hz (single phase)

External processing rack configured for 19”
rack mounting utilizing 9 rack units (or 9U) of
rack space. Use with up to two Paradigm
architectural control processors (ACP) and up
to two option modules.

ERn4-RM-230CE

180-265 VAC, 47-63Hz (single phase)

ERn4-RM-240

180-265 VAC, 47-63 Hz (single phase)

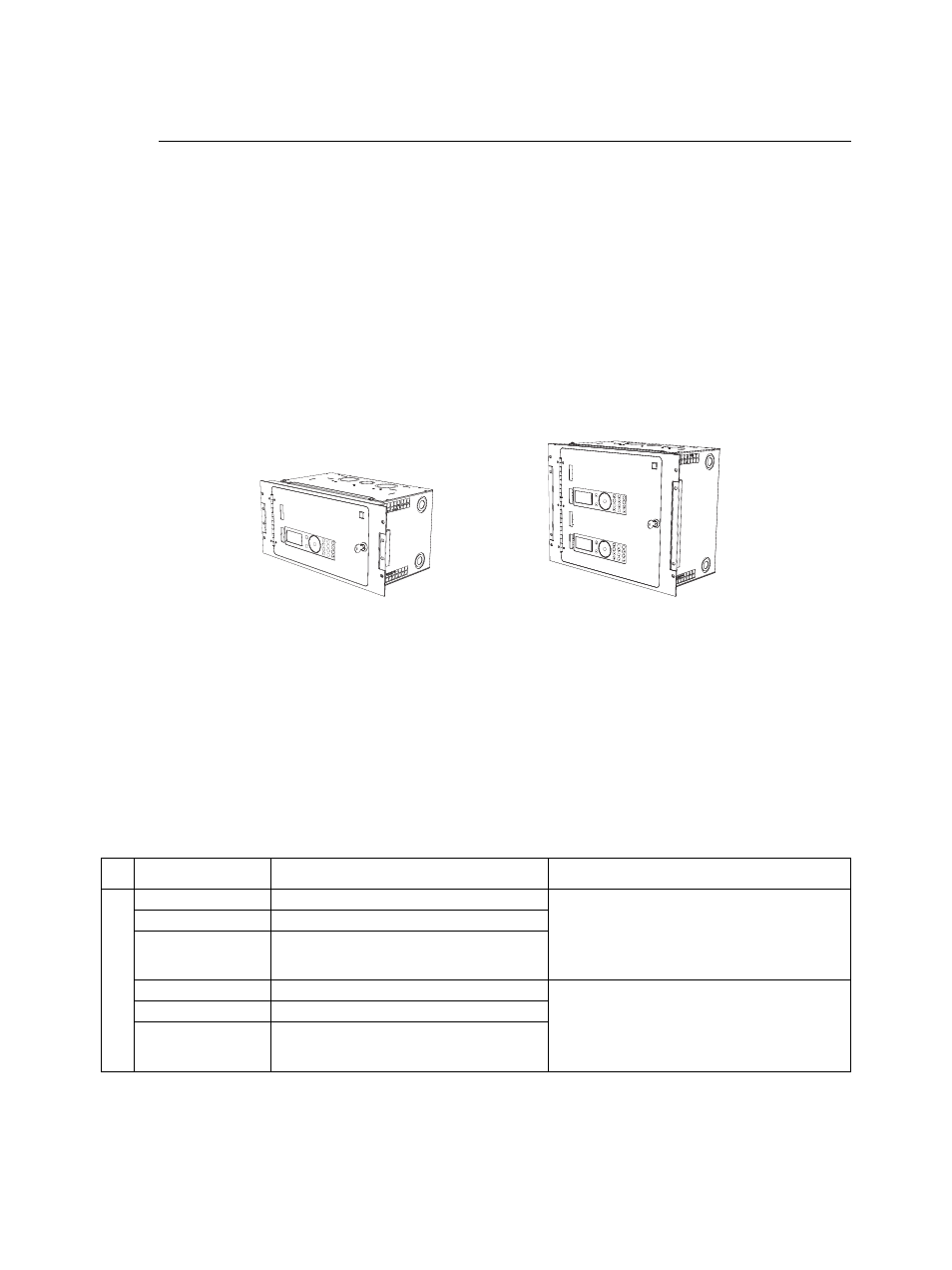

ERn2-RM

ERn4-RM
