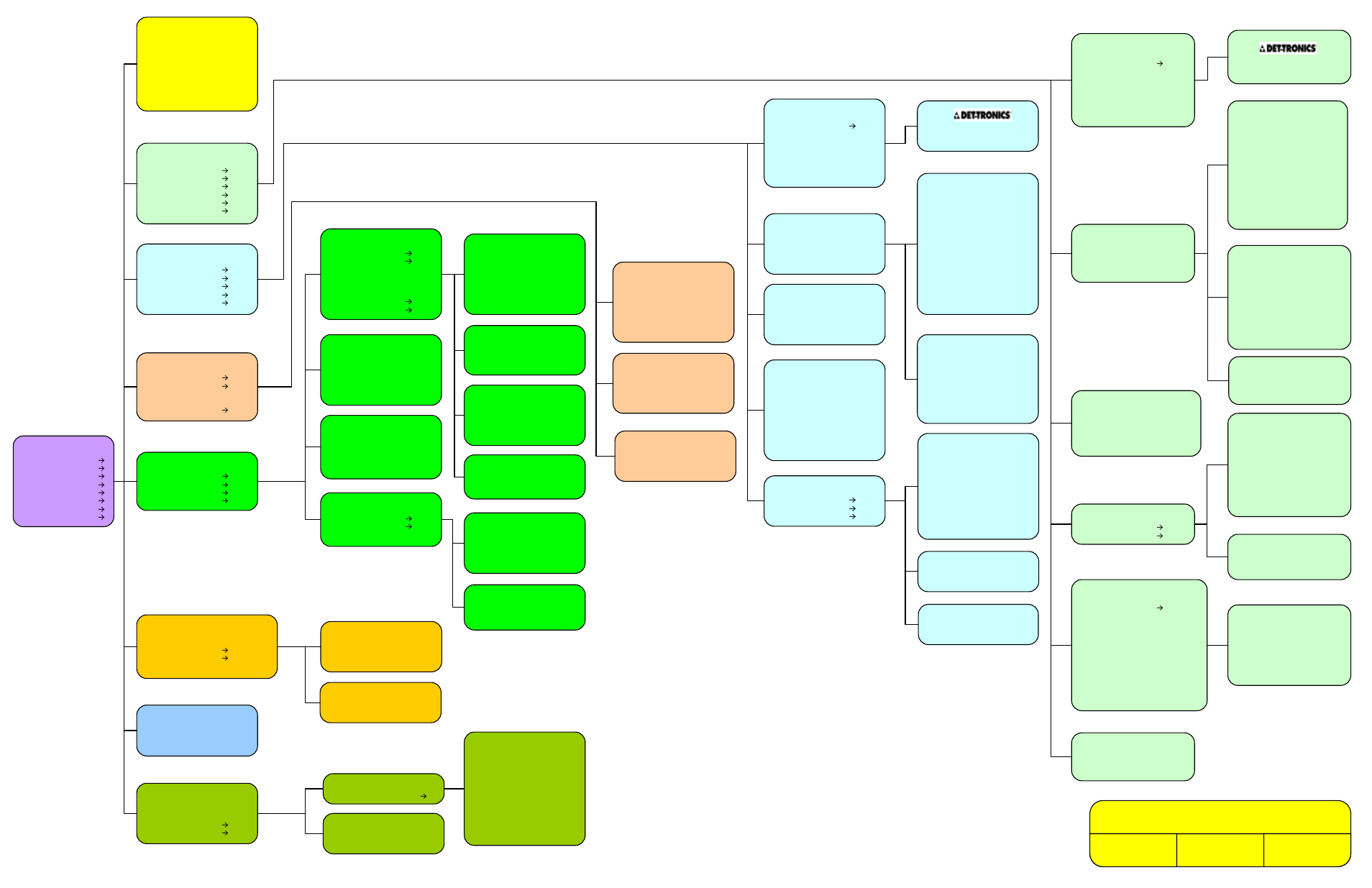

MAIN MENU
PROCESS VARS
DISPLAY STATUS
DEVICE STATUS
DISPLAY SETUP
DEVICE SETUP
DEVICE CAL
DISPLAY TEST
DEVICE TEST
PROCESS VARS
GAS NAME XXXXX
GAS VALUE X.XX
HIGH ALARM Y/N
LOW ALARM Y/N
ANALOG INPUT X.XX MA
URV X.XX
LRV X.XX
FAULT Y/N
DISPLAY SETUP
MODE SELECT
GENERAL OPTIONS
INPUT LOOP CAL
CONTRAST CONTRL
BACKLIGHT CTRL
DISPLAY TEST
SELF TEST
RESPONSE TEST
FAULT/STATUS
OP MODE XXXXX
FAULT Y/N
STATUS Y/N
LON FAULT Y/N
HISTORY
DISPLAY HISTORY
EVENT LOG
DISPLAY INFO
RTC
SERIAL NUMBER
XXXXX
I/O BOARD ID XXX
MFG DATE DD/MM/YYYY
F/W REV XXXXX
UNIVERSAL REV XXXXX
FIELD DEV REV XXXXX
RUNNING HOURS XXXXX
TEMPERATURE XX.XX C
HEATER CTRL AUTO/ON/OFF
BACKLIGHT CTRL AUTO/ON/OFF
INPUT VOLTAGE XX.XX
6901 WEST 110TH STREET
MINNEAPOLIS, MN 55438
USA
EVENT LOG
EVENT XXXXX
DATE DD/MMM/YYYY
TIME HH:MM:SS
RTC
DISPLAYED Y/N
SECONDS XXXXX
MINUTES XXXXX
HOURS XXXXX
DAY XXXXX
MONTH XXXXX
YEAR XXXXX
SENSOR INFO
ACTIVE XX.XX
REFERENCE XX.XX
RATIO XX.XX
ABSORPTION XX.XX
TEMPERATURE XX.XXC
VOL % XX.XX
USL XX.XX
LSL XX.XX
SPAN FACTOR XX.XX
FAULT/STATUS
OP MODE XXXXX
CAL STATE XXXXX
FAULT Y/N
STATUS Y/N
GENERAL INFO
MANUFACTURER
MODEL
ECLIPSE
TAG XXXXX
DESCRIPTOR XXXXX
MESSAGE XXXXX
FINAL ASSY NUM XXXXX
DEVICE ID XXXXX
HISTORY
DEVICE HISTORY
CALIBRATION LOG
EVENT LOG
DEVICE INFO
SERIAL NUMBER XXXXX
UNIVERSAL REV XXXXX
FIELD DEV REV XXXXX
S/W REV XXXXX
DEVICE STATUS
GENERAL INFO
FAULT/STATUS
DEVICE INFO
SENSOR INFO
HISTORY
EVENT LOG
EVENT ID XXXXX
HOURS XXXXX
CALIBRATION LOG
CAL ID XXXXX
HOURS XXXXX
STATUS
CAL ACTIVE ON/OFF
WARM UP ON/OFF
LOW ALARM ON/OFF
HIGH ALARM ON/OFF
HART SELF TEST ON/OFF
CHANGE CONFIG ON/OFF
FAULT
CAL FAULT ON/OFF
DIRTY OPTICS ON/OFF
LAMP FAULT ON/OFF
START CAL FAULT ON/OFF
EE 1 FAULT ON/OFF
EE 2 FAULT ON/OFF
REF ADC SAT ON/OFF
ACTIVE ADC SAT ON/OFF
24V FAULT ON/OFF
12V FAULT ON/OFF
5V FAULT ON/OFF
ZERO DRIFT FAULT ON/OFF
FLASH CRC FAULT ON/OFF
RAM FAULT ON/OFF
D/A TRIM
ZERO TRIM
GAIN TRIM
DEVICE TEST
SELF TEST
RESPONSE TEST
LOOP TEST
D/A TRIM
SET 4-20 MA
3.5 MA
4 MA
6 MA
8 MA
10 MA
12 MA
14 MA
16 MA
18 MA
20 MA
LOOP TEST
SET 4-20 MA
DEVICE CAL
CAL GAS CONC XX.XX
CAL GAS TYPE
CALIBRATION
CAL DATE
DD/MMM/YYYY
CALIBRATION
EXECUTE
ABORT
DEVICE SETUP
DEVICE OPTION
ALARM SETTING
HART OPTION
RS485
HART OPTION
TAG XXXXX
DESCRIPTOR XXXXX
MESSAGE XXXXX
FINAL ASSY NUM XXXXX
DEVICE OPTION
GAS TYPE
UNIT OF MEASURE
URV
XX.XX
LRV XX.XX
USL XX.XX
LSL XX.XX
ANALOG CODE VAL
ANALOG FLT CODE
RS485
BAUD RATE
PARITY
POLL ADDRESS
XXX
BAUD RATE
1200
2400
4800
9600
19.2K
PARITY
NONE
EVEN
ODD
ALARM SETTING
RST LATCH ALARMS
HGH ALARM LEVEL
XX.XX
HGH ALARM LATCH Y/N
LOW ALARM LEVEL XX.XX
LOW ALARM LATCH Y/N
UNIT OF MEASURE
%LFL
PPM
VOL %
ANALOG CODE VAL
WARM UP XX.XX
BLOCKED OPTIC XX.XX
CALIBRATION XX.XX
FAULT XX.XX
GAS TYPE
METHANE
ETHANE
PROPANE
ETHYLENE
PROPYLENE
BUTANE
SPECIAL
MODE SELECT
HART DEVICE
PIR9400
C706X
505
NTMOS
CGS
GENERIC DEVICE
GENERAL OPTIONS
TAG XXXXX
DESCRIPTOR XXXXX
MESSAGE XXXX
FINAL ASSY NUM XXXX
STATUS
ANY FAULT ON/OFF
CAL ACTIVE ON/OFF
WARM UP ON/OFF
LOW ALARM ON/OFF
HIGH ALARM ON/OFF
LON ATTACHED ON/OFF
RESPONSE TEST ON/OFF
MANUAL SELF TEST ON/OFF
INPUT HART ON/OFF
GENERAL INFO
MANUFACTURER
MODEL
UD-10
TAG XXXXX
DESCRIPTOR XXXXX
MESSAGE XXXXX
FINAL ASSY NUM XXXXX
DEVICE ID XXXXX
DEVICE HISTORY
RUNNING HOURS XXXXX
MAX TEMP XX.XXC
MAX TEMP TIME XX:XX:XX
MIN TEMP XX.XXC
MIN TEMP TIME XX:XX:XX
RESET MAX MIN
MAX RESET TEMP
XX.XXC
MAX RESET TIME XX:XX:XX
MIN RESET TEMP XX.XXC
MIN RESET TIME XX:XX:XX
ANALOG FAULT CODE
ECLIPSE
PIR9400
USER DEFINED
CAL GAS TYPE
SAME AS MEASURE GAS
METHANE
PROPANE
DISPLAY STATUS
GENERAL INFO
FAULT/STATUS
LON CONFIG
HISTORY
DISPLAY INFO
DEBUG MENU
6901 WEST 110TH STREET
MINNEAPOLIS, MN 55438
USA
DEBUG MENU
HART ERRORS XXXXX
ANALOG INPUT XX.XX MA
LON COMM ERRORS XXXX
LON CONFIG
HGH ALARM LEVEL XX.XX
LOW ALARM LEVEL XX.XX
CAL GAS CONC XX.XX
STATUS RATE XXXXXX MS
LON ADDRESS XXXXXX
LON FAULT
INVALID CONFIG ON/OFF
LON OFFLINE ON/OFF
TERM BD FAULT ON/OFF
BACKLIGHT CTRL
OFF
ON
AUTOMATIC
DISPLAY HISTORY
RUNNING HOURS XXXX
MAX TEMP XX.XX C
MAX TEMP TIME XX:XX:XX
MIN TEMP XX.XX C
MIN TEMP TIME XX:XX:XX
RESET MAX MIN
MAX RESET TEMP
XX.XX C
MAX RESET TIME XX:XX:XX
MIN RESET TEMP XX.XX C
MIN RESET TIME XX:XX:XX
20-Feb-13 PIRECL 4.21
Detector Electronics
FAULT
LOW CAL LINE ON/OFF
EE FAULT ON/OFF
ADC FAULT ON/OFF
24V FAULT ON/OFF
FLASH FAULT ON/OFF
RAM FAULT ON/OFF
WDT FAULT ON/OFF
12V FAULT ON/OFF
5V FAULT ON/OFF
1.25V FAULT ON/OFF
INPUT LOOP FAULT ON/OFF
0V FAULT ON/OFF
ADC REF FAULT ON/OFF
