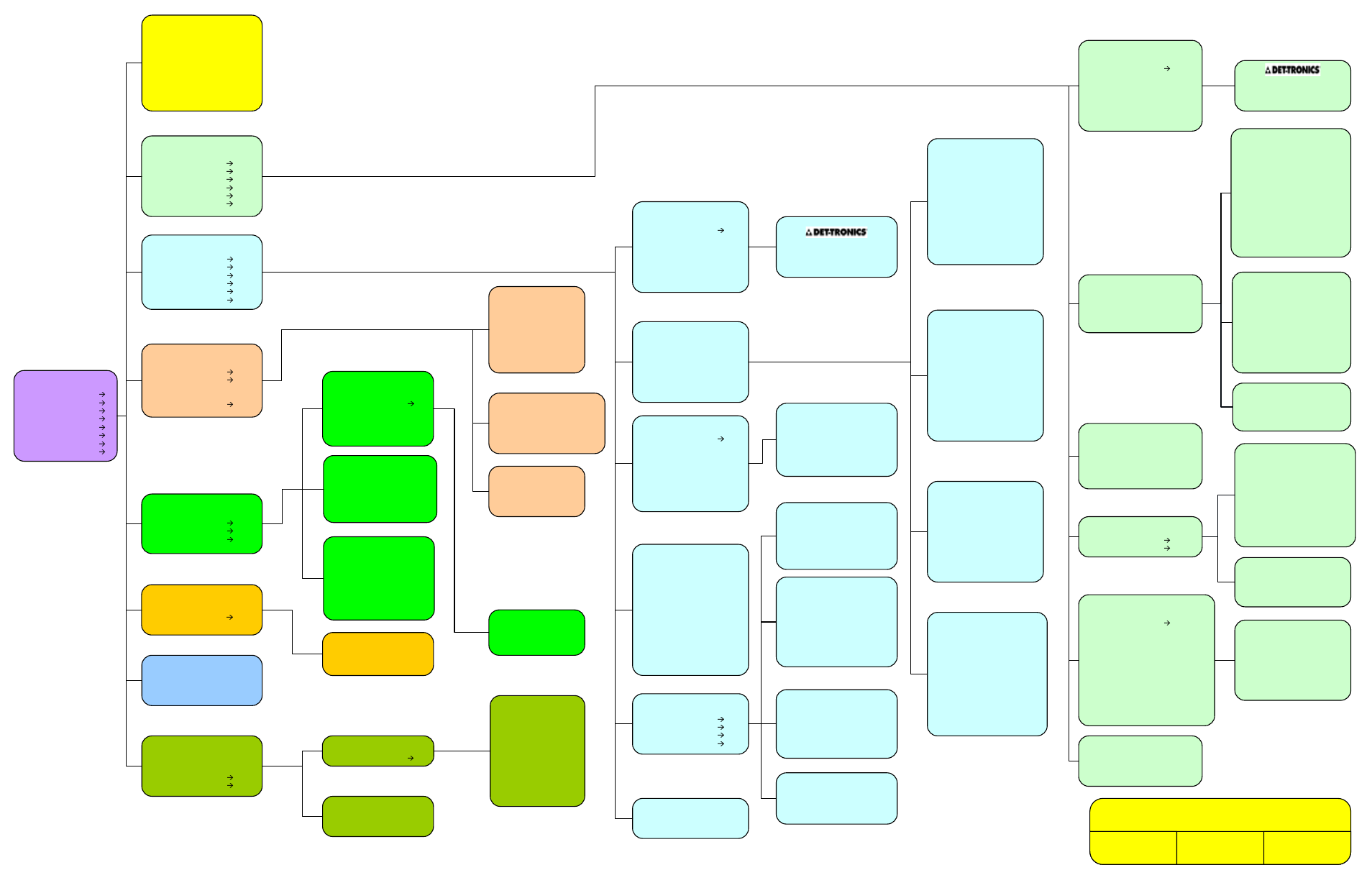

MAIN MENU
PROCESS VARS
DISPLAY STATUS
DEVICE STATUS
DISPLAY SETUP
DEVICE SETUP
DEVICE CAL
DISPLAY TEST
DEVICE TEST
PROCESS VARS
GAS NAME XXXXX
GAS VALUE X.XX
HIGH ALARM Y/N
LOW ALARM Y/N
ANALOG INPUT X.XX MA
URV X.XX
LRV X.XX
FAULT Y/N
DISPLAY STATUS
GENERAL INFO
FAULT/STATUS
LON CONFIG
HISTORY
DISPLAY INFO
DEBUG MENU
DISPLAY SETUP
MODE SELECT
GENERAL OPTIONS
INPUT LOOP CAL
CONTRAST CONTRL
BACKLIGHT CTRL
DISPLAY TEST
SELF TEST
RESPONSE TEST
FAULT/STATUS
OP MODE XXXXX
FAULT Y/N
STATUS Y/N
LON FAULT Y/N
GENERAL INFO
MANUFACTURER
MODEL
UD-10
TAG XXXXX
DESCRIPTOR XXXXX
MESSAGE XXXXX
FINAL ASSY NUM XXXXX
DEVICE ID XXXXX
HISTORY
DISPLAY HISTORY
EVENT LOG
DISPLAY INFO
RTC
SERIAL NUMBER
XXXXX
I/O BOARD ID XXX
MFG DATE DD/MM/YYYY
F/W REV XXXXX
UNIVERSAL REV XXXXX
FIELD DEV REV XXXXX
RUNNING HOURS XXXXX
TEMPERATURE XX.XX C
HEATER CTRL AUTO/ON/OFF
BACKLIGHT CTRL AUTO/ON/OFF
INPUT VOLTAGE XX.XX
STATUS
ANY FAULT ON/OFF
CAL ACTIVE ON/OFF
WARM UP ON/OFF
LOW ALARM ON/OFF
HIGH ALARM ON/OFF
LON ATTACHED ON/OFF
RESPONSE TEST ON/OFF
MANUAL SELF TEST ON/OFF
INPUT HART ON/OFF
EVENT LOG
EVENT XXXXX
DATE DD/MMM/YYYY
TIME HH:MM:SS
RTC
DISPLAYED Y/N
SECONDS XX
MINUTES XX
HOURS XX
DAY XX
MONTH XX
YEAR XX
MODE SELECT
HART DEVICE
PIR9400
C706X
505
NTMOS
CGS
GENERIC DEVICE
D/A TRIM
ZERO TRIM
GAIN TRIM
DEVICE TEST
SELF TEST
RESPONSE TEST
LOOP TEST
D/A TRIM
LOOP TEST
SET 4-20 MA
DEVICE CAL
CAL GAS CONC XX.XX
CALIBRATION
CHANGE SNSR TYPE
CALIBRATION
EXECUTE
ABORT
DEVICE SETUP
DEVICE OPTION
HART OPTION
RTC
DEVICE STATUS
GENERAL INFO
FAULT/STATUS
TX INFO
SENSOR INFO
HISTORY
DEBUG MENU
HISTORY
TX HISTORY
SENSOR HISTORY
CALIBRATION LOG
EVENT LOG
GENERAL INFO
MANUFACTURER
MODEL
FGP_TX
TAG XXXXX
DESCRIPTOR XXXXX
MESSAGE XXXX
FINAL ASSY NUM XXXXX
DEVICE ID XXXXX
FAULT/STATUS
OP MODE XXXXX
CAL STATE XXXXX
TX STATUS Y/N
TX FAULT Y/N
SENSOR STATUS Y/N
SENSOR FAULT Y/N
TX INFO
RTC
SERIAL NUMBER
XXXXX
H/W REV XX.XX
F/W REV XX.XX
UNIVERSAL REV XXXXX
FIELD DEV REV XXXXX
S/W REV XX.XX
RUNNING HOURS XXXXX
TEMPERATURE XX.XXC
SENSOR INFO
SENSITIVITY XXXXX
GAS TYPE XXXXX
SERIAL NUMBER XXXXX
H/W REV XX.XX
F/W REV XX.XX
REV XXXXX
USL XX.XX
LSL XX.XX
RUNNING HOURS XXXXX
CAL POINT ZERO XX.XX
CAL POINT SPAN XX.XX
PPM HOURS XXXXX
TEMPERATURE XX.XXC
EVENT LOG
EVENT XXXXX
DATE DD/MMM/YYYY
TIME HH:MM:SS
CALIBRATION LOG
CAL ID XXX
DATE DD/MMM/YYYY
TIME HH:MM:SS
ZERO XX.XX
SPAN XX.XX
RTC
SECONDS XX
MINUTES XX
HOURS XX
DAY XX
MONTH XX
YEAR XX
DEBUG MENU
HART ERRORS XXXXX
ANALOG INPUT XX.XX MA
LON COMM ERRORS XXXX
SET 4-20 MA
3.5 MA
4 MA
6 MA
8 MA
10 MA
12 MA
14 MA
16 MA
18 MA
20 MA
6901 WEST 110TH STREET
MINNEAPOLIS, MN 55438
USA
TX HISTORY
RUNNING HOURS XXXX
MAX TEMP XX.XX C
MAX TEMP TIME XX:XX:XX
MIN TEMP XX.XX C
MIN TEMP TIME XX:XX:XX
DISPLAY HISTORY
RUNNING HOURS XXXX
MAX TEMP XX.XX C
MAX TEMP TIME XX:XX:XX
MIN TEMP XX.XX C
MIN TEMP TIME XX:XX:XX
RESET MAX MIN
MAX RESET TEMP
XX.XX C
MAX RESET TIME XX:XX:XX
MIN RESET TEMP XX.XX C
MIN RESET TIME XX:XX:XX
TX STATUS
TX FAULT ON/OFF
WARM UP ON/OFF
CHANGE CONFIG ON/OFF
MULTI DROP ON/OFF
WRITE PROTECT ON/OFF
SELF TEST ON/OFF
RESPONSE TEST ON/OFF
CURRENT FIXED ON/OFF
LOOP TEST ON/OFF
FACTORY MODE ON/OFF
SNSR ASSY REMOVE ON/OFF
TX FAULT
EE FAULT ON/OFF
ADC FAULT ON/OFF
DAC FAULT ON/OFF
LOW VOLTAGE ON/OFF
FLASH CRC FAULT ON/OFF
RAM FAULT ON/OFF
TEMP FAULT ON/OFF
SOFTWARE FAULT ON/OFF
EE SAFETY FAULT ON/OFF
ZERO DRIFT FAULT ON/OFF
SENSOR MISMATCH ON/OFF
SENSOR FAULT ON/OFF
SENSOR STATUS
SENSOR FAULT ON/OFF
WARM UP ON/OFF
CAL ACTIVE ON/OFF
CAL SWITCH ON/OFF
WRITE PROTECT ON/OFF
EOL SENSOR ON/OFF
CHANGE CONFIG ON/OFF
GEN ACTIVE ON/OFF
GEN INSTALLED ON/OFF
DEBUG MENU
MODBUS ERRORS XXXX
SENSOR HISTORY
RUNNING HOURS XXXX
MAX TEMP XX.XX C
MAX TEMP TIME XX:XX:XX
MIN TEMP XX.XX C
MIN TEMP TIME XX:XX:XX
RESET MAX MIN
MAX RESET TEMP
XXXX C
MIN RESET TEMP XXXX C
FAULT
LOW CAL LINE ON/OFF
EE FAULT ON/OFF
ADC FAULT ON/OFF
24V FAULT ON/OFF
FLASH FAULT ON/OFF
RAM FAULT ON/OFF
WDT FAULT ON/OFF
12V FAULT ON/OFF
5V FAULT ON/OFF
1.25V FAULT ON/OFF
INPUT LOOP FAULT ON/OFF
0V FAULT ON/OFF
ADC REF FAULT ON/OFF
LON CONFIG
HGH ALARM LEVEL XX.XX
LOW ALARM LEVEL XX.XX
CAL GAS CONC XX.XX
STATUS RATE XXX MS
LON ADDRESS XXX
6901 WEST 110TH STREET
MINNEAPOLIS, MN 55438
USA
GENERAL OPTIONS
TAG XXXXX
DESCRIPTOR XXXXX
MESSAGE XXXX
FINAL ASSY NUM XXXX
LON FAULT
INVALID CONFIG ON/OFF
LON OFFLINE ON/OFF
TERM BD FAULT ON/OFF
BACKLIGHT CTRL
OFF
ON
AUTOMATIC
HART OPTION
TAG XXXXX
DESCRIPTOR XXXXX
MESSAGE XXXX
FINAL ASSY NUM XXXX
DEVICE OPTION
GAS NAME XXXX
UNIT OF MEASURE
URV
XXXX
LRV XXXX
USL XXXX
LSL XXXX
RTC
SYNC W/DISP
SECONDS
XX
MINUTES XX
HOURS XX
DAY XX
MONTH XX
YEAR XX
UNIT OF MEASURE
PPM
%
MGM3
20-Feb-13 GT3000 4.21
Detector Electronics
SENSOR FAULT
CAL FAULT ON/OFF
EE FAULT ON/OFF
ADC FAULT ON/OFF
ADC CNTR FAULT ON/OFF
3V FAULT ON/OFF
ZERO DRIFT FAULT ON/OFF
FLASH CRC FAULT ON/OFF
RAM FAULT ON/OFF
TEMP FAULT ON/OFF
COMM FAULT ON/OFF
CELL MISSING FLT ON/OFF
GEN FAULT ON/OFF
