SECTION 1 FRAME

S

E

C

T

I

O

N

1

F

R

A

M

E

FIGURE 1-7.

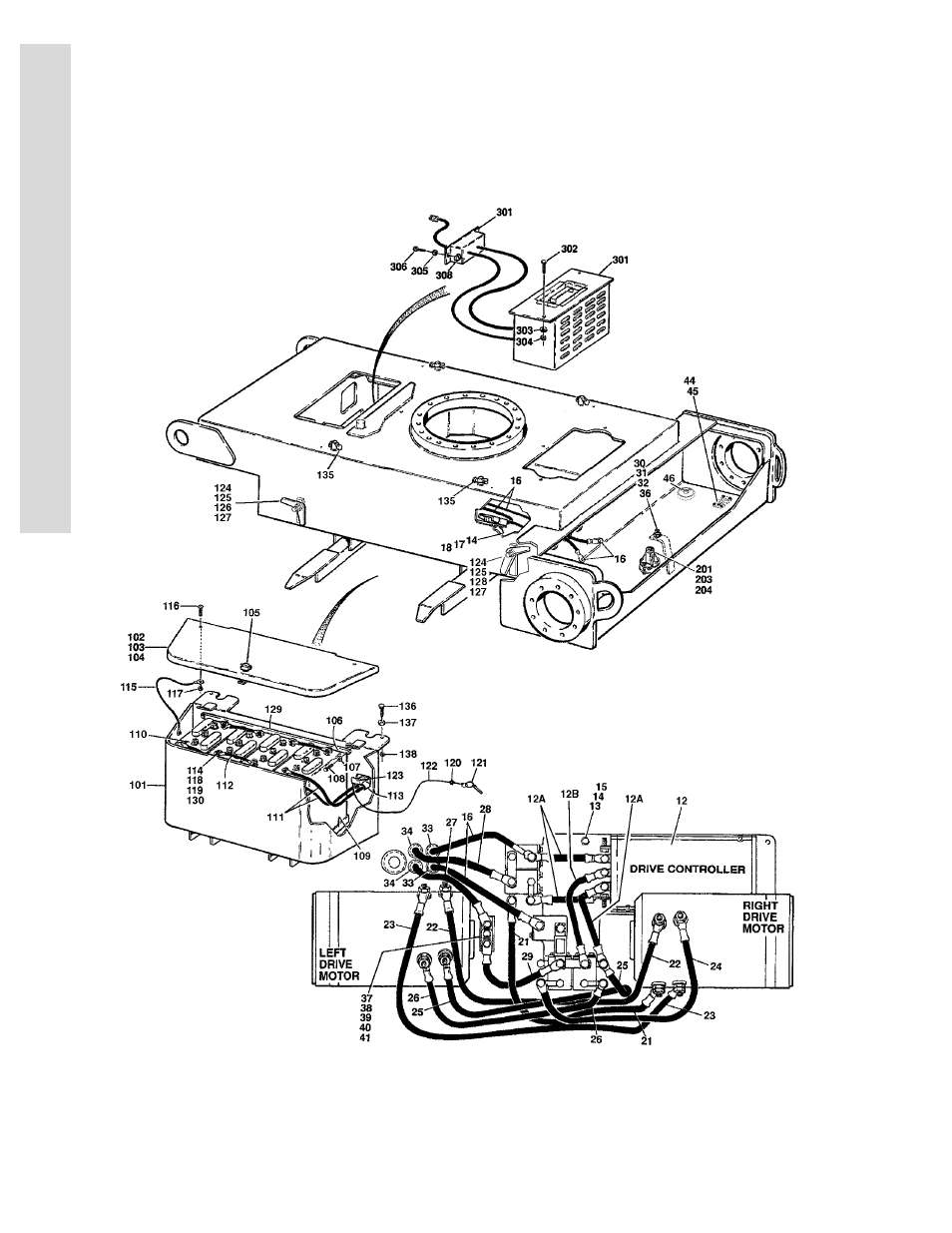

ELECTRICAL COMPONENTS INSTALLATION (FRAME MOUNTED)
