2.3.2 Control board
The control board contains the key pad, the display and the joystick, and, to the side, the
selection dial. The direction of movement and the speed of the joystick are transferred to
the capillary. The responsitivity of the movement and the size of the working range are
predefined in the software setting. On the control panel, the working range can be
selected and modified via the selection dial.

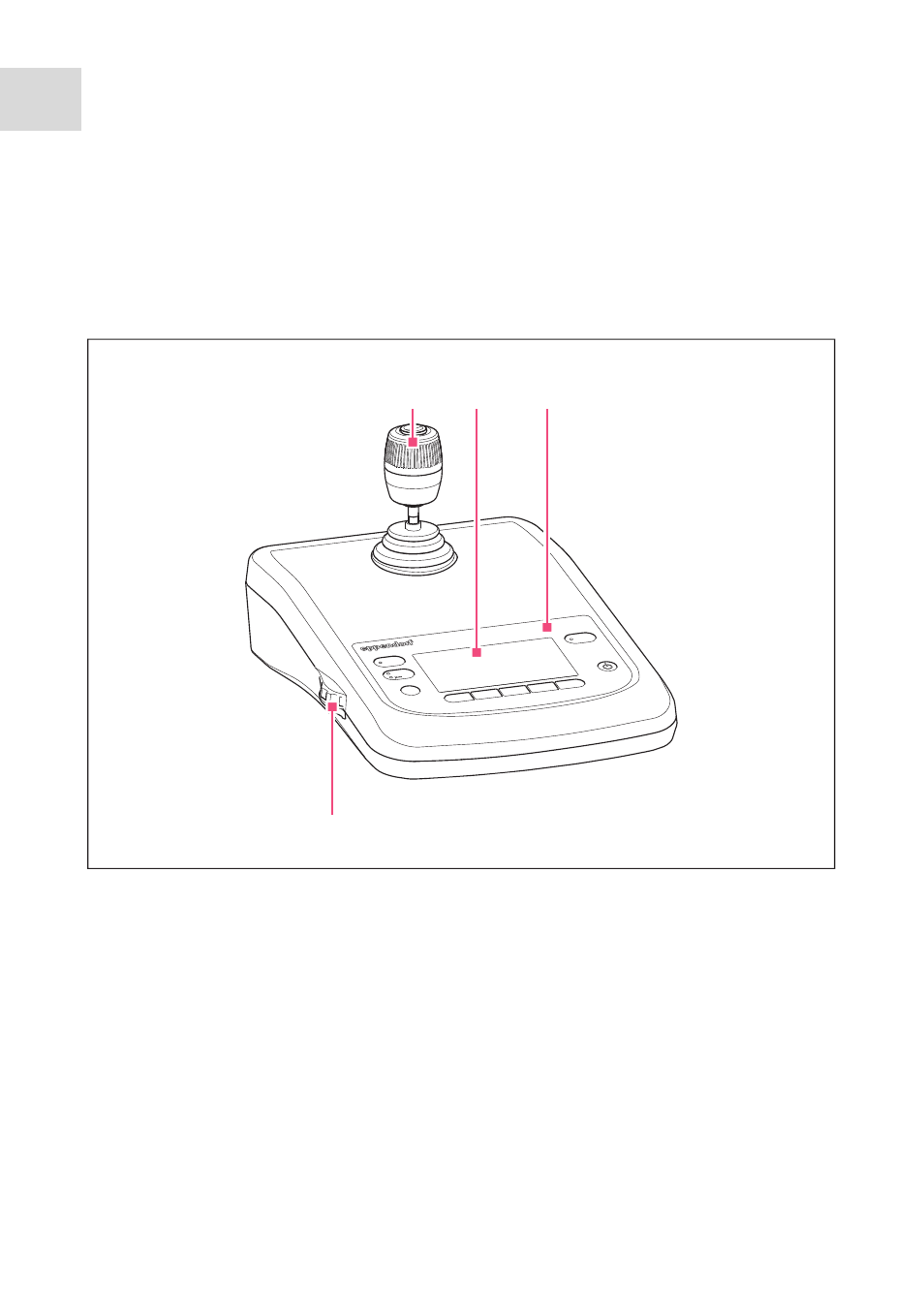

Abb. 2-3:Control board - front
Fig. 2-3: Control board - front
1 Joystick
Dynamic movement
2 Display
3 Control panel
4 Selection dial
For increasing or reducing the speed
home
menu
fine fine
coarse
4
2 3 1
