73

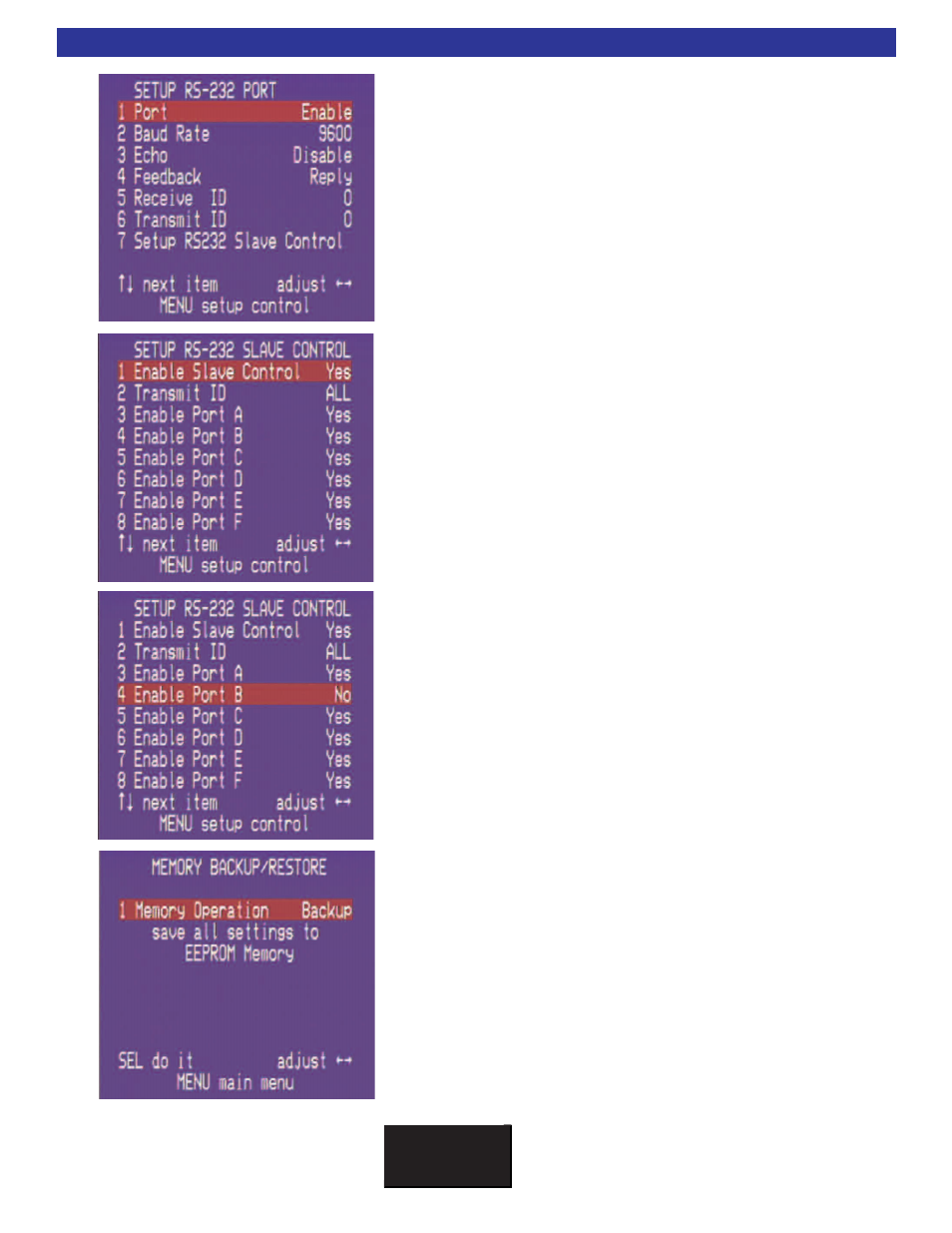

Control System Setup
RS-232 Options
Note: Parameters 1 through 7 do not need to be changed and
should be left for advanced programmers.
Use the Up/Down keys to select a setting to configure. Then
use the Left/Right keys to select from one of the available
options. NOTE: Please see page 51 of this manual describing
details about the RS-232 options.
RS-232 Slave Control
RS-232 Slave control enables set up for communication
between multiple connected B & K products.
The Transmit ID is normally set to ALL. If ALL is selected, con-
trol of any connected B & K products will then be possible.
However, if you select the ID of a specific B & K product, only
that unit will be controlled. This is useful if several B & K prod-
ucts are interconnected for other purposes.
YES (Default) - Enables all RS-232 commands to be transmitted
out the zones port.
NO - Only disables only auto BKC-DIP commands from being
transmitted out the zones port.
Note: Macro strings (Serial) and Keypad feedback information
will still be transmitted out the zones port.
When Memory Backup/Restore is highlighted, press the
SEL/ENTER key to backup all system settings to the EEPROM.
To Retore all system settings, use the Left/Right keys to change
the option to RESTORE. Press the SEL/ENTER key to restore
all settings that were previously backed up on the EEPROM.
If the system has never been backed up, selecting RESTORE
will restore the unit to factory default.
Refer to page 23 for the CT 600.3,600.1 and 300.3 reset proce-
dure.
