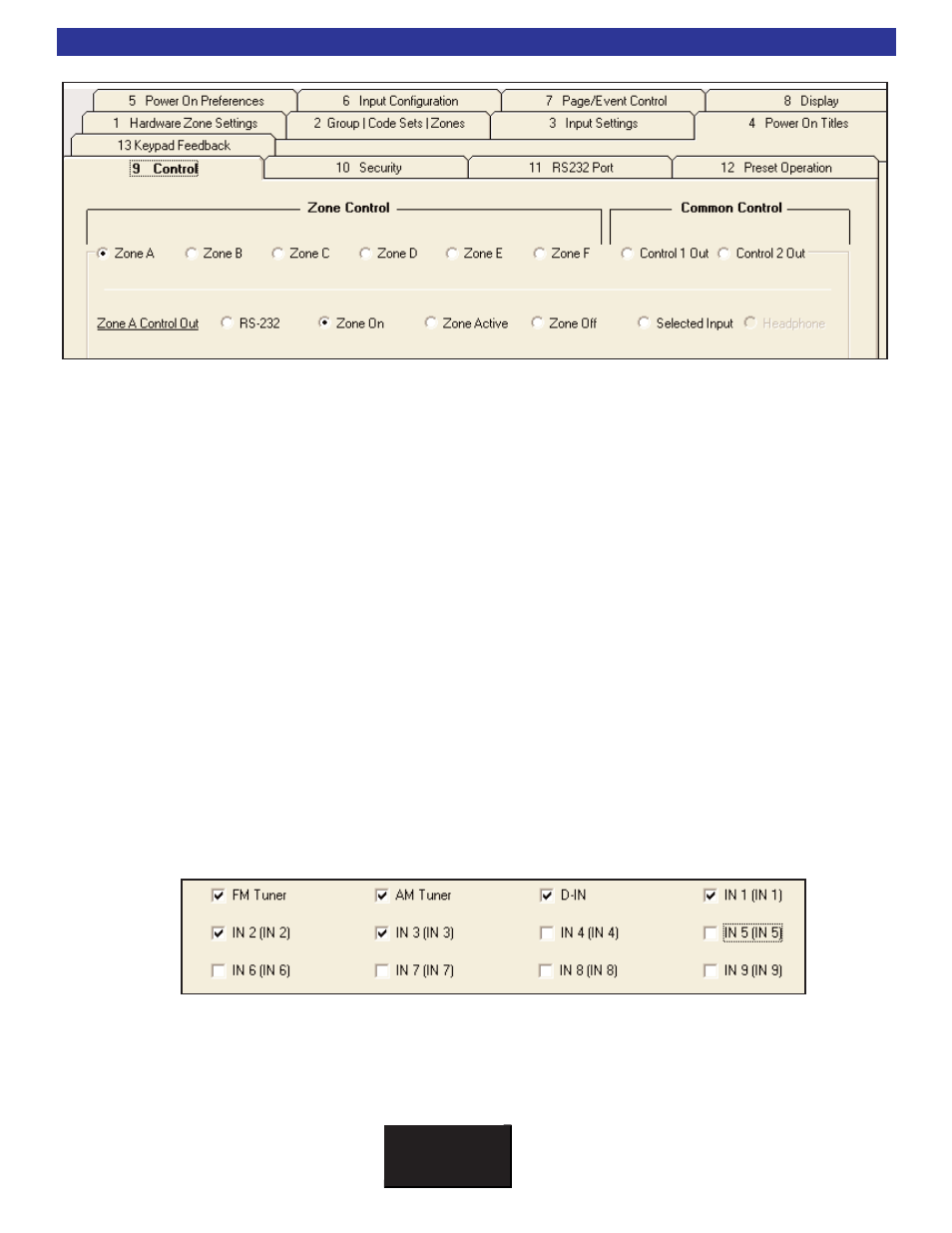

Control - Tab 9

1. Zone Control:

Since a CT 600.3/600.1 has 6 hardware zones, BK Suite will display a zone button corresponding to each of
the 6 zones (If a CT 300.3 is being programmed, three zone buttons will appear.) Select the zone you wish to
adjust the settings of.

2. Zone Control Out:

Control Out is a switchable 12VDC 200mA control voltage useful for status lights on keypads, power strips,
external amplifiers or any other voltage sensing device. The default setting of each of the individual Zone
Control Output is Zone ON - the voltage turns on only when that particular zone is on and turns off when the
zone is off.

RS-232 -

If you select RS-232, only an RS-232 command will turn on or off that zone's Control Out.

Zone On -

The Control Out turns on only when that particular zone is on and turns off when the

zone is off (Default Setting)

Zone Active -

The Control Out will turn on only if the zone is on AND the CT Receiver may

detect an audio or video signal on the input the zone has selected.

Zone Off -

The Control Out will turn on only if the zone is off.

Selected Input -

The Control Out is on only if the zone is on and this input is selected (switched

to) by the user. Note that when this option is selected, the input check boxes are now active
(no longer grayed out). Check the box next to the inputs that are desired to turn the 12VDC Zone
Control Out on. The input does not have to have a A/V signal present in order for the 12VDC trigger to be on.

2. Common Control Out:

Control Out is a switchable 12VDC 200mA control voltage useful for triggering power strips, external ampli-
fiers or any other voltage sensing device. The default setting of both of the Control Output is Any Zone ON -
the voltage turns on when any zone is on and turns off when all zones are off.
