11
Basic System Hookup
Keypads connect to the Zone Control terminals on the CT Receiver using CAT-5 cable. Composite
video is used for video distribution, usually RG-6 or better.

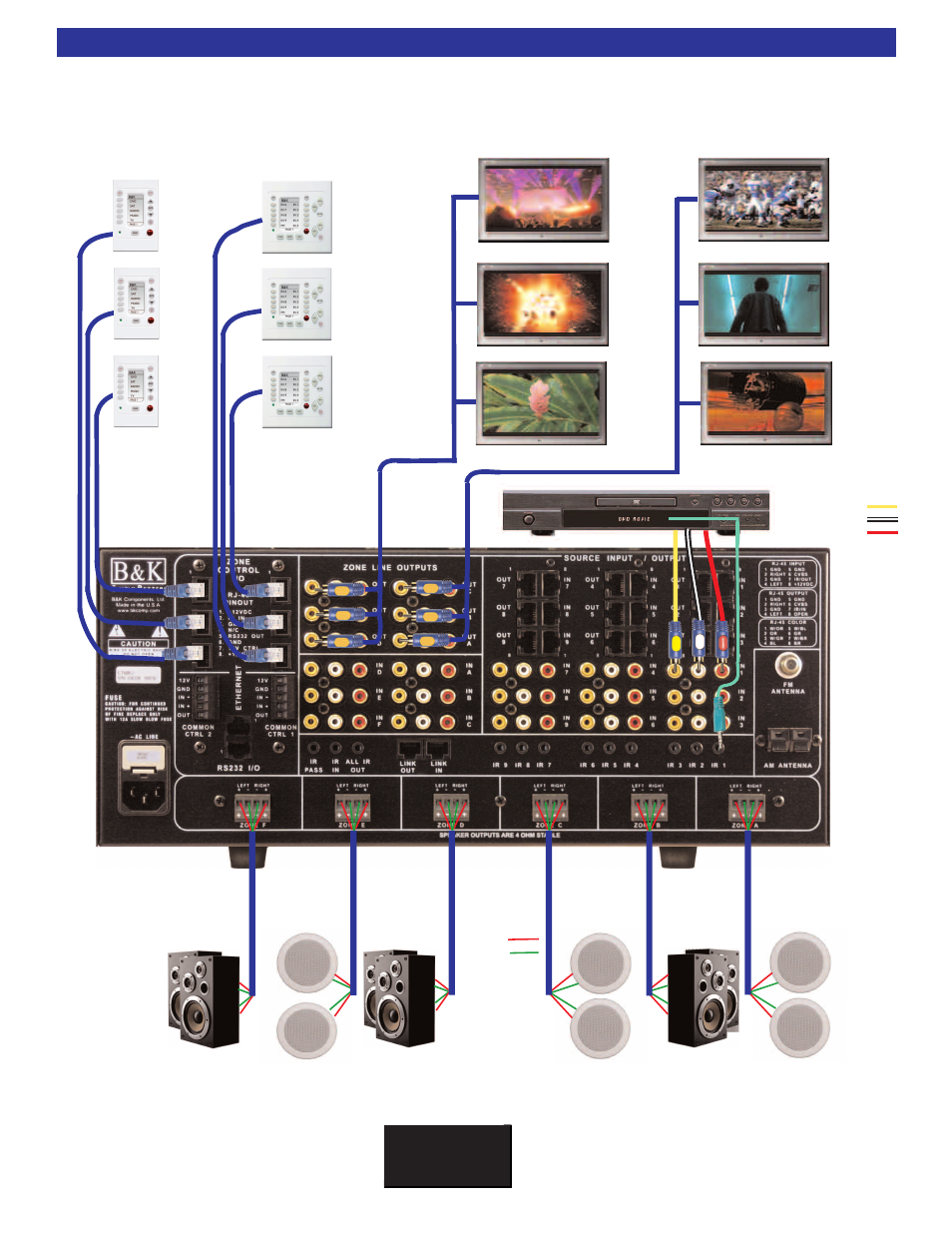

Basic CT Receiver & Keypad System Hookup
Zone C
Keypad
Zone B
Keypad
Zone A
Keypad
Zone E
Speakers
Zone A
Speakers
Zone C
Speakers
Zone F
Speakers
Zone
Speaker
Connections
Zone B
Speakers
Zone D
Speakers
Zone F
Keypad
Zone E
Keypad
Zone D
Keypad
Composite Video
Left Audio
Right Audio
Positive
Negative
Zone F
Monitor
Zone C
Monitor
Zone B
Monitor
Zone A
Monitor
Zone E
Monitor
Zone D
Monitor
