20
POWER SUPPLY IS CURRENT LIMITED TO 1 AMP PER EVERY THREE ZONES
The six zone receivers have two zone/controller cards, each is identical to the single controller card in a three
zone receiver. Each card has its own independent 1 amp power supply with built in current limiting protection.
It is not allowed to draw more than 1 amp from each of the cards (a card is the vertical strip of zone and com-
mon control connections). The control outputs are current limited to 200mA.
The CT 300.3 has one power supply card for keypads, IR sensors and 12VDC control outs. Anything con-
nected to the +12V zone keypad output, a zone control out or a common control out must have its power
consumption noted and added up. The total must not draw more than 1 amp for a CT 300.3.
CK 1.2 Keypad Connections
B K
&
S B
IMPLY ETTER!

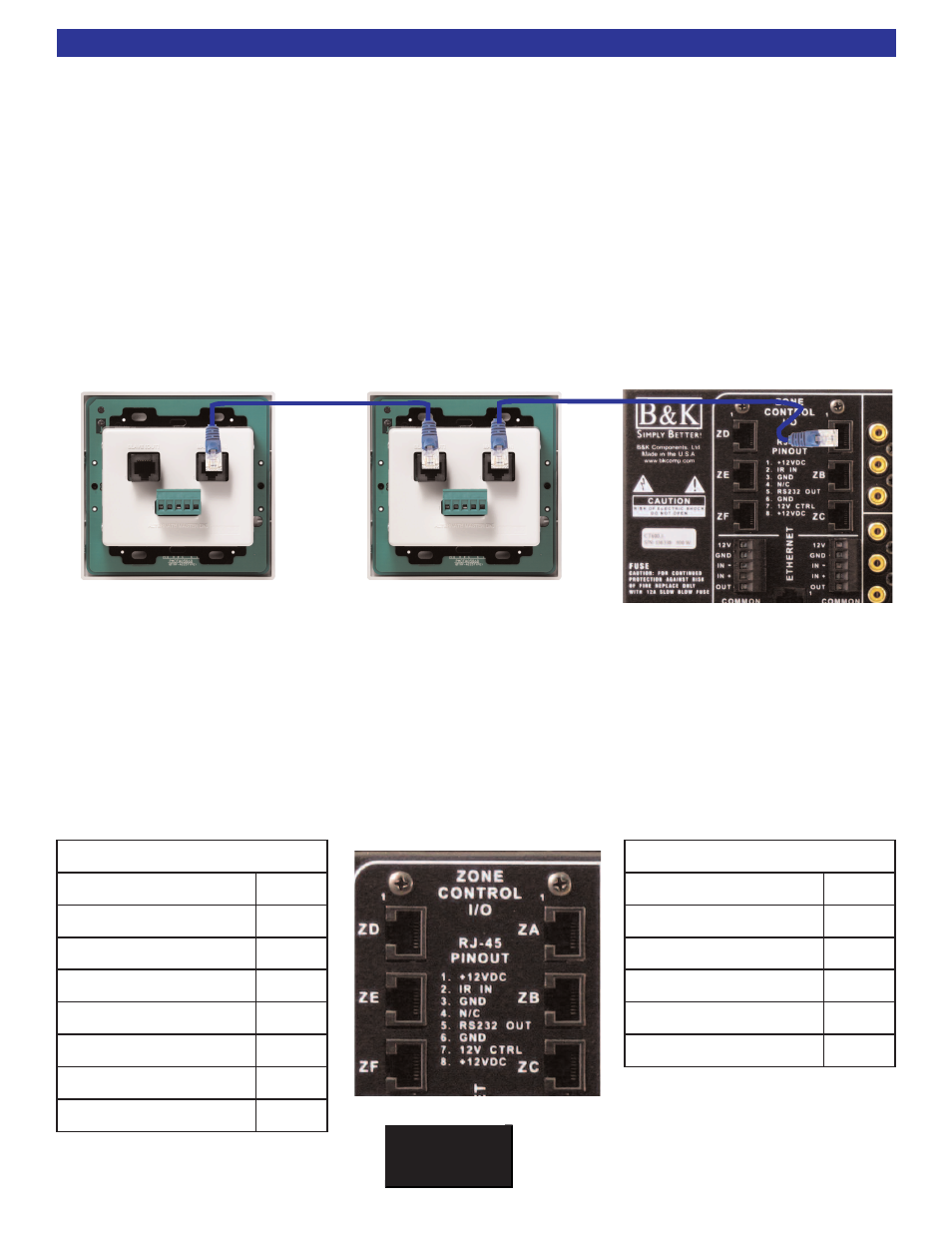

Adding Additional Keypads in the Same Zone
When rooms are interconnected or are open to each other (for example: interconnecting family room, kitchen,
and dining areas are common in many homes) you may opt to expand a zone to include several rooms.
Many keypads may be connected in a daisy chain from the master keypad in that zone. The master is the
keypad which is home run back to the CT Receiver. To daisy chain keypads, simply connect a straight
through CAT-5 cable terminated into RJ-45 between the two keypads. All the chained keypads need be pro-
grammed separately . Daisy-chained keypads may be programmed for independent zone control using the
appropriate code-set.
The home run (master) keypad is connected using the MASTER [IN] on the keypad back panel. From the
Master Keypad's SLAVE[OUT] connect to the second keypad's MASTER [IN]. You may continue the daisy-
chain to as many as four keypads per zone control terminal. When programming daisy chained keypads,
each keypad must be programmed separately. Do not program a slaved keypad while it is physically
connected to the master keypad.
LEFT CONTROLLER CARD
Fam Room Keypad 75 mA
Fam Room Sensor 50 mA
Family Rm Screen Relay 200 mA
Kitchen Keypad 75 mA
Bedroom Keypad 75 mA
Bedroom TV Lift 200 mA
TOTAL 675 mA
RIGHT CONTROLLER CARD
Living Room Keypad 75 mA
Patio Keypad 75 mA
Den Keypad 75 mA
Den Sensor 50 mA
TOTAL 275 mA
