Preset Editor

Editing Presets

1. Selecting a Preset
Selecting a preset to edit is done by clicking on the number of the preset.
2. Selecting Preset Parameters
Select Volume, Bass Level, Treble Level, and EQ settings for each preset.
3. Choosing a source
Select the audio input (or AM or FM) and/or Video input. When it is desired to set audio and video together,
check the “View Source” button. To separate audio and video, check “View Audio/Video” button and select
an audio source and a video source.
4. Am/FM Frequency
When selecting an AM or FM frequency, move the indicator to the desired frequency or click on the box to
the right of the indicator and type in the desired frequency.
5. Zone Favorites
Once all of other parameters have been set, it must be decided which zone(s) the preset is to be made
available in. Zone Favorite are used to define what presets are available in which zones. By “checking” a
zone(s), the preset configured will be available for use in that zone(s) when using the Channel (+) and
Channel (-) commands for that zone. Example: If you do not want Preset #1 to be accessed when cycling
through the presets using the Channel (+) and (-) commands in zone A then uncheck the box for zone A.
6. Saving
After a preset has been configured, simply click on Save. This will save only the preset that is highlighted.
Note: When finished configuring all presets, remember to save the Preset File (.bkp). See previous page.

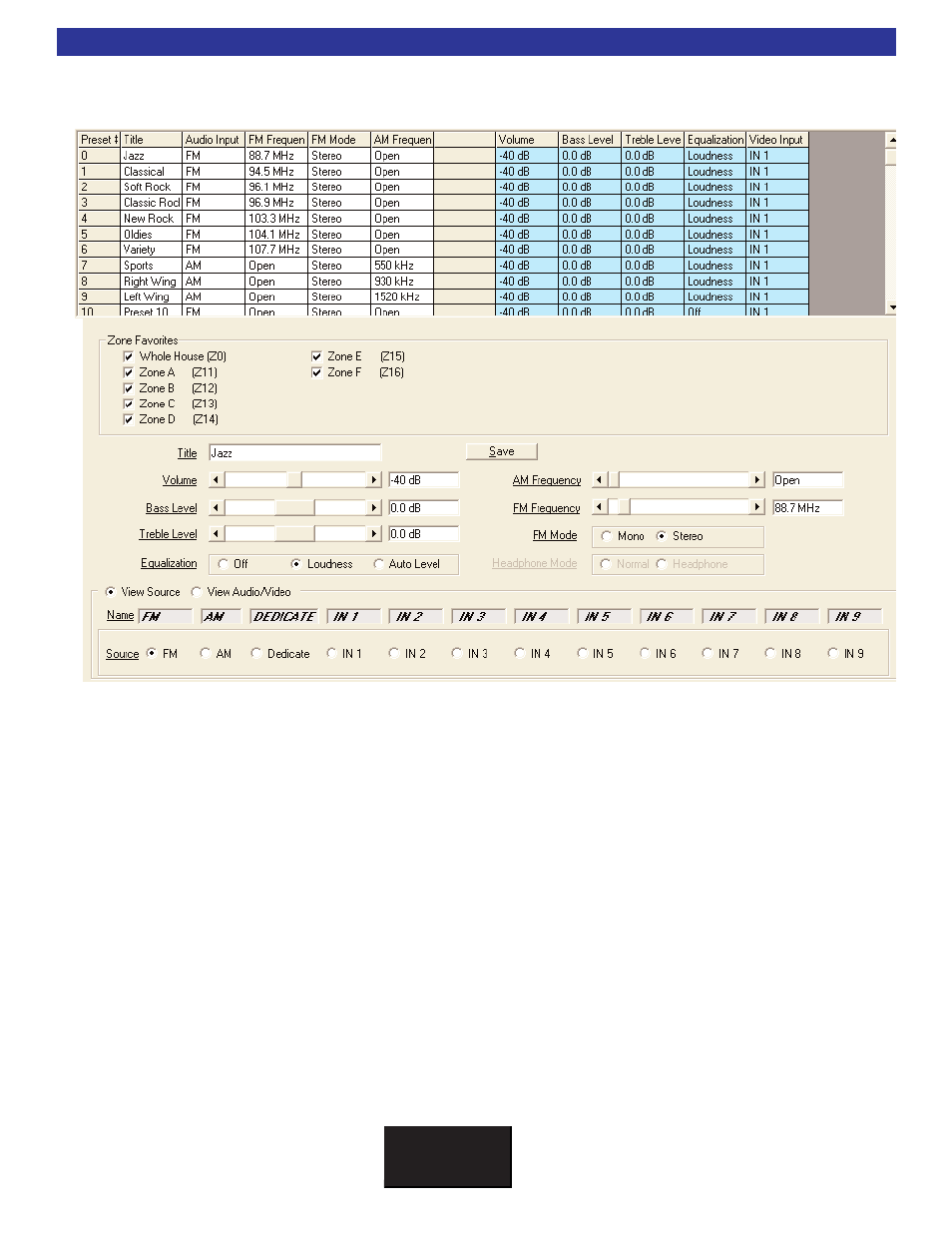

The Preset Editor Window

This shows the presets contained within the CT Receiver preset editor file.
