Zone Line Outputs
Composite video outputs supply video to monitors in each zone. Zone A's video output provides access to
the on screen display, which is used for unit setup. The setup menu is only accessible through Zone A’s
composite video output. The video signal will shut off when the zone is shut off.

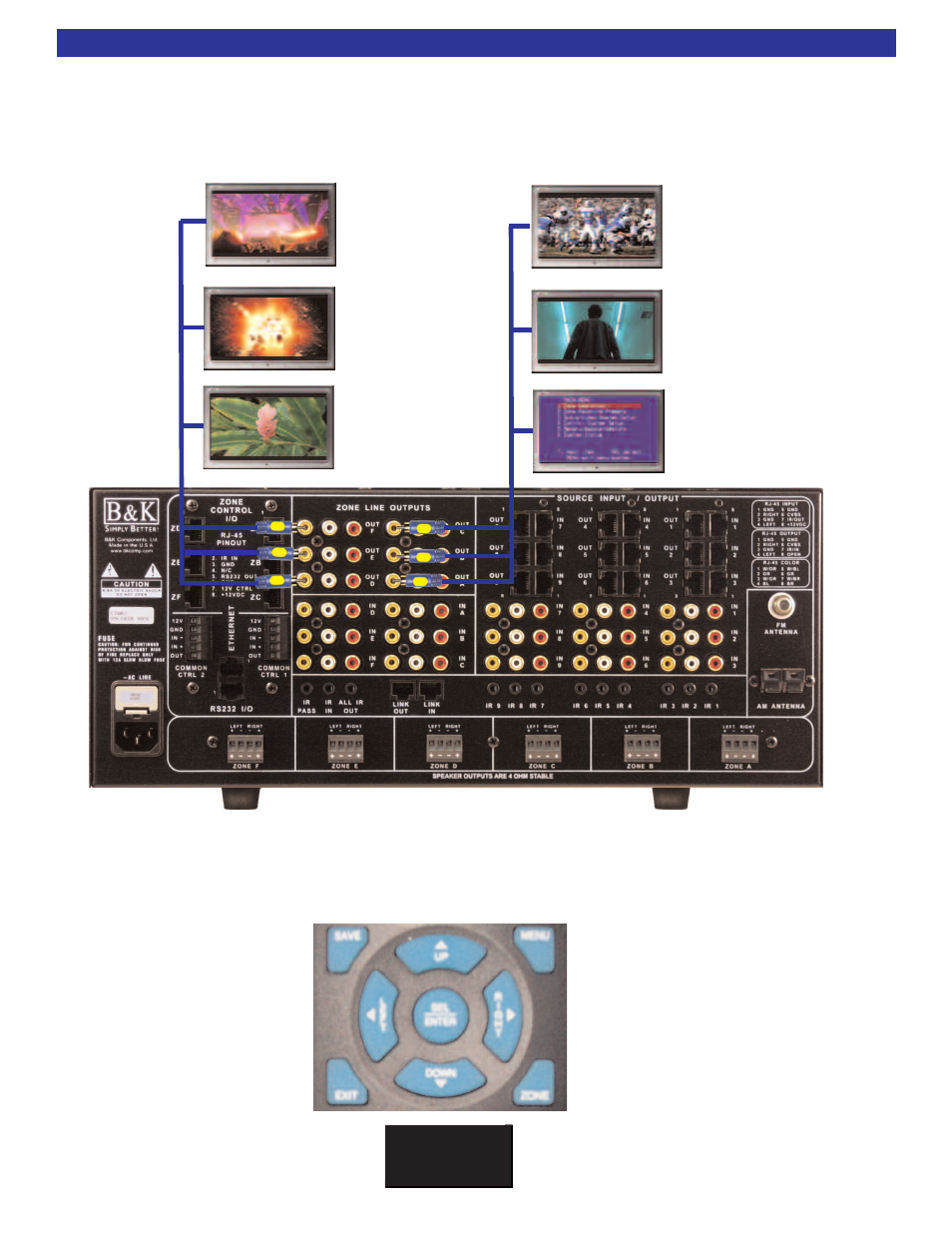

Composite Video Outputs
Zone F
Monitor
Zone C
Monitor
Zone B
Monitor
Zone A
Monitor
Zone E
Monitor
Zone D
Monitor
Menu System
To access the menu, make sure you have a monitor coming from the zone A video out. Then push MENU on
the MZ-128 remote. Use the UP, DOWN, LEFT, RIGHT and SEL buttons in the center of the remote along
with the number keys to go through the menu functions.
