1. Groups: A maximum of 18 groups for each CT Receiver labeled a - r. Group 0 may not be changed, it
is pre-programmed with code-set 0-0-0 (controls ALL CT Zones). Each group may control any or all zones
within one CT Receiver. If multiple CT’s are going to utilize the same code for a group spread across multiple
CT Receivers, that code-set must be programmed into each CT receiver.
2. Code-Sets: For each group, assign a code-set between 001 and 127. B & K recommends the follow-
ing: in the first CT Receiver assign Code-Sets 011 to 016 to each individual zone A-F (or Code-Sets 011-013
for each individual zones A-C on a 3 zone Receiver). When working with a system with more than one CT,
assign code-sets 021 to 026 to the second CT, 031 to 036 to the third and so on.
3. Title: Name the group (zone) with a name that will make sense to the client. If the group controls just
one zone, name it for that zone. If it will control several zones, name it intuitively for the area it controls.
4. Hardware Zones:

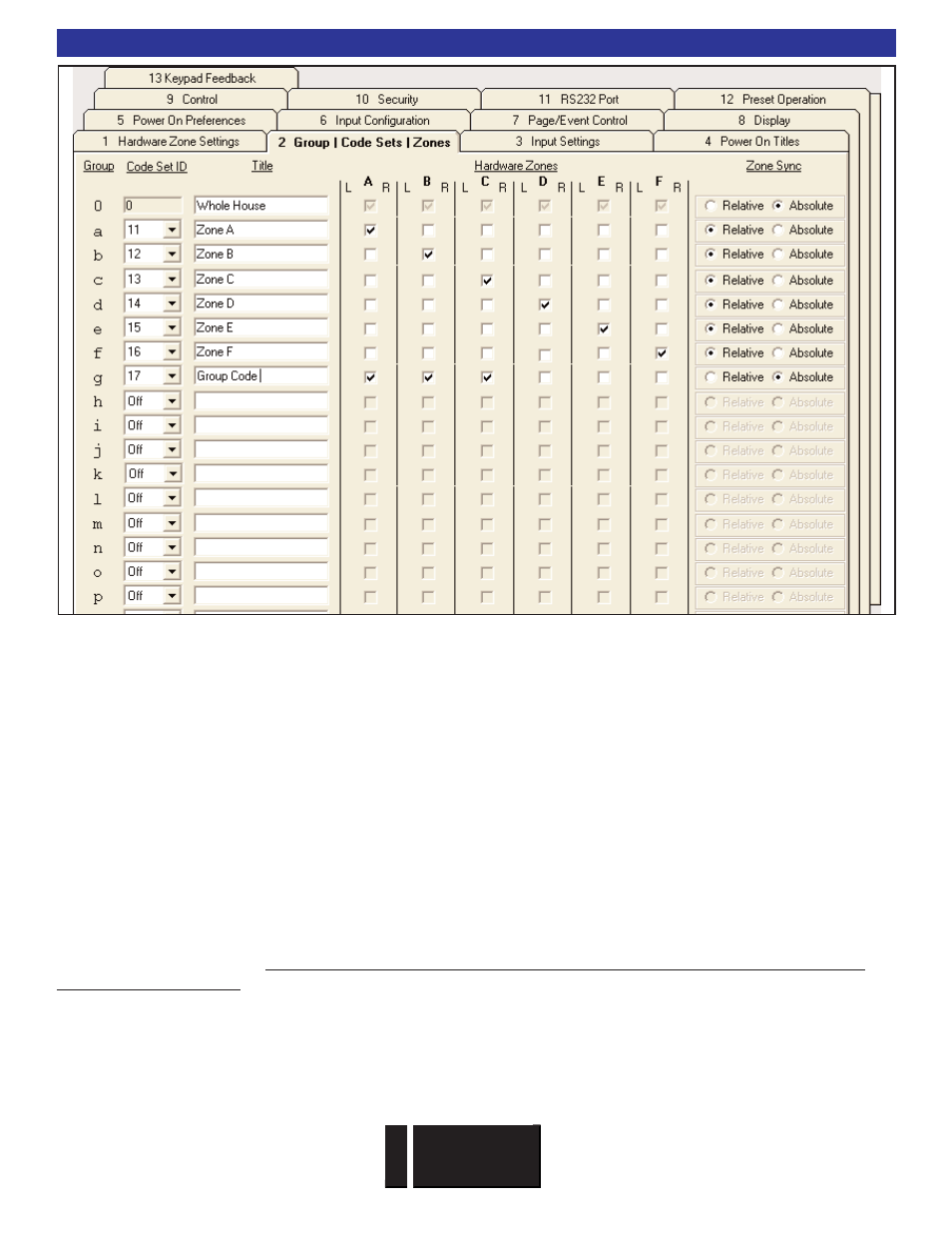

Work by row, check the boxes for zones that will make up each group. In the fig-
ure above, code 0-1-7 has been assigned to control zones A, B, and C while codes 0-1-1 through 0-1-6 con-
trol each zone individually . ID128 may not be used for group control. It should only be used from a keypad or
remote to control a zone.
5. Absolute/Relative: These settings decipher how volume will be controlled among grouped zones.
Absolute: will sync all volumes to the volume level of the zone from which the volume command was
received before adjusting up or down.
Relative: control will adjust volume levels up or down without syncing to the same volume level.
Groups / Code Sets / Zones - Tab 2
