Buffered Outputs
B K
&
S B
IMPLY ETTER!
15
Buffered Outputs
Digital Audio Connection

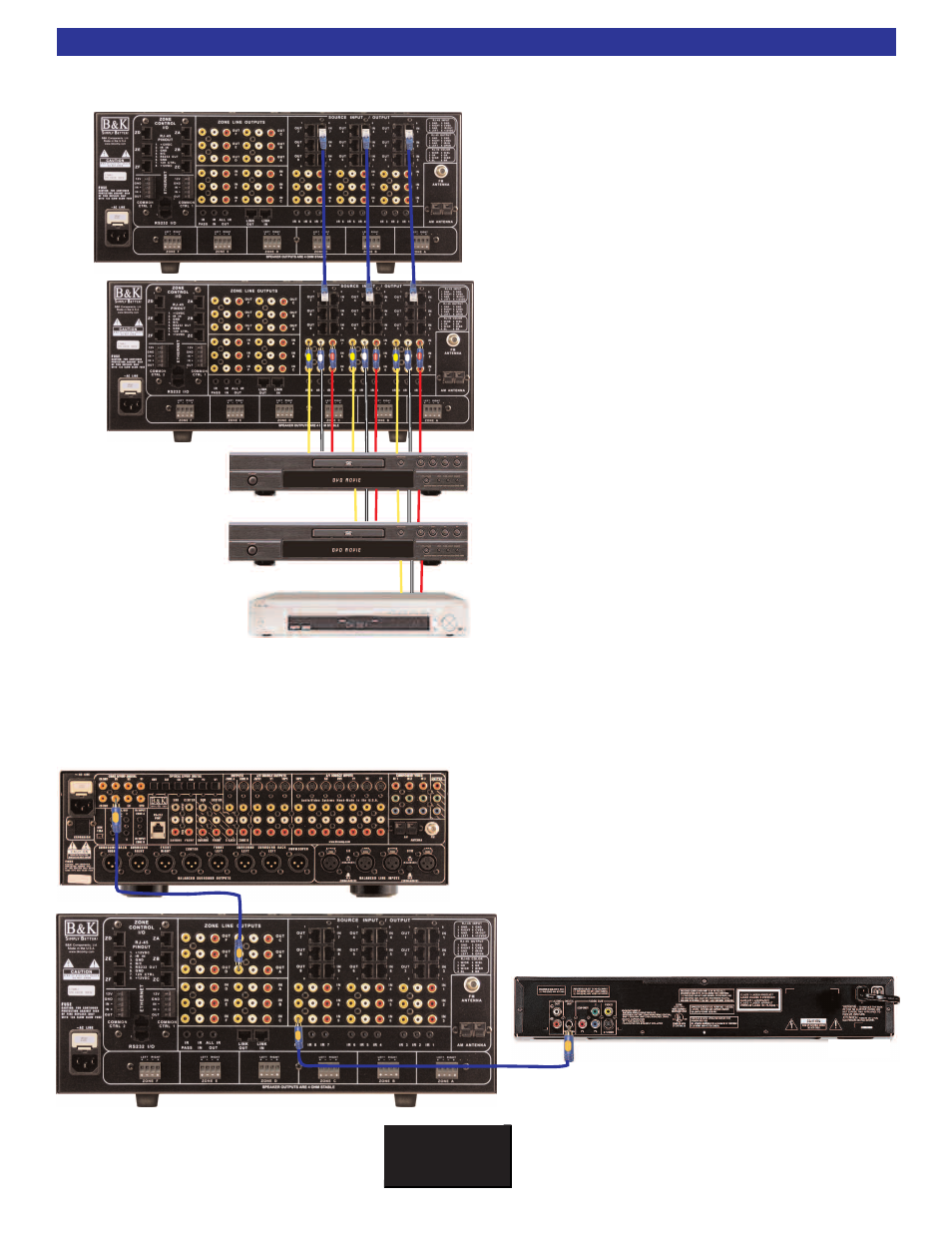

Line level, impedance matched, (buffered) outputs are
provided in order to pass source signals from one unit
to another. Each of the 9 shared A/V inputs has a
buffered output. These outputs are buffered in order
to minimize signal degradation as the signal passes
from unit to unit in series. Essentially they eliminate
the need for Y-cables. The Buffered outputs will pri-
marily be used for sharing of sources between other
whole house units or home theater systems.
When video is not needed to be routed, the CT Receiver composite video inputs/outputs may be used to route
coax digital audio. Simply connect the digital coax connection from the source device into the shared or dedi-
cated video inputs. The CT zone video outputs will now switch digital audio to a surround processor.
Source
Ref 50 S2
Note: When setting up a CT System, connect all
audio/video inputs and respective infrared emitters to
the first CT Receiver. Expand the system by linking
multiple CT Receivers with standard CAT-5 cabling.
Connect one CAT-5 cable per shared input (9 total)
and 1 CAT-5 cable from “Link Out” to “Link In” See
page 25.
