70
Control System Menu
Zone Code-Sets/Groups and Group Titles continued...

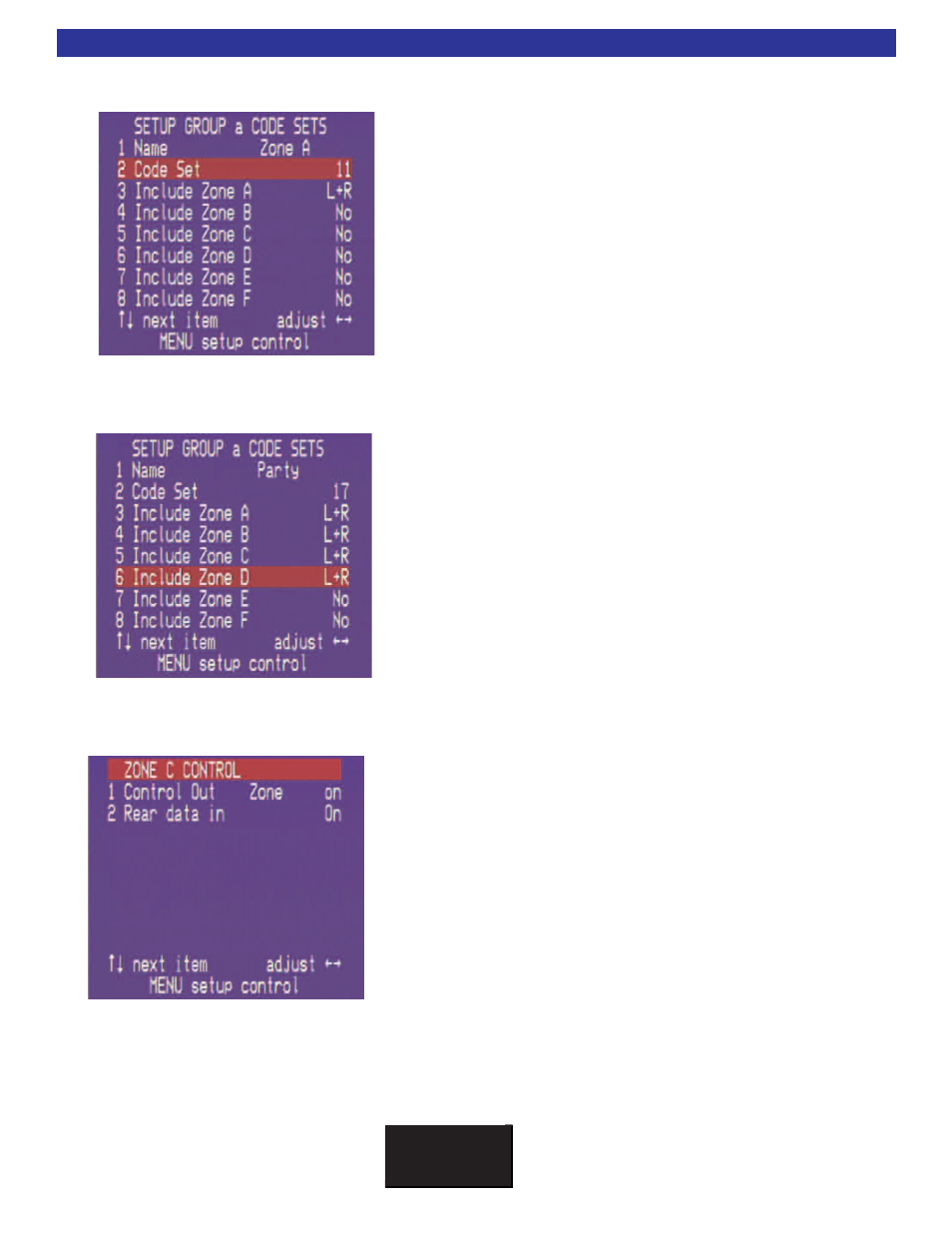

Once the name has been entered, use the Up/Down
keys to select a Code-Set.
Use the Left/Right keys to select one of the available
128 code-sets.
Move Up/Down to include the hardware zones for this
group. In this example Group A consists of only one
hardware zone, Zone A.
If you would like a group to contain more than one hardware
zone (as shown to the left) adjust each hardware zone to
include Left, Right, or Left + Right. When additional hardware
zones are included they are all controlled by the code-set, in this
case code 017.
Zone Control I/O
Use the Left/Right keys to select the zone. Use the Up/Down
keys to select the setting to adjust. Use the Left/Right keys to
pick from the available options.
Control Out will determine when the 12VDC 200mA control volt-
age is sent for each zone. It is labeled on the back panel under
the Zone Control I/O as 12V CTRL.
Rear data in controls the IR data input for each zone. It is
labeled on the back panel under the Zone Control I/O as “DATA
IN.
Specifications for the control settings may be found on page 48.
