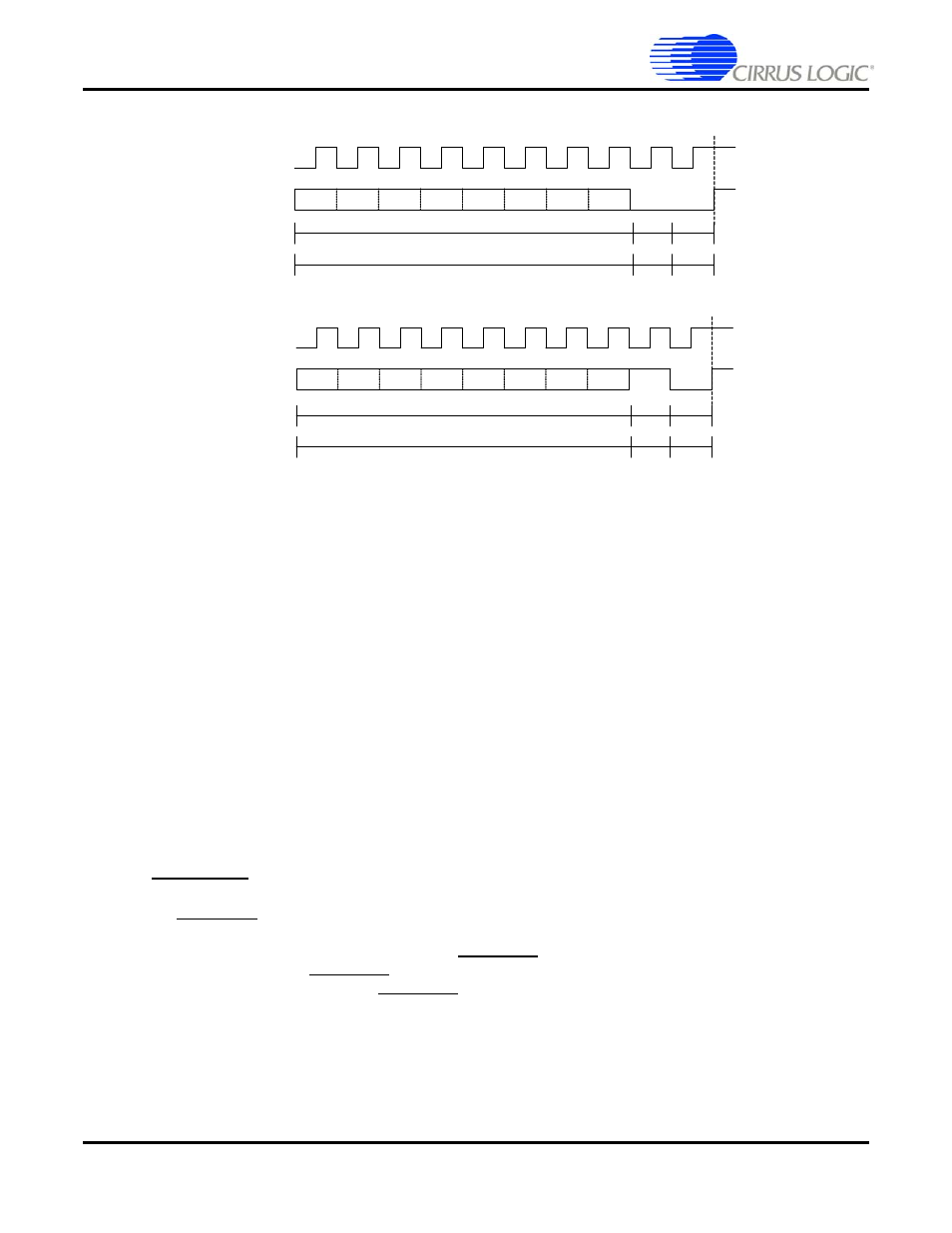

Figure 3-7. Stop Condition with ACK and NACK
If a slave cannot receive or transmit another complete byte of data until it has performed some other
function, for example servicing an internal interrupt, it can hold the SCP1_CLK line low to force the master
into a wait state. Data transfer then continues when the slave is ready for another byte of data and
releases SCP1_CLK.
3.3.3 I
2
C Messaging
Messaging to the CS4953xx using the I
2
C bus requires usage of all the information provided in the above
I
2
C
on page 2 and
page 4. Every I
2
C transaction to the CS4953xx will involve 4-byte words used for control and application
image download. A detailed description of the serial SPI communication mode is provided in this section.
This includes:
•
A flow diagram and description for a serial I
2
C write
•
A flow diagram and description for a serial I
2
C read
3.3.3.1 SCP1_BSY Behavior
The SCP1_BSY signal is not part of the I
2
C protocol, but it is provided so that the slave can signal to the
master that it cannot receive any more data. It performs the same function as that of holding SCP1_CLK
low to halt transmission. A falling edge of the SCP1_BSY signal indicates the master must halt
transmission. Once the SCP1_BSY signal goes high, the suspended transaction may continue. It is
important for the host to obey the SCP1_BSY pin status for proper communication with the DSP.
Stop
SCP1_CLK
SCP1_SDA
Data Byte
ACK
M
S
M
Write
Read
S
M
M
Stop
SCP1_CLK
SCP1_SDA
Data Byte
NACK
M
S
M
Write
Read
S
M
M
M = Master Drives SDA
S = Slave Drives SDA
