Bottom (with the bottom cover) – Sony VPCSE23FX User Manual
Page 18
18
Getting Started >
Locating Controls and Ports

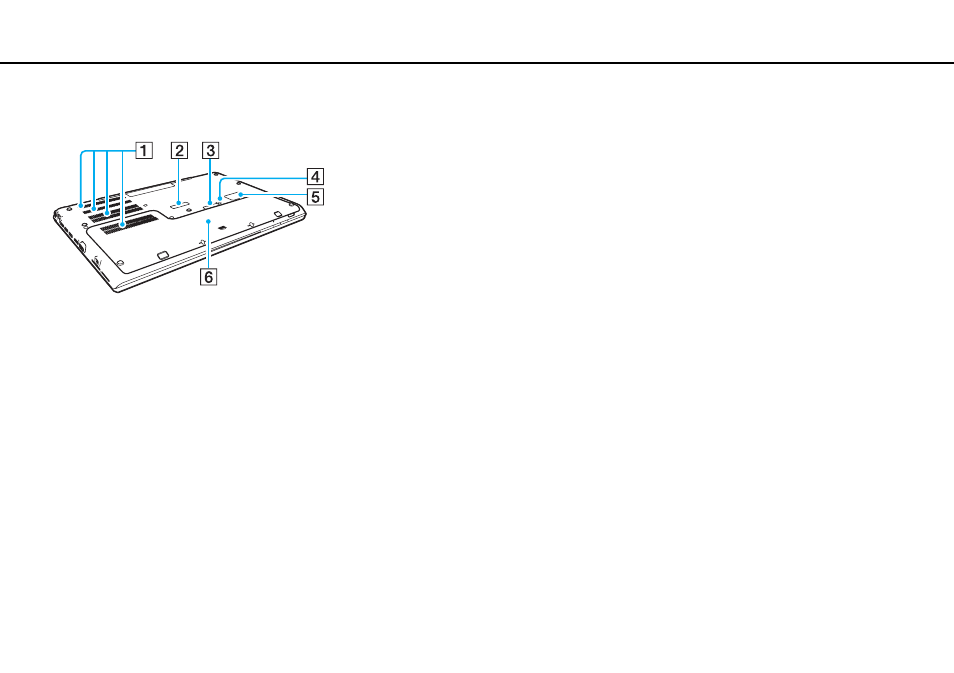

Bottom (with the bottom cover)
A
Air vents
B
Port replicator connector cover
C
Extended battery pack connector cover
*1
D
Battery off button
,
E
SIM card cover
*2
F
Bottom cover
*1
For detailed instructions on how to attach an extended battery pack, see the
manual that came with your extended battery pack.
While the extended battery pack is attached to your computer, be sure to
keep the removed connector cover for future use.
*2
On selected models only.
This manual is related to the following products:
- VPCSE25FX VPCSA4SGX VPCSE2LFX VPCSA4GFX VPCSE2EFX VPCSB490X VPCSB4AFX VPCSE2NFX VPCSC41FM VPCSA4MFY VPCSE2SFX VPCSA4FGX VPCSA4EGX VPCSA45GX VPCSB4CFX VPCSA4HGX VPCSE2DGX VPCSE290X VPCSC4AFM VPCSE2AGX VPCSA4BGX VPCSE2RFX VPCSE2KGX VPCSA4CFX VPCSA41FX VPCSA490X VPCSA43FX VPCSE2MFY VPCSE2JFX VPCSE27FX VPCSE2HFX VPCSB4DFX VPCSA4JFX VPCSA4DFX VPCSA4AGX
