Chapter 6: Downloading AT-S65 Management Software Updates
94
6. From the HyperTerminal main window, select Send File from the
Transfer menu, as shown in Figure 48.

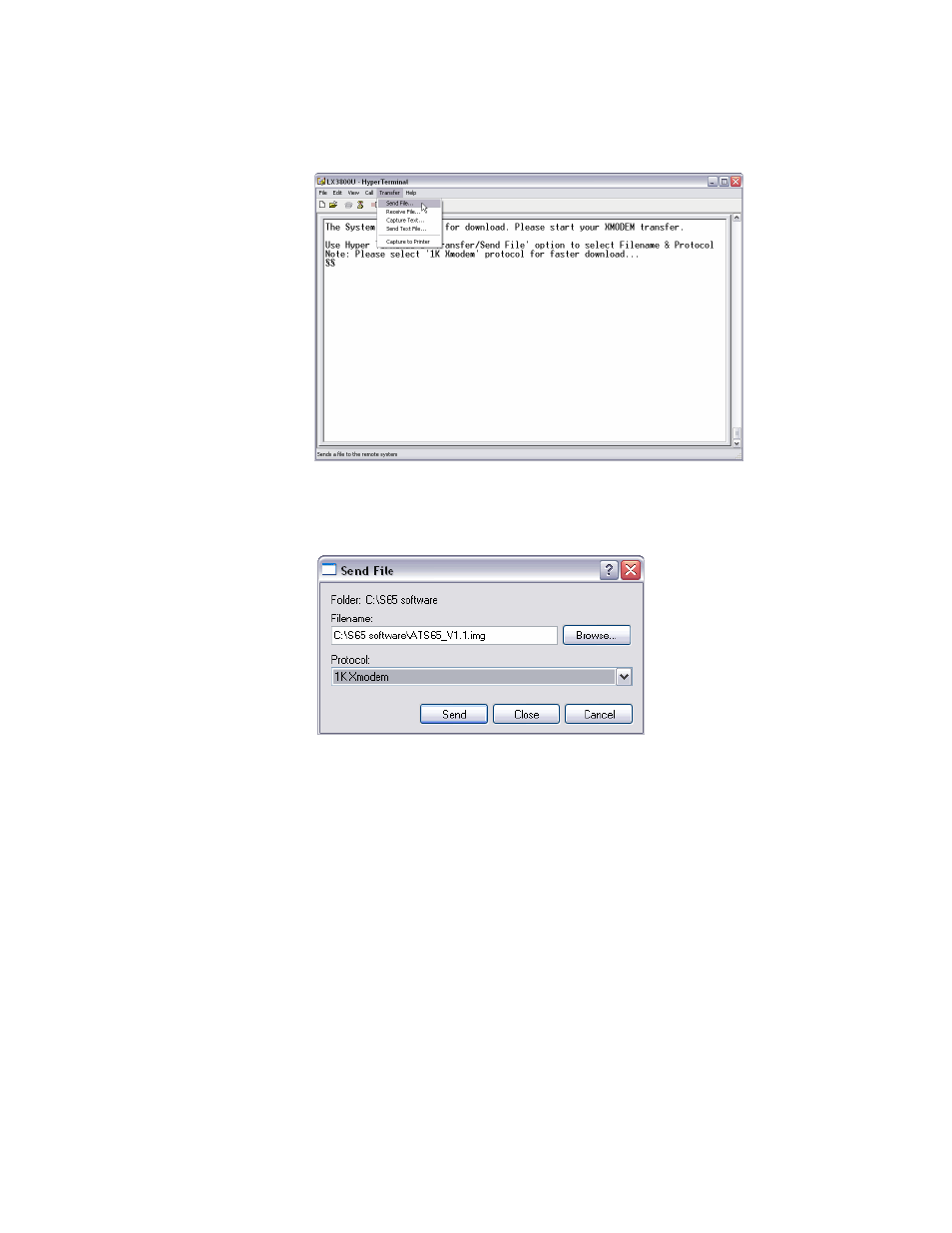

Figure 48. HyperTerminal Window
The Send File window is shown in Figure 49.
Figure 49. Send File Window
7. Click Browse and specify the location and file name of the image file
to be downloaded onto the chassis.
8. Click in the Protocol field and select as the transfer protocol either
Xmodem or, for a faster download, 1K Xmodem.
9. Click Send.
The software immediately begins downloading onto the chassis. The
Xmodem File Send window shown in Figure 50 on page 95 displays
