AT-S105 Management Software Web Browser User’s Guide
95
The System Priority is a preassigned value that you cannot alter. This
value applies to the switch. See “LACP System Priority” on page 90.
The System ID is a MAC address value assigned to the switch. You
cannot change this value.
Key 1 - Key 10
Indicates the ID number of the trunk (aggregation group). See “Key
Parameter” on page 90 for more information.
4. Use the procedure given in “Creating a Port Trunk” on page 79 to
configure Trunk ID 1 as Active for ports 5, 7, 9, and 11 (see “Creating
a Port Trunk” on page 79).
The LACP Group Status Page is updated. An example of these
updates is shown in Figure 30 before the trunking cables are installed.

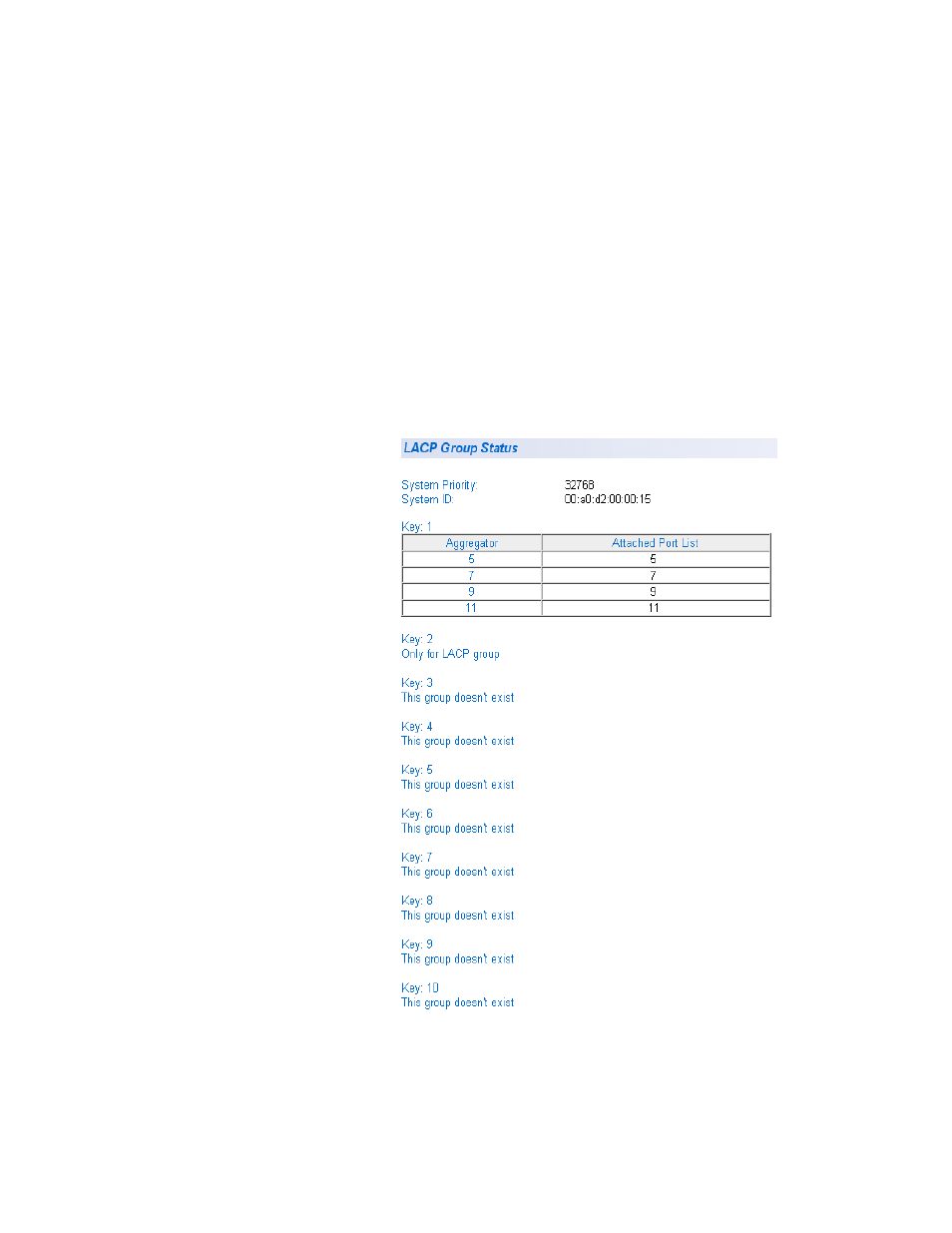

Figure 30. LACP Group Status Page with No Cables Connected
You can see that each port still has an individual Aggregator assigned
to it.
